OBO Bettermann 7205570 TE-FH 520 Fuse holder inset Suitable for Micro fuse 5 x 20 mm 1 pc(s)
Product type
Fuse holder inset
Mounting type
Enclosure
Suitable for
Micro fuse 5 x 20 mm
Cross section
2.5 mm²
Connection
Screws
EAN:
Part number:
Item no:
Technical specifications
- Mounting type = case mounting
- Product type
Fuse holder inset
- Connection
Screws
- Seal
Bayonet
- Mounting type
Enclosure
- Suitable for
Micro fuse 5 x 20 mm
- Cross section
2.5 mm²
- Number of fuses
1
- Weight
19 g
- Width
110 mm
- Height
24 mm
- Content
1 pc(s)

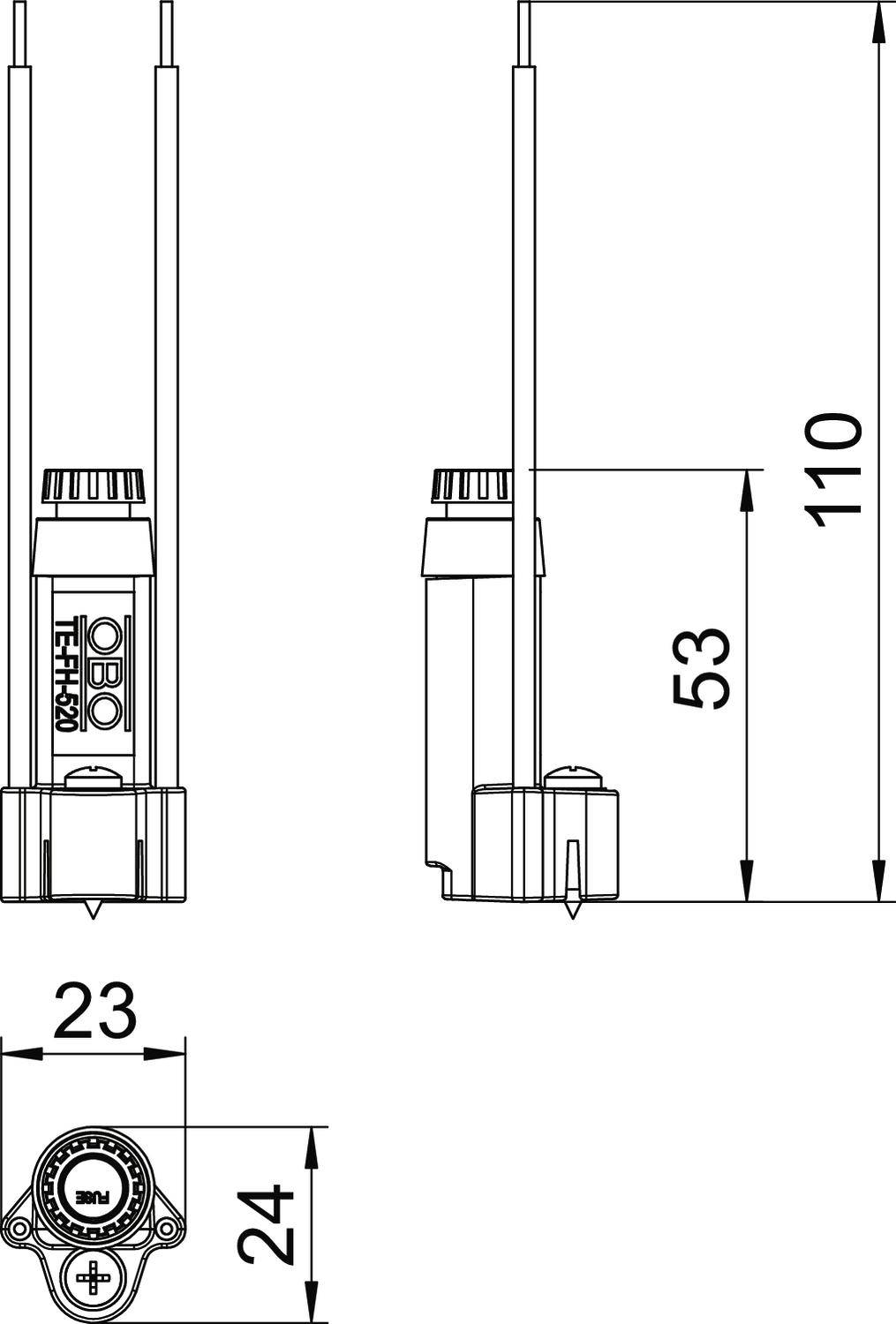

- Dim
(W x H x D) 110 x 24 x 23 mm
- Type
TE-FH 520
- Depth
23 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957992 OBO Bettermann 7205570 TE-FH 520 Fuse holder inset Suitable for Micro fuse 5 x 20 mm 1 pc(s)
Description
Fuse holder with bayonet lock for fine-wire fuse of the dimensions 5 x 20 mm. Function receives connection wires with a nominal cross section of 2.5 mm², ready-stripped. For mounting on the exposed dome in junction box of the FireBox T-series with the help of the accompanying screw.
This text is machine translated.
This text is machine translated.
