OBO Bettermann 7216460 End piece (W x H) 314 mm x 105 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = left/right
- Fire resistance class I-installation channel = 120
- External Height = 105 mm
- Exterior width = 314 mm
- The inner width = 260 mm
- Number of beflammbaren pages = 2
- Sleeve = Steel
- Surface = galvanised
- Color = other
- Product type
End piece
- Component
Endpiece
- Content
1 pc(s)
- Dim
(W x H) 314 mm x 105 mm
- Width
314 mm
- Height
105 mm
- External width
314 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962720 OBO Bettermann 7216460 End piece (W x H) 314 mm x 105 mm 1 pc(s)
Description

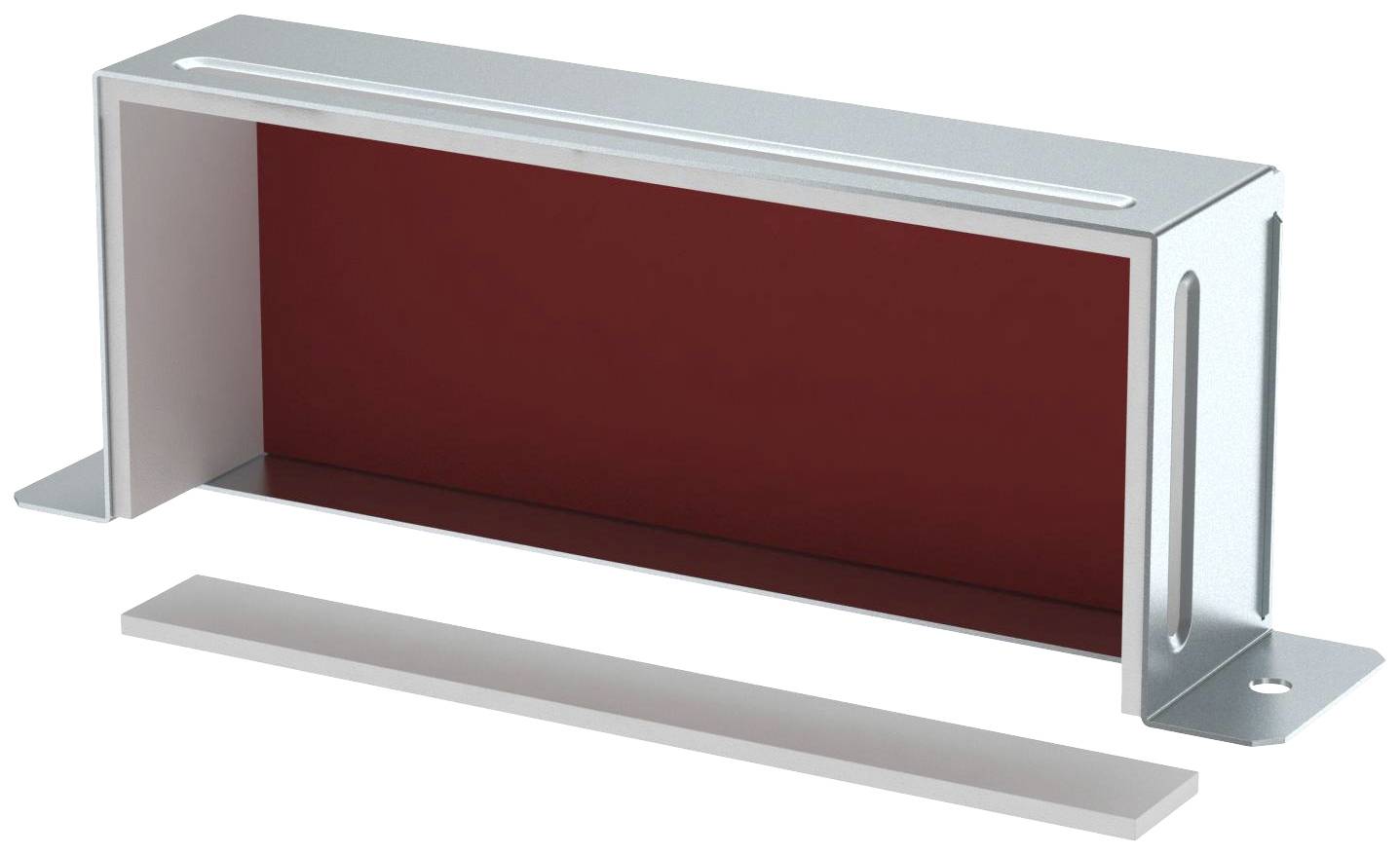

End piece for smoke tight closure of the BSKM 1025 in direct wall and ceiling mounting. In connection with support BSKM-AD 1025 (to be ordered separately) can also be used even at the end piece of suspended mounting. Including seals for sealing the joints.
