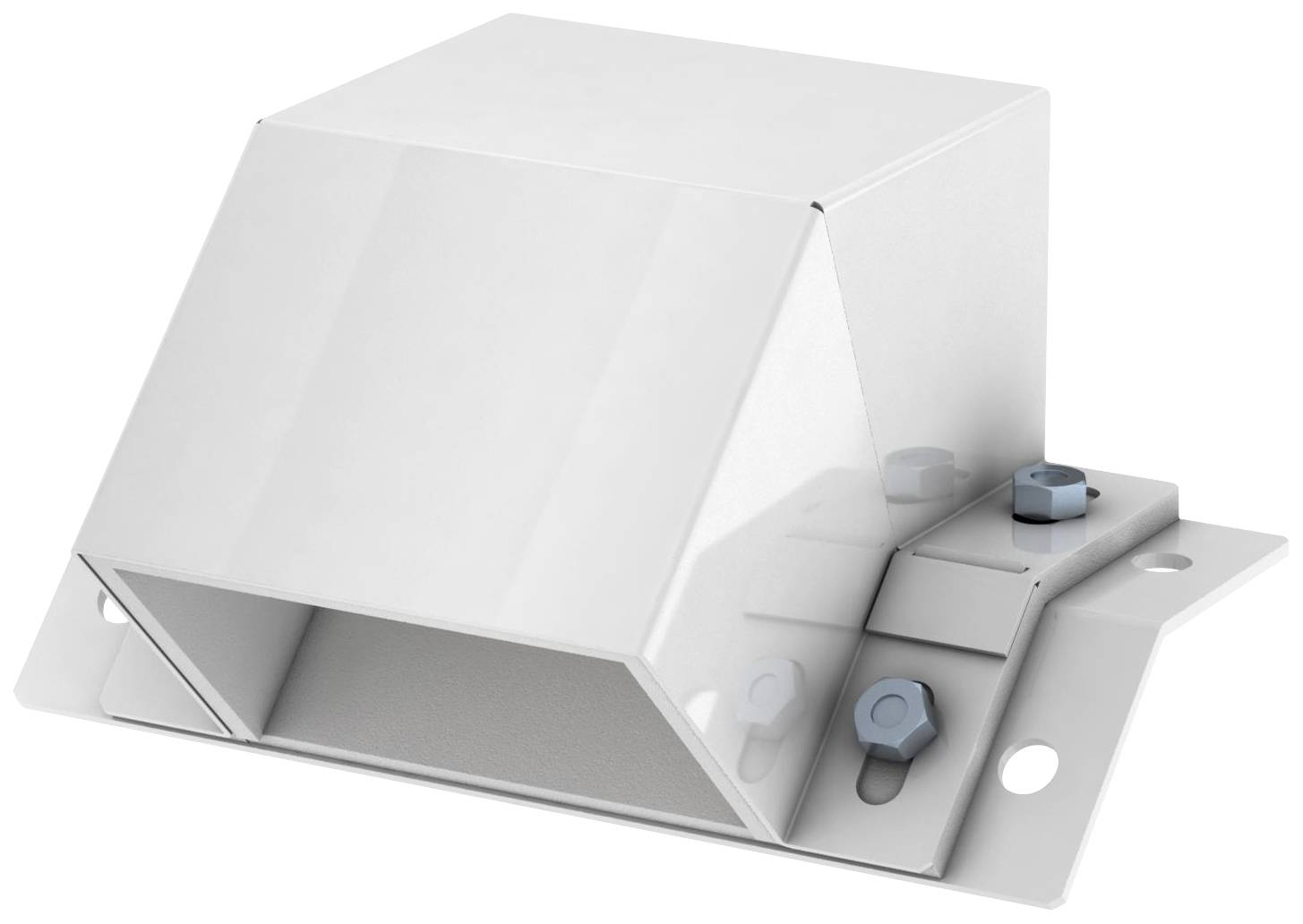

OBO Bettermann 7216611 Fire rated cable trunking (W x H) 220 mm x 110 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Angle = 45°
- Fire resistance class I-installation channel = 120
- External Height = 110 mm
- Exterior width = 220 mm
- The inner width = 117 mm
- Number of beflammbaren pages = 3
- Sleeve = Steel
- Surface = galvanised
- RAL-number = 9010
- Dividers possible = No
- With perforated base = No
- Cover Mounting = other
- Product type
Fire rated cable trunking
- Component
Wiring duct
- Content
1 pc(s)

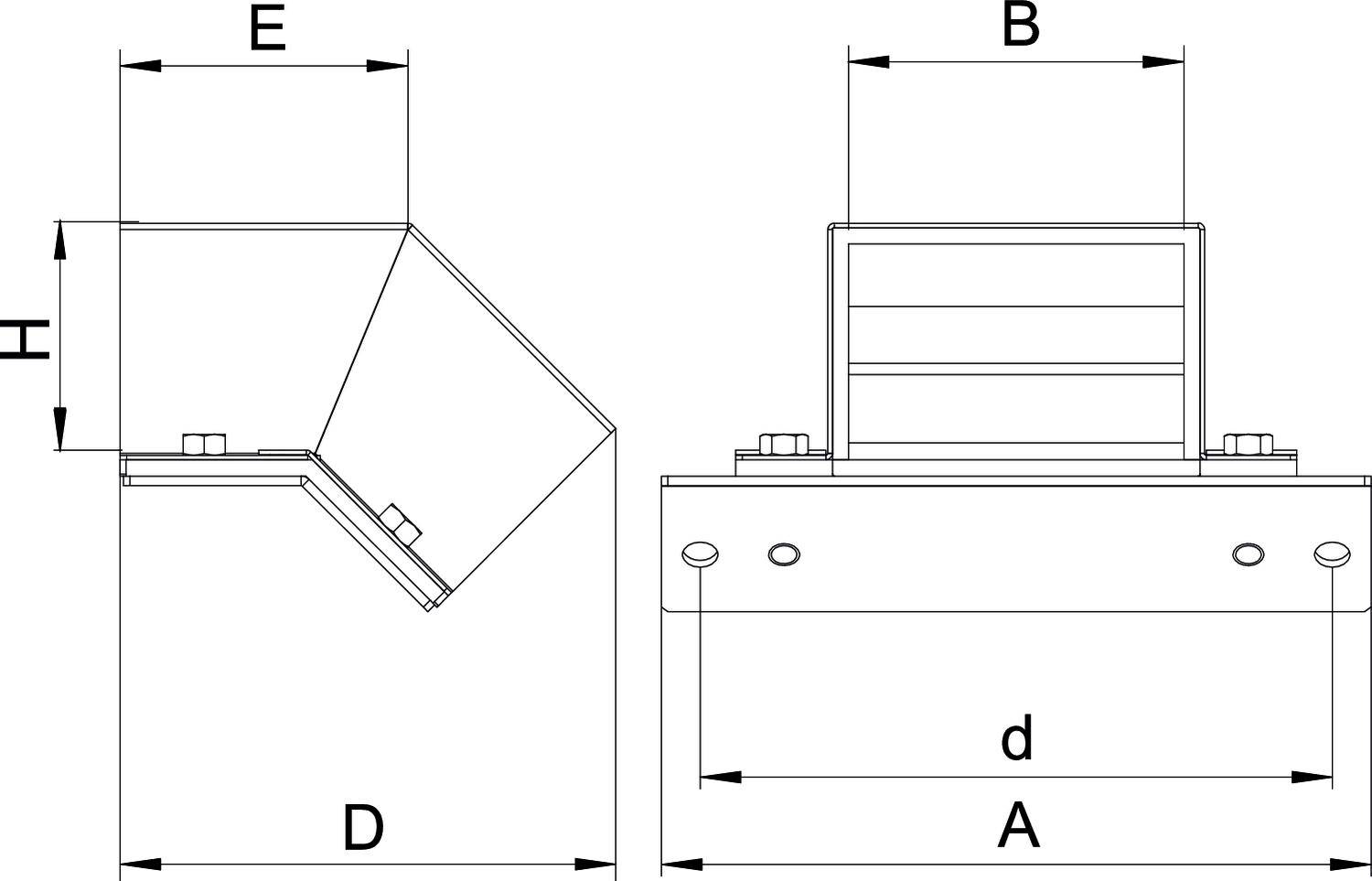

- Dim
(W x H x D) 220 x 110 x 110 mm
- Width
220 mm
- Height
110 mm
- Depth
110 mm
- External width
220 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966054 OBO Bettermann 7216611 Fire rated cable trunking (W x H) 220 mm x 110 mm 1 pc(s)
Description
Vertical sheets in falling design for the manufacture of vertical straddle with suspended mounting of the BSKM 0711, with recording option for threaded rods M10. Including seals and nuts to connect the channel routes and for sealing the joints.
