OBO Bettermann 7216636 Fire rated cable trunking (W x H) 314 mm x 200 mm 1 pc(s)
EAN:
Part number:
Item no:

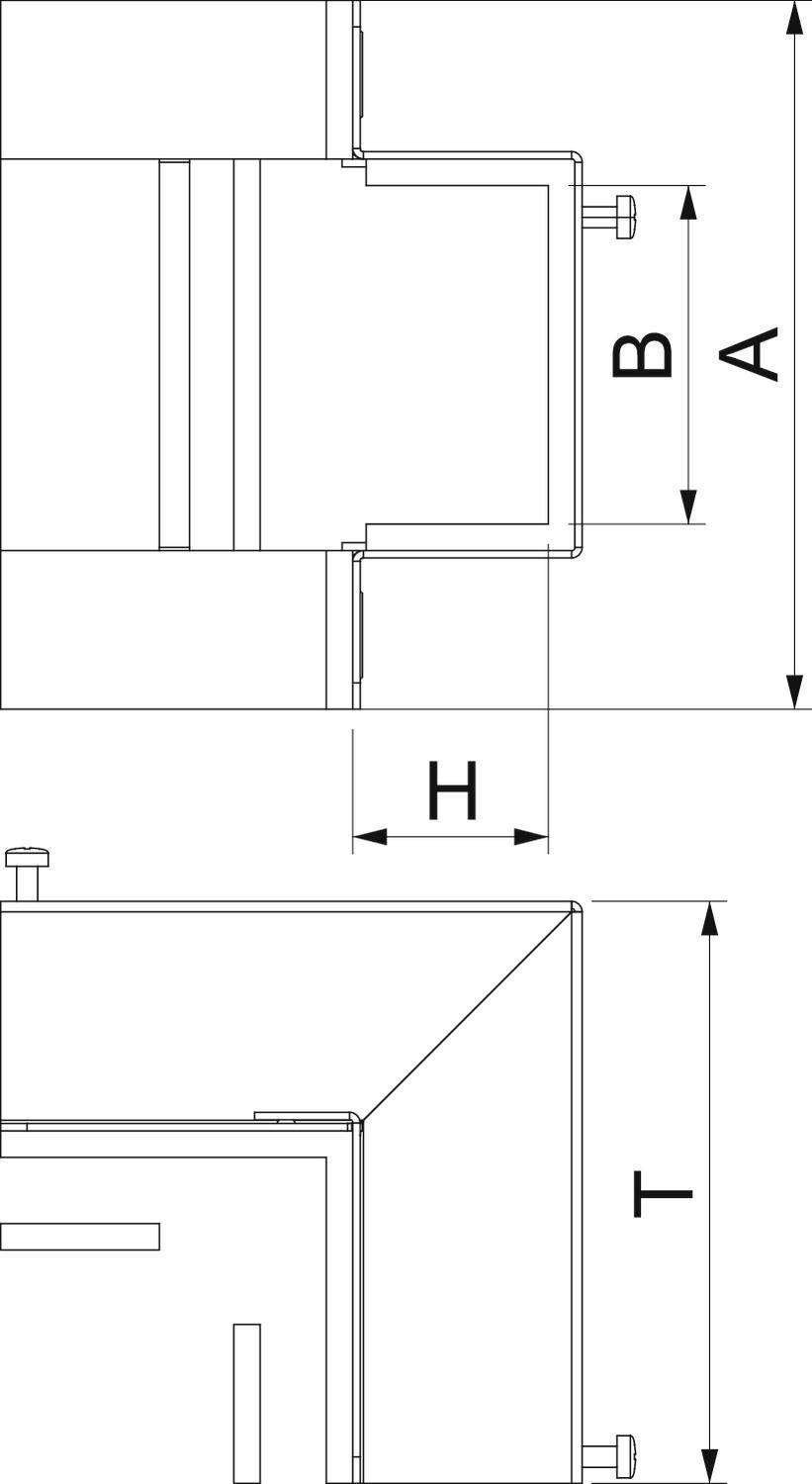

Technical specifications
- Angle = 90°
- Fire resistance class I-installation channel = 120
- External Height = 200 mm
- Exterior width = 314 mm
- Internal height = 100 mm
- The inner width = 250 mm
- Number of beflammbaren pages = 3
- Sleeve = Steel
- Surface = galvanised
- RAL-number = 9010
- Dividers possible = No
- With perforated base = No
- Cover Mounting = other
- Product type
Fire rated cable trunking
- Component
Outside corner
- Content
1 pc(s)
- Dim
(W x H) 314 mm x 200 mm
- Width
314 mm
- Height
200 mm
- External width
314 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957946 OBO Bettermann 7216636 Fire rated cable trunking (W x H) 314 mm x 200 mm 1 pc(s)
Description

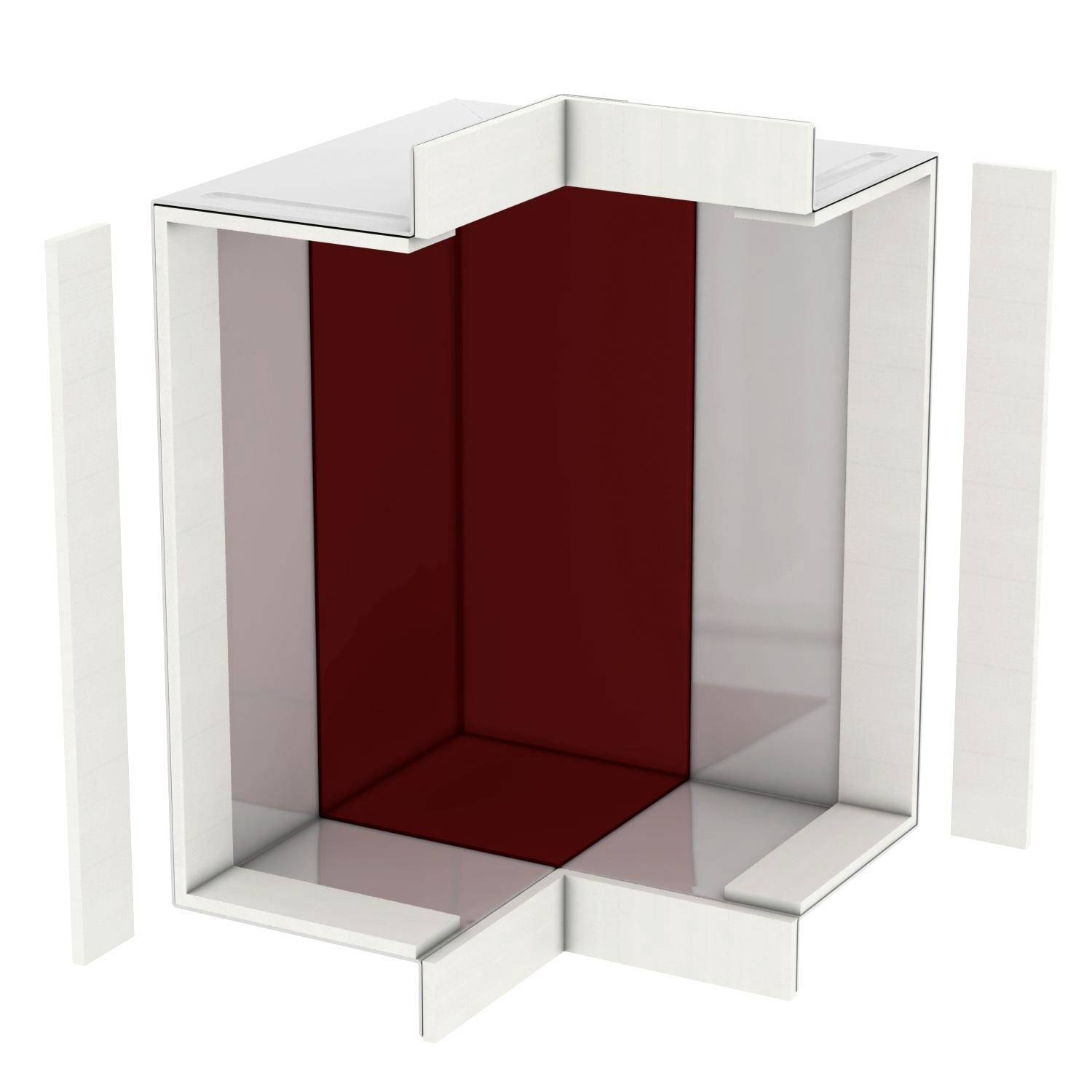

The exterior angle allows for direct wall and ceiling mounting the cover of two-channel the BSKM 1025 as an outdoor corner. Including seals for sealing the joints.
