OBO Bettermann 7218106 Bend 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

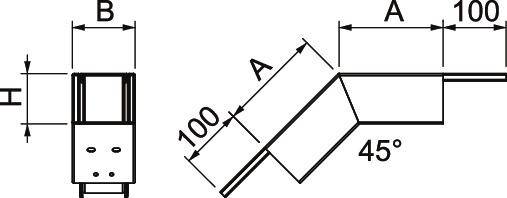

- 45 ° angle
- Outer width 165 mm
- Inner height: 80 mm
- Inner width 100 mm
- Number of flammable pages: 4
- Sheath: Steel
- Surface protection: Zinc-plated strip
- Separator walls possible: No.
- With floor perforation: Yes
- Product type
Bend
- Content
1 pc(s)
- Dim
(W x H) 165 mm x 80 mm
- Width
165 mm
- Height
80 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162435 OBO Bettermann 7218106 Bend 1 pc(s)
Description
45° vertical bow in falling design with an intuitive fire protection fabric for installation channel PYROLINE® Rapid PLM. Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. The cover is snapped on without tool and allows a quick revision and re-assignment. Lid supernatant enables vertical mounting for consistent potential equalization of the entire channel path.
