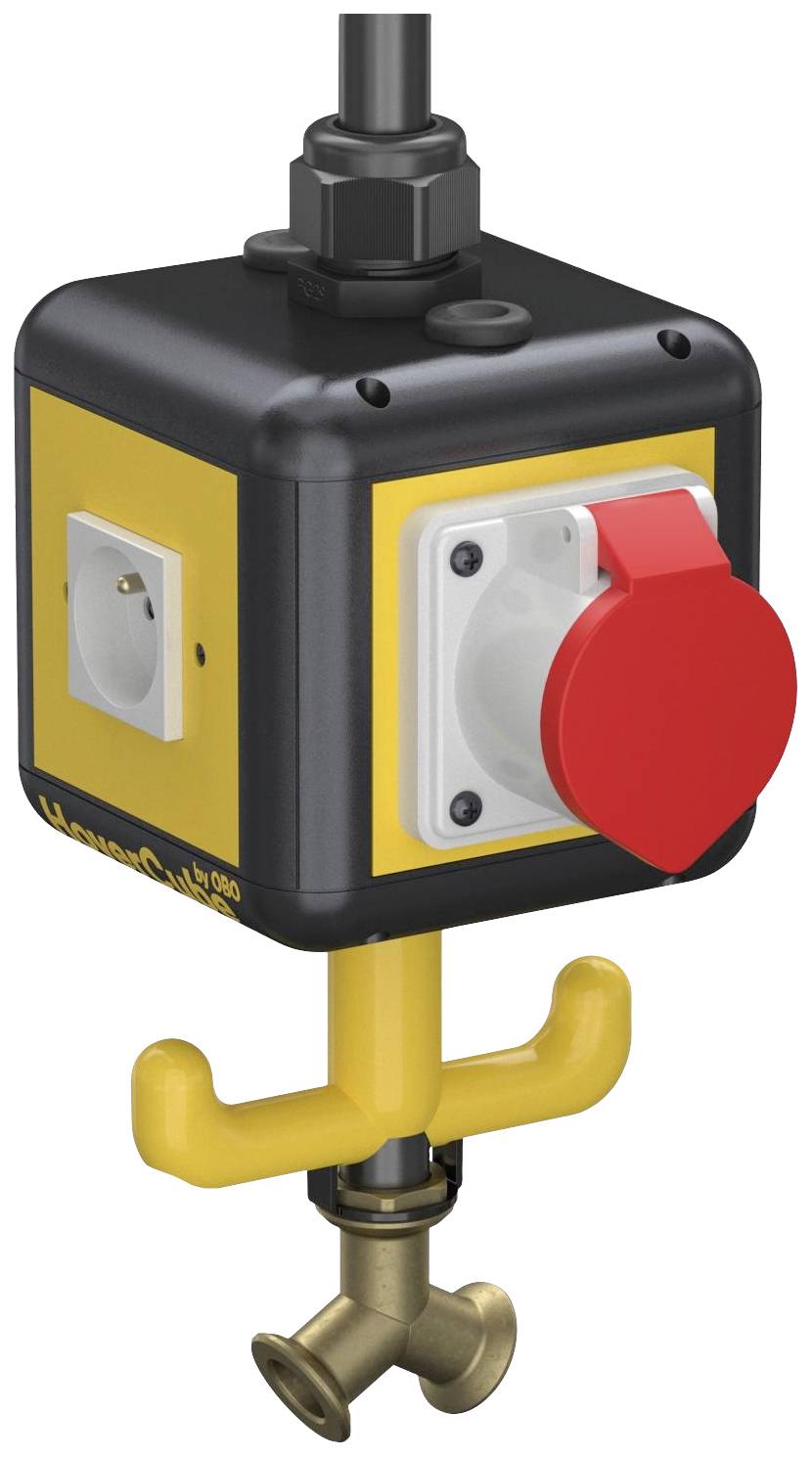

OBO Bettermann CEE suspended distributor VH-4L 3SD1C16 6109814 415 V 16 A
EAN:
Part number:
Item no:
Technical specifications
- Material of the housing = plastic, infeed/connection option = 1 line (line), handling = suspended
- Product type
CEE suspended distributor
- No. of CEE connectors
1
- No. of PG sockets
3
- Nominal input voltage
415 V
- Nominal output voltage
250 V
- Nominal input current
16 A
IP20
- Factory colour
Black
Yellow
- Weight
4.88
- Type
With compressed air connection
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE CARA connector (3-pin, 16 A)
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965089 OBO Bettermann CEE suspended distributor VH-4L 3SD1C16 6109814 415 V 16 A
Description

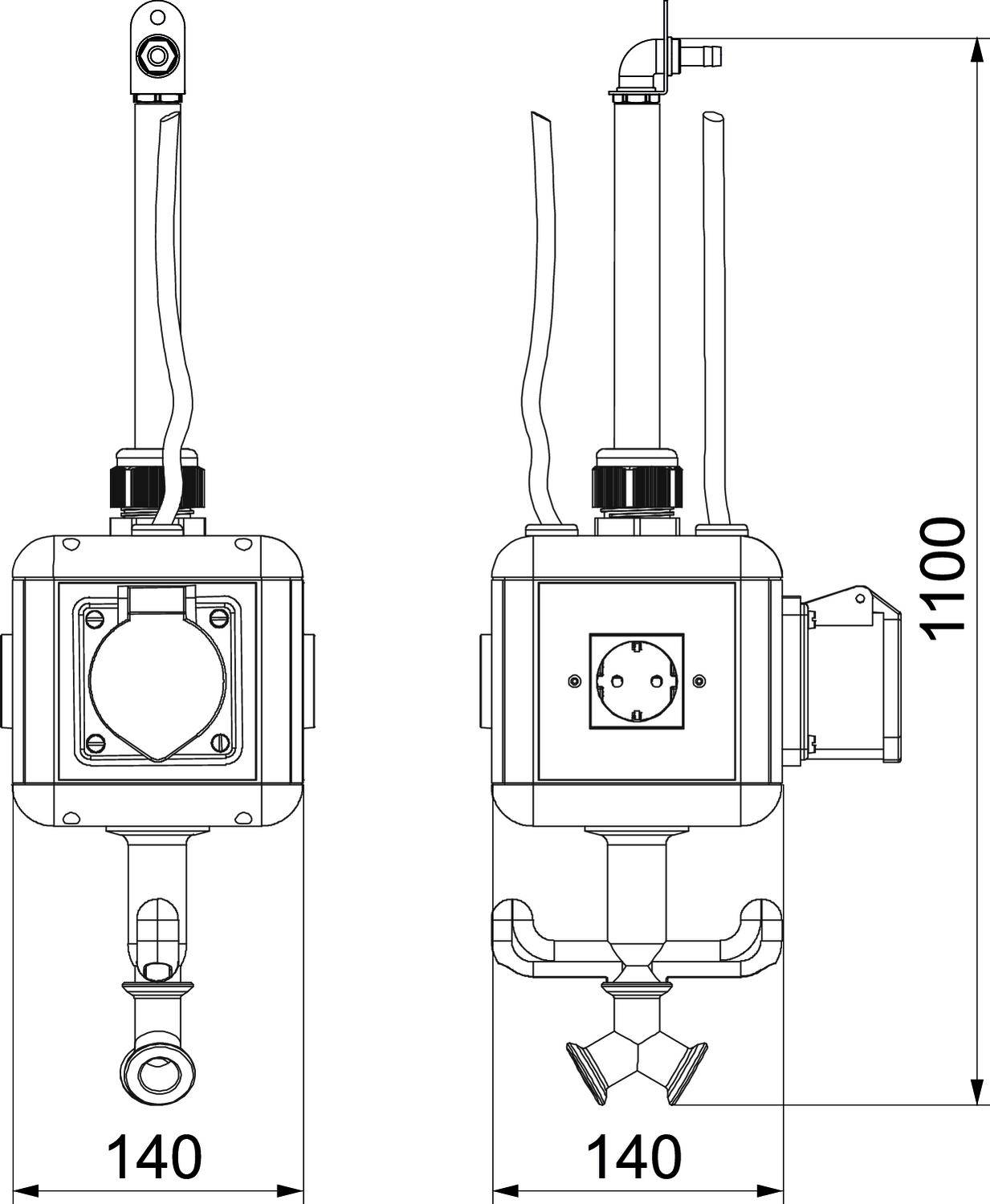

Housing with 1 m pipe 1/2" with connection for compressed air hose 13 x 3.5 mm and 2-way distributor 1/2?. Case with suspension eye and
grip hook and with 4 cover plates. Equipped with 3-pin terminal, 3 x 1fach 16 A/250 V earthing contact socket outlets with protection against penetration of foreign bodies, pre-wired to an AC circuit. 1 x CEE-socket 16 A/415 V
