OBO Bettermann MSL4141PP3000A4 1123023 Rail 3 m 3 m
EAN:
Part number:
Item no:

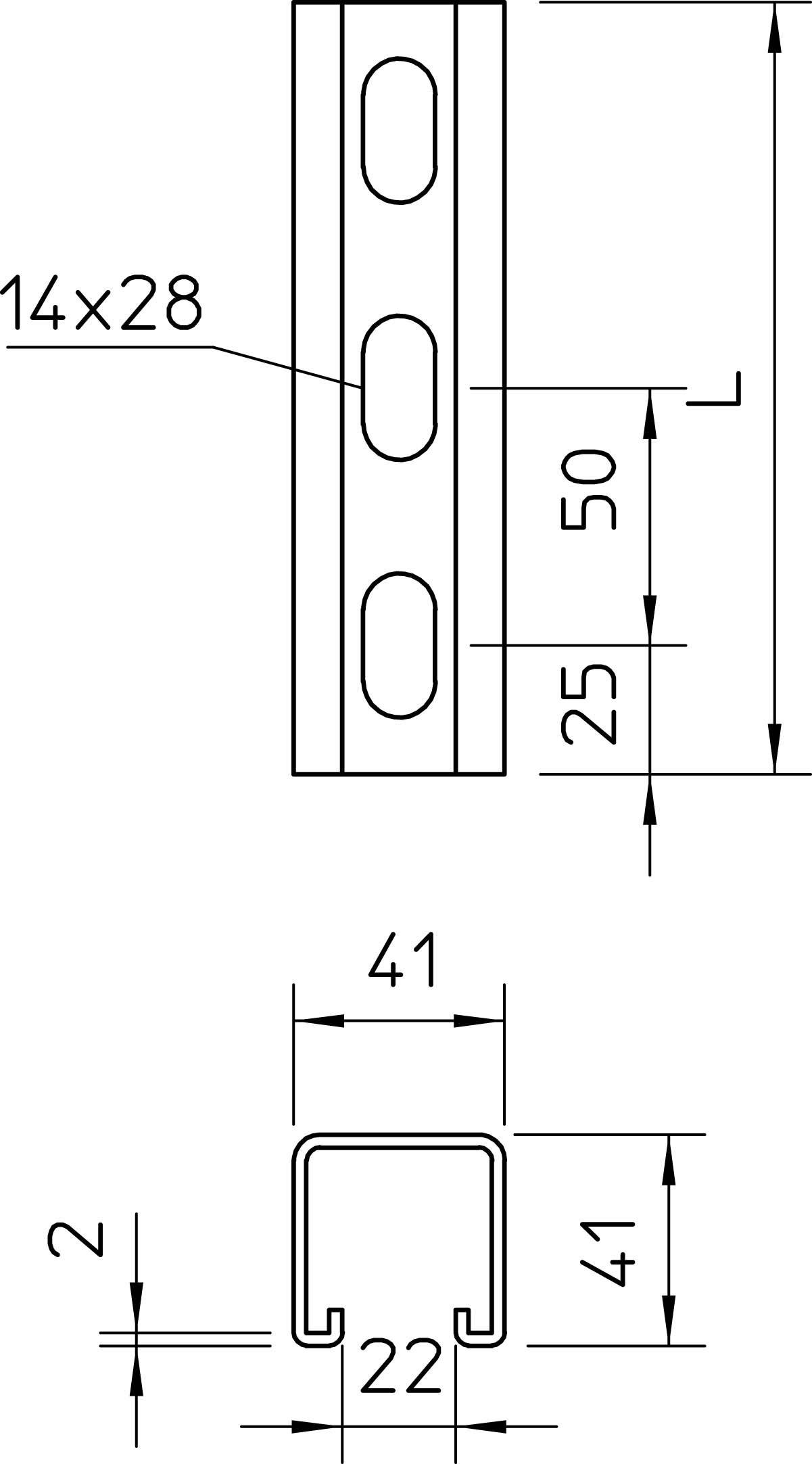

Technical specifications
- Length: 3000 mm
- Width 41 mm
- Height: 41 mm
- Slot width 22 mm
- Material thickness 2 mm.
- Profile: C-Profile
- Design: Simple profile
- Type of hole: 3 pages punched
- Hole width 14 mm
- With teeth: Yes
- Cancelled: No.
- Surface moment of inertia ly: 5.13 cm4
- Surface moment of inertia LZ: 5.88 cm4
- Resistance torque Wy: 2.51 cc
- Resistance torque WZ: 2.69 cm3
- Suitable for functional preservation: No.
- Material: Stainless steel
- Material quality: Rust and acid-resistant steel
- Surface protection: Other
- Weight: 1.79 kg
- Product type
Rail
- Type
Simple profile
- Content
3 m
- Dim
(L x W x H) 3 m x 41.00 mm x 41.00 mm
- Length
3 m
- Width
41.00 mm
- Height
41.00 mm
- Weight
1.79 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406536 OBO Bettermann MSL4141PP3000A4 1123023 Rail 3 m 3 m
Description

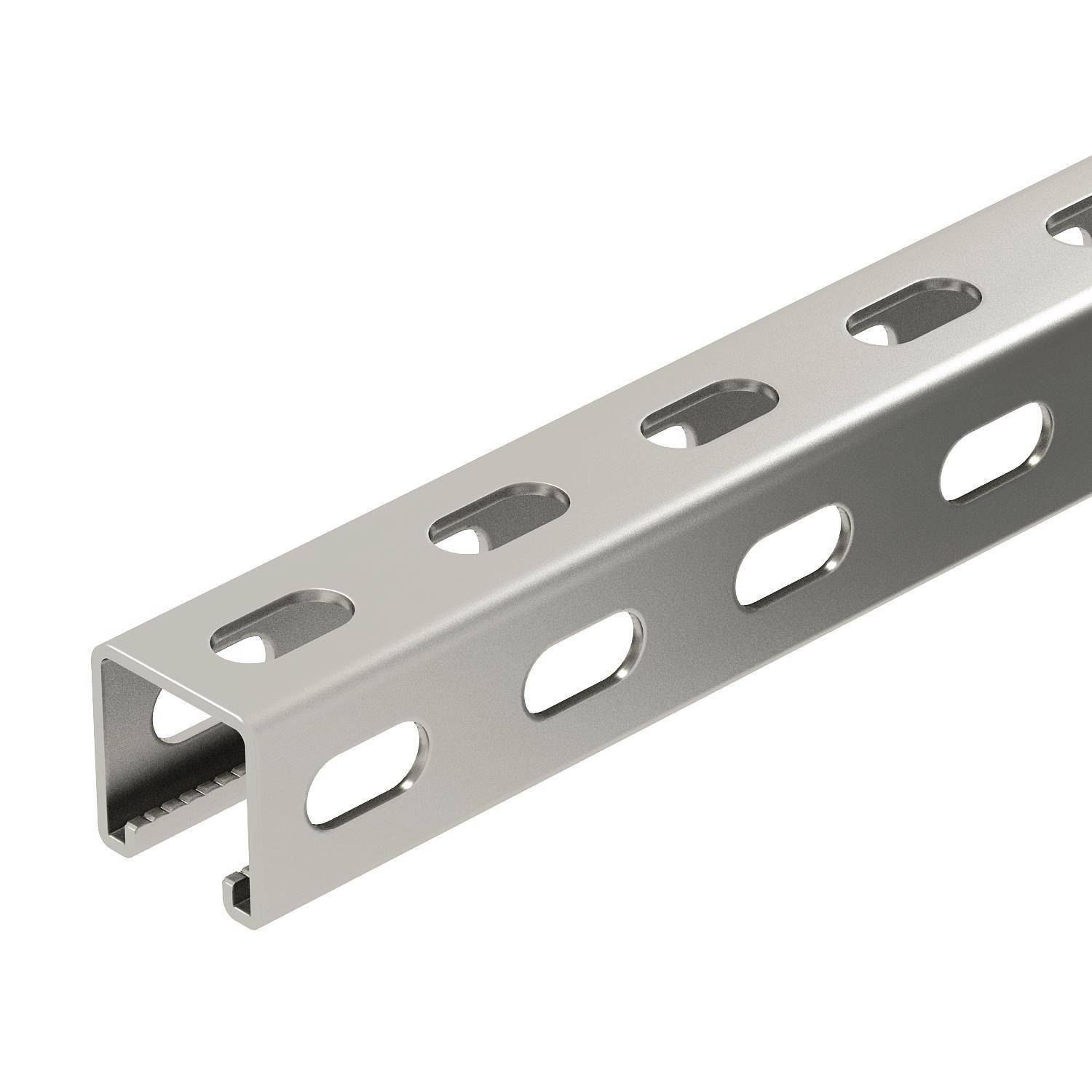

Heavy C-section rail for individual installation of carry constructions for e.g. Cable channels or as console for control cabinets. Can also be used for laying cables, in conjunction with U-base clamps.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Profile rail
