Name: OBO Bettermann RKS2 R9 V20 Cartridge
Brand: OBO Bettermann
SKU: 1962076

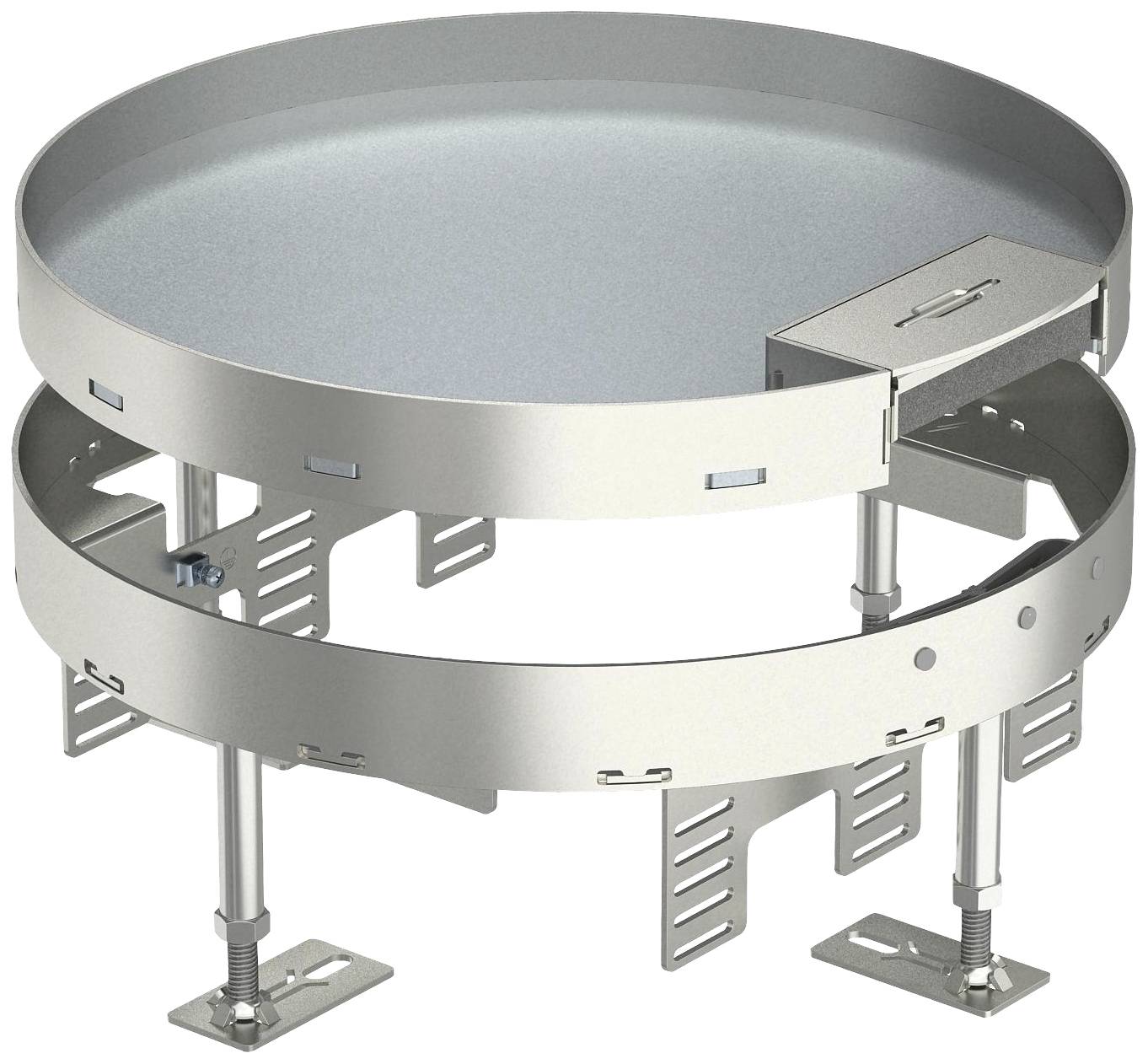

A round, adjustable metal frame with multiple legs and clips, presumably a holder or stabiliser for another object.

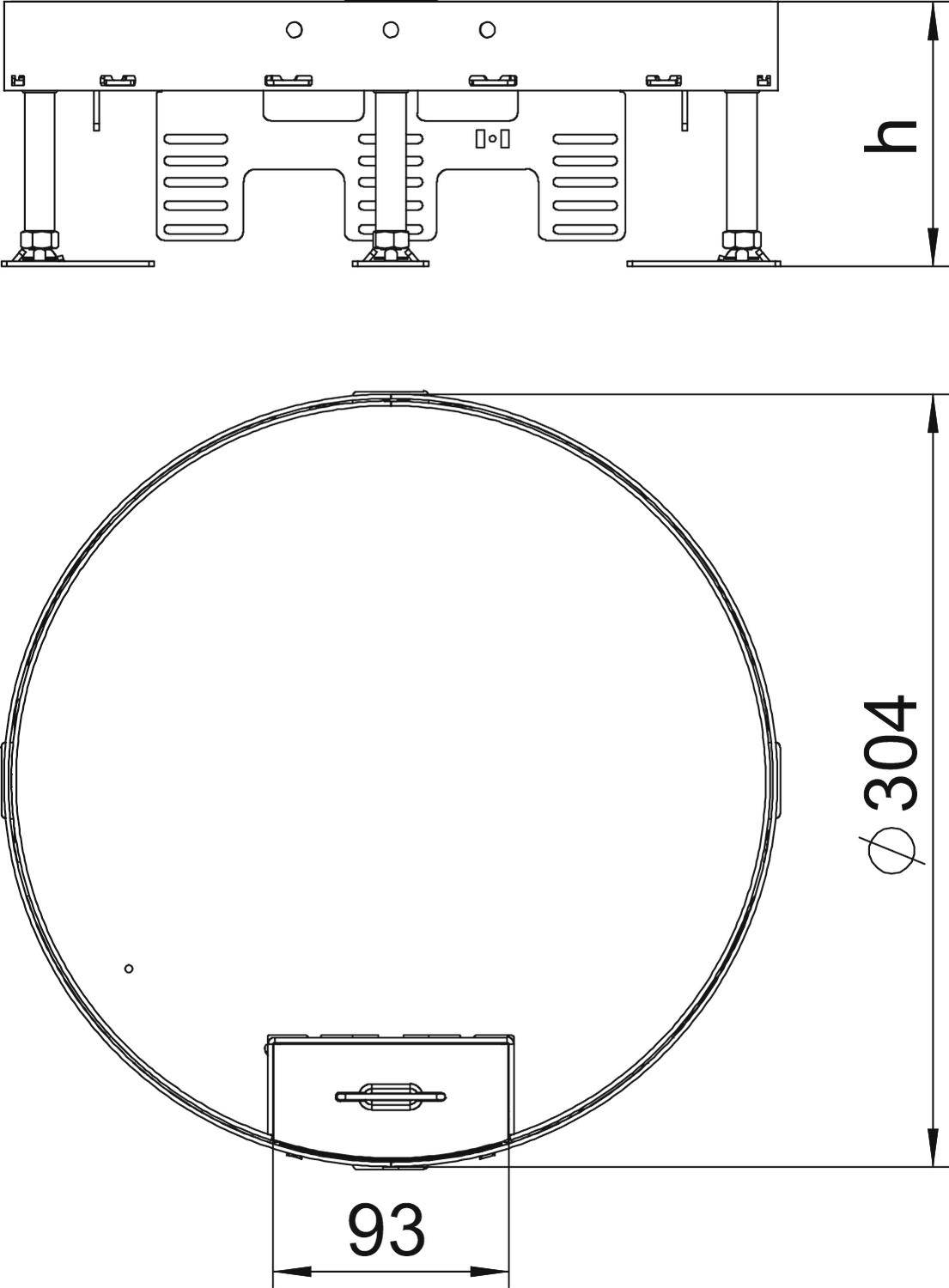

Technical drawing of a round object with a diameter of 304 mm and a width of 93 mm. Height marked with 'h'.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Cassette height = 20 mm
Levelling height = 110. .155 mm
The depth of the flooring recess = 20 mm
Floor Care = dry
Design = round
Material = rust free steel
The number of cable outlets = 1
Design cable outlet = swivelling
Device support for recording device cups = Yes
Installation diameter = 305 mm

Product type: Cartridge

(Ø): 305 mm

Height: 20 mm

Dim: (Ø x H) 305 mm x 20 mm

Recess diameter: 305 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1962076 OBO Bettermann RKS2 R9 V20 Cartridge

Description

The nominal size facilitates stainless steel cassette R9 with cord outlet for the installation of installation devices in dry well-kept floors.

This text is machine translated.

Description

The nominal size facilitates stainless steel cassette R9 with cord outlet for the installation of installation devices in dry well-kept floors.

This text is machine translated.
