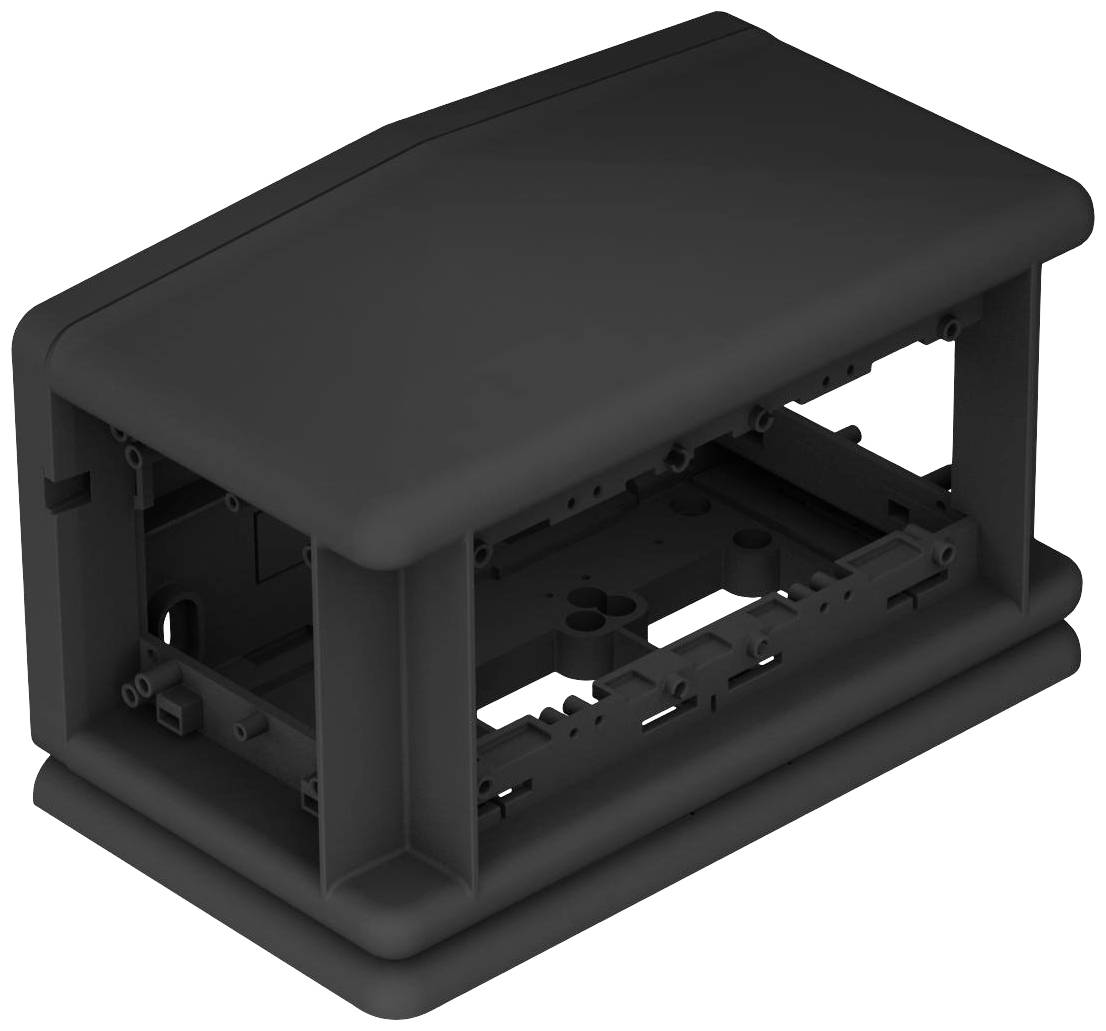

OBO Bettermann T4L00C 9011 Floorbox
EAN:
Part number:
Item no:
Technical specifications
- The number of in-built devices = 4
- Design = horizontal
- Color = other
- RAL-number = 9011
- Suitable for standard switch material = Yes
- Suitable for wet care = Yes
- Material = polyamide (PA)
- Surface = other
- Length = 225 mm
- Width = 125 mm
- Height = 125 mm
- Product type
Floorbox
- Height
125 mm
- Length
225 mm
- Width
125 mm
- Dim

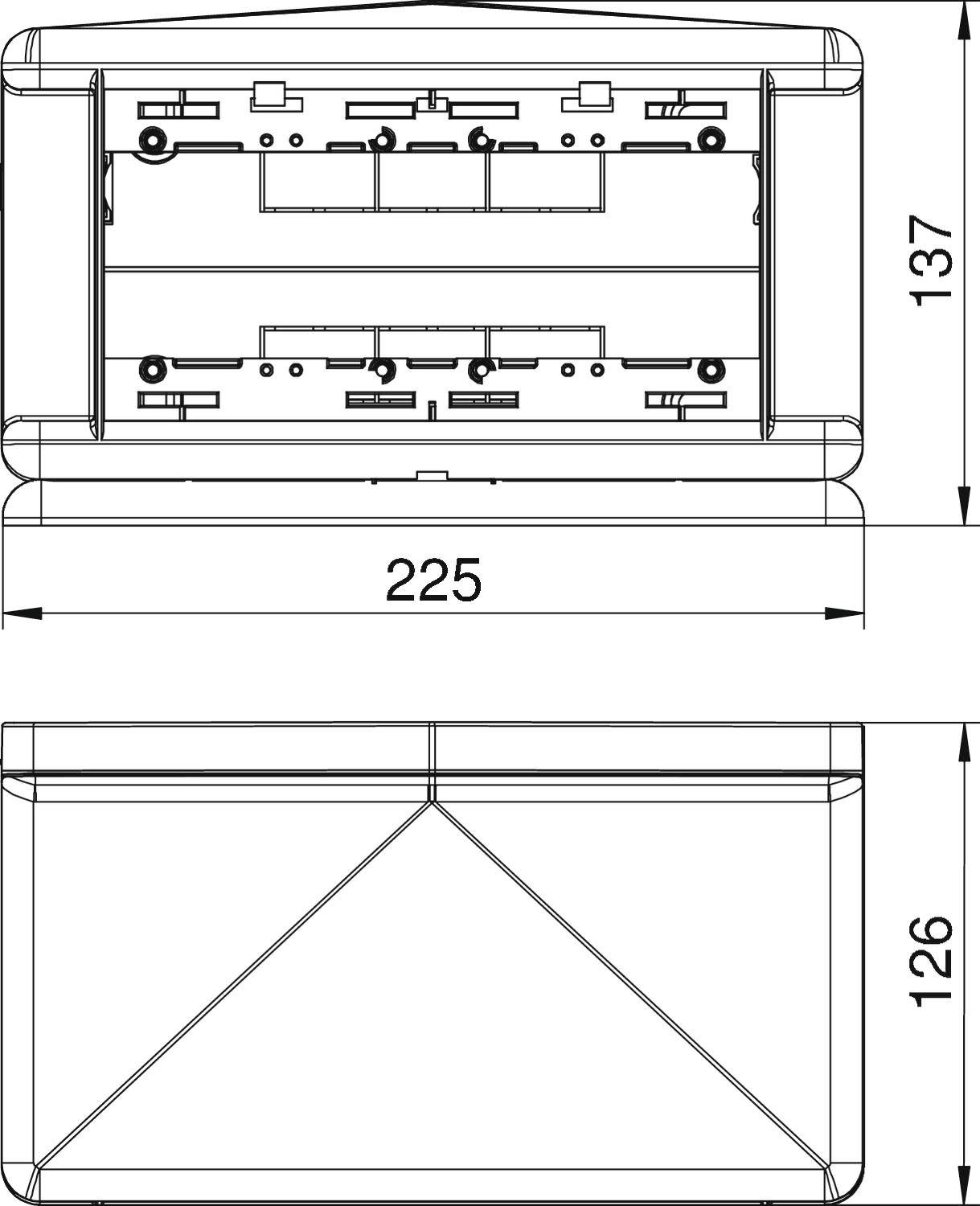

(L x W x H) 225 x 125 x 125 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958754 OBO Bettermann T4L00C 9011 Floorbox
Description
The combined installation of 4 individual installation devices of the power, data and telecommunications technology. Note: When installing a 3-way earthing contact socket and 1 or 2 installation devices of other current types is also the flush-mount housing T 4 L/EC. Suitable for direct mounting before or on a wall. Screw mounting track for installation devices: 60 mm vertically. Housing base with sealing, mounting screws enclosed.
