OBO Bettermann WB AC BL KS SPD Wallbox Type 2 No. of ports 1 22 kW
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wallbox
- Authorisation
Key switch
- Charger connectors
Type 2
- Charging mode
Mode 3
- No. of ports
1
- Charging capacity
22 kW
- No. of phases
3-phase
- Cable length
5 m
IP66
- Width
340 mm
- Height
370 mm
- Depth
136 mm
Description

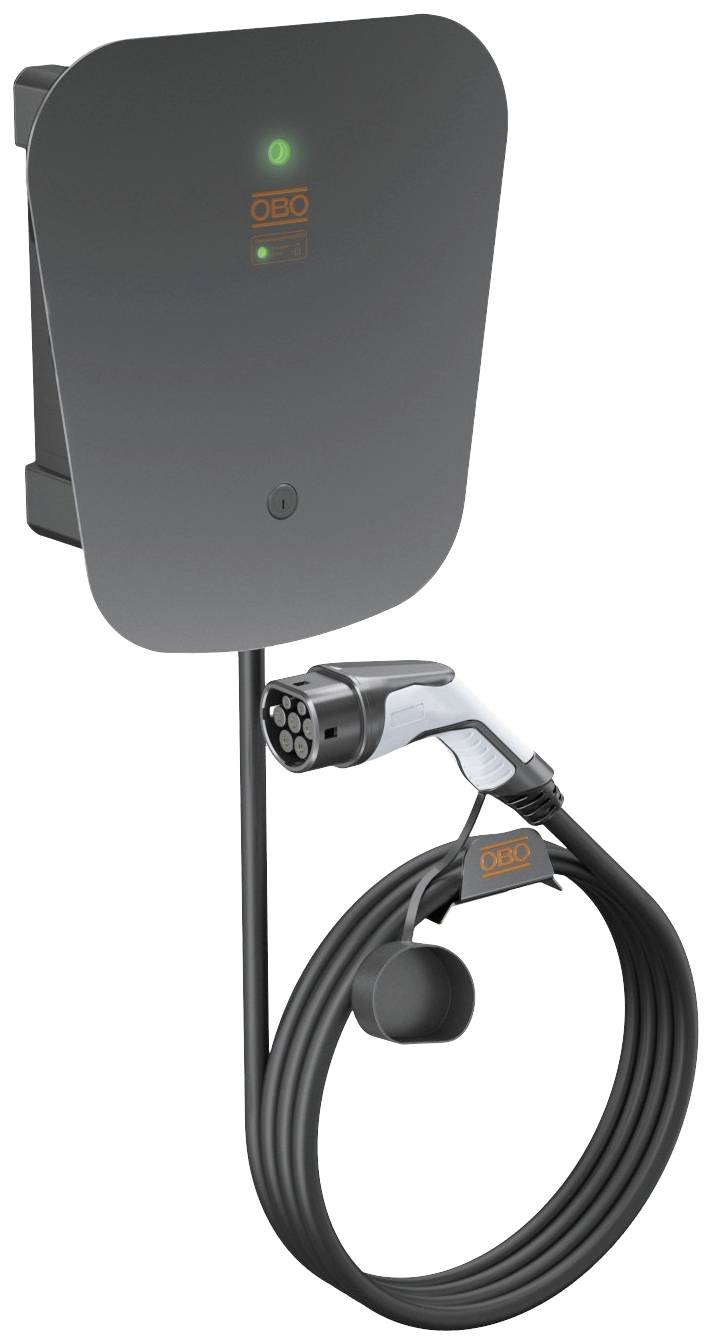

Ion Wallbox for charging electric vehicles in the private sector as a single charging point. Suitable for fixed mounting on the wall in indoor or protected outdoor areas. - Charging according to mode 3 according to IEC 61851-1 - on, Two- and three-phase charging - suitable for TN- and TT-networks - integrated temperature monitoring - DC-fault current monitoring - Status information via LED-display - ready for connection pre-wired - including 5-m charging cable with type 2 charging plug and cable holder - Feed from above or below - Stainless steel design elements - Charging power can be limited to a fixed value, Factory setting 11 kW - integrated overvoltage protection for power and data lines - Modbus RTU protocol via RS-485 interface for bi-directional communication - with key switch for authorization
