OJ Electronics 611065-E Thermostat electronical OCD5-E 3600 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Clock THERMOSTAT OCD5 – 2

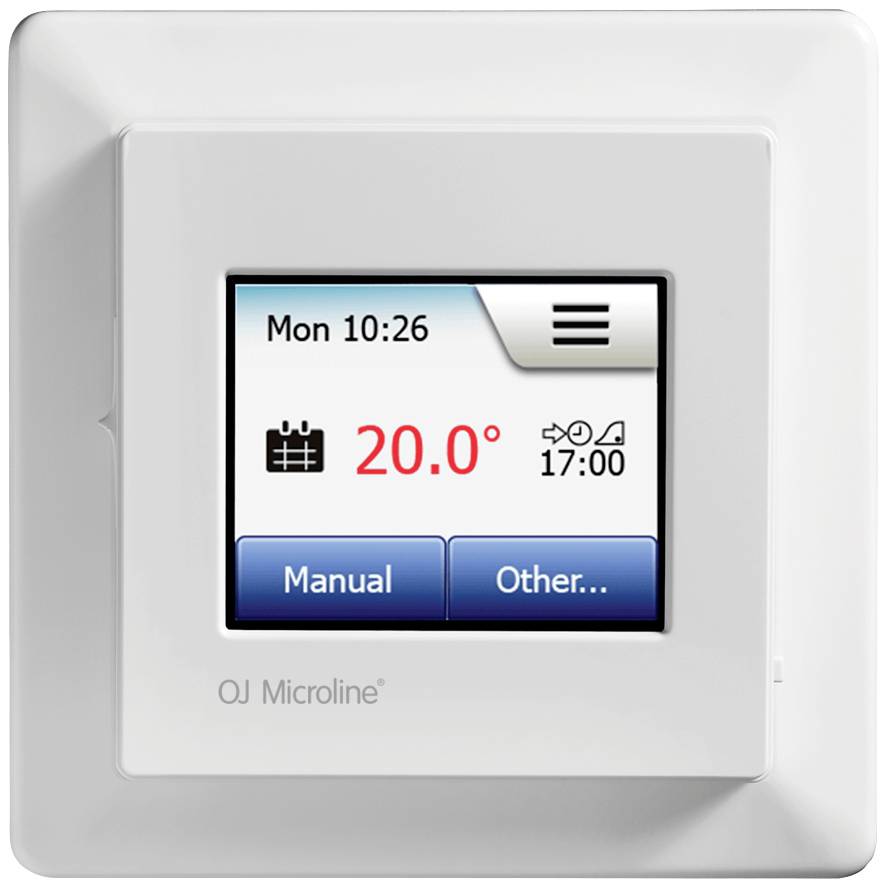

- Color touch display 220 x 176 pixel TFT3 m ground sensor (NTC)Rating up to 3600 W
Technical specifications
- Product type
Thermostat
- Operation type
electronical
- Operating voltage
230 V
- Suitable for
Wet room
- Heating power (W / BTU/h)
3600 W
- Heating power
3600 W
- Compatible with
Underfloor heating
- Max. current consumption
16 A
IP21
- Width
80 mm
Documents & Downloads
Datasheet
Datasheet 2589331 OJ Electronics 611065-E Thermostat electronical OCD5-E 3600 W
Description
Electronic clock thermostat for controlling electrical floor heating, either by means of an external floor sensor or the sensor built into the thermostat. Prepared for the requirements of the new EU eco-guidelines. Simple menu navigation via touch screen. 12 different languages to choose from. Compatible with existing floor sensors, therefore best suitable for renovation purposes.
This text is machine translated.
This text is machine translated.
Features
- For flush mounting in 55er standard wall socketsClock thermostat, 230V, loadable up to 3600 W, 16AThe desired temperature can be set between +5°C and +40°C.Optionally a 4 or 6-phase program for automatic comfort and lowering temperature, up to 7 different program combinations possibleMonitoring of energy consumptionAutomatic adjustment to daylight saving timeQR code display for easy handling and support5-year battery backup of clock and calendarThrough housing protection class IP 21 Installation possible in bathrooms or other damp roomsIncl. Floor sensor (NTC), 3 m and integrated room sensor
Scope of delivery
- Clock THERMOSTAT OCD5 – 2
- User manual.
