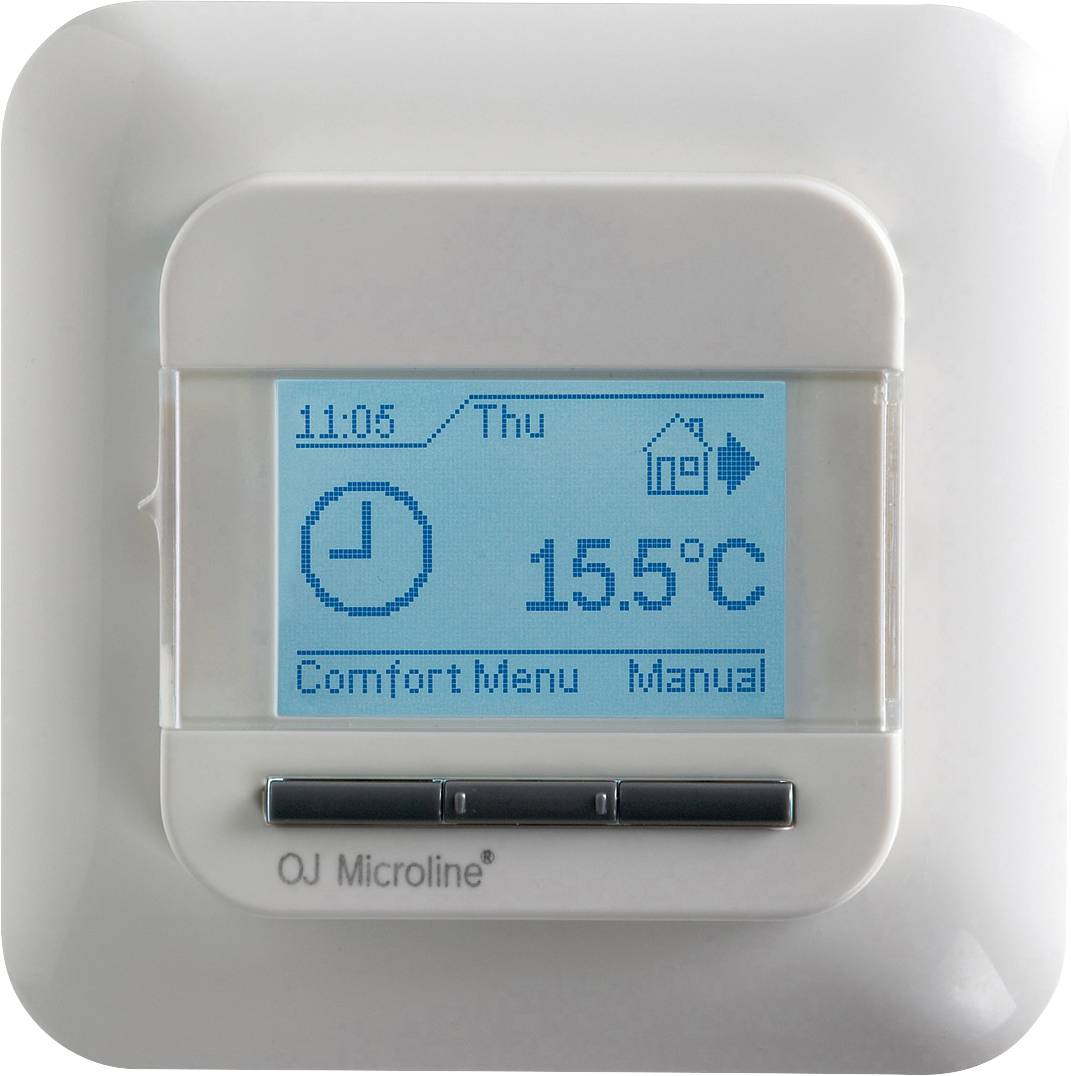

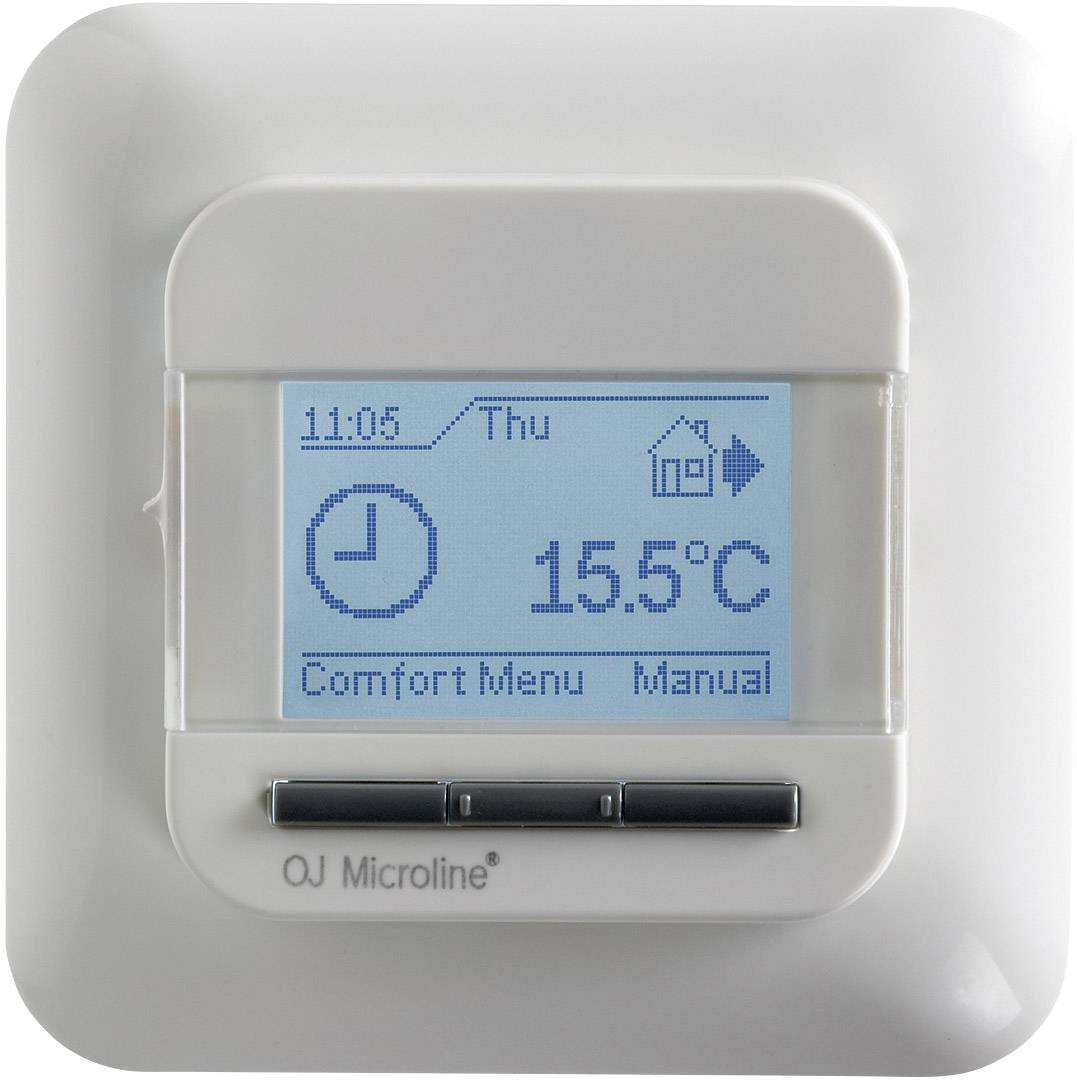

OJ Electronics OCD4 Underfloor heating control Flush mount 0 up to 40 °C
EAN:
Part number:
Item no:
Highlights & Details
Clock thermostat with 2 sensors
- For flush mounting
- Only 20 mm Dick, Easy Installation
- 4-phase program for automatic comfort and lowering temperature
Technical specifications
- Product type
Underfloor heating control
- Mounting type
Flush mount
- Operation type
electronical
- Power supply (LOV)
mains-powered
- Factory colour
White
- Dim
(L x W x H) 80 x 80 x 40 mm
- Compatible with
Underfloor heating
- Operating voltage
230 V
- Display
Yes
- Remote sensor
Yes
- Contact load capacity
16 A
- Width
80 mm
- Height
40 mm
- Length
80 mm
IP21
- Temperature settings
0 up to 40 °C
- Max. temperature setting
40 °C
- Min. temperature setting
0 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2207978 OJ Electronics OCD4 Underfloor heating control Flush mount 0 up to 40 °C
Description
Electronic clock thermostat for controlling electrical floor heating, where optimum comfort temperature and minimum energy consumption is required. The temperature is controlled either by means of a floor sensor or a sensor built into the thermostat. Simple animated menu navigation and programming in eight different languages. Compatible with existing floor sensors, therefore best suitable for renovation purposes.
This text is machine translated.
This text is machine translated.
Features
- 4-phase program for automatic comfort and lowering temperature
- By housing protection class IP21 Installation possible in bathrooms or other damp rooms
- Incl. Floor sensor (NTC), 3 m and integrated room sensor
- Incl. Conduit 2 m with end sleeve for floor sensor
- White backlight
Scope of delivery
- Clock THERMOSTAT OCD4
- User manual
