OJ Electronics OCD6 Underfloor heating control Flush mount 0 up to 40 °C
EAN:
Part number:
Item no:
Highlights & Details

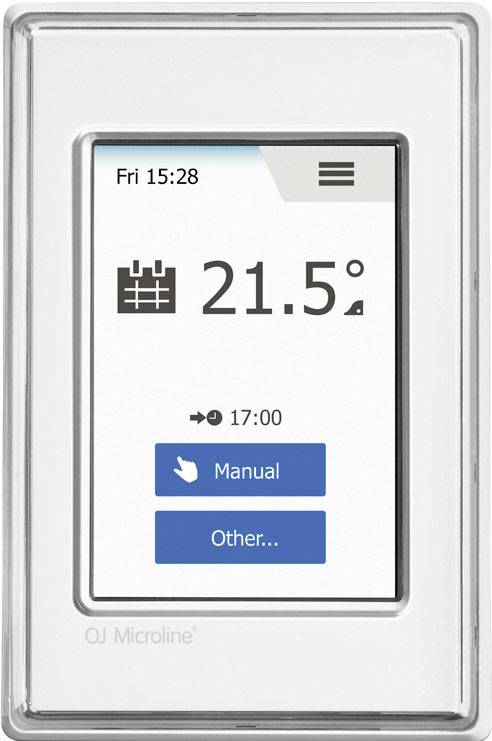

Clock thermostat with 2 sensors and 3.5" touch display
- Touch thermostat with clock function
- Up to 7 different 4-6 range programs
- Incl. Child lock
Technical specifications
- Product type
Underfloor heating control
- Mounting type
Flush mount
- Operation type
electronical
- Power supply (LOV)
mains-powered
- Factory colour
White
- Dim
(L x W x H) 205 x 80 x 121 mm
- Compatible with
Underfloor heating
- Operating voltage
230 V
- Display
Yes
- Remote sensor
Yes
- Contact load capacity
16 A
- Width
80 mm
- Height
121 mm
- Length
205 mm
IP21
- Temperature settings
0 up to 40 °C
- Max. temperature setting
40 °C
- Min. temperature setting
0 °C
Description
The Touch-Thermostat OCD6 possesses a large 3.5-inch color touch-screen and simplifies the programming by its user-friendly and intuitively designed menu navigation. It provides easy adjustment and monitoring of the electrical heating systems and is used for control according to EN50559. The adaptive learning function ensures that the comfort temperature is reached at the desired time.
OCD6 is supplied with an external floor sensor and a built-in room sensor.
The thermostat can be set to the following functions:
-room temperature control
-Ground temperature control
-room temperature control in which the floor sensor acts as a limiting sensor to protect sensitive floors (e.g. Wood).
The thermostat switches the heating system on at specified times every day of the week. For each weekday, individual temperatures can be set for up to six different periods. Lowering the temperature when no one is at home reduces energy costs without reducing comfort.
This text is machine translated.
OCD6 is supplied with an external floor sensor and a built-in room sensor.
The thermostat can be set to the following functions:
-room temperature control
-Ground temperature control
-room temperature control in which the floor sensor acts as a limiting sensor to protect sensitive floors (e.g. Wood).
The thermostat switches the heating system on at specified times every day of the week. For each weekday, individual temperatures can be set for up to six different periods. Lowering the temperature when no one is at home reduces energy costs without reducing comfort.
This text is machine translated.
Features
- 12 different languages available
- Compatible with existing floor sensors, therefore best choice for renovations
- Boost mode - the underfloor heating is constantly active for one hour
- Comfort Mode / Frost Protection Mode / Holiday Mode / Eco Mode
- 4 to 6 periods can be programd
- Self-learning, adaptive function for independant adjustment of the start time after the learned heating time
- Calculation of energy consumption for a specified period
- Incl. Child lock
- By housing protection class IP21 Installation possible in bathrooms or other damp rooms
- Incl. floor sensor (NTC) 3 m.
- Incl. Conduit 2 m with end sleeve for floor sensor
Scope of delivery
- Touch thermostat OCD6
- User manual
