Start
Tools & Workshop SuppliesGarage & Workshop SuppliesWorkplace EquipmentScrew Clamps

OMEGA 5117 GMT-2K 500/120 Bessey GM50Z-2K Span width (max.):500 mm Nosing length:120 mm

Metal clamp with red handle and pivoting screw spindle, showing accessory parts for replacement or adjustment.

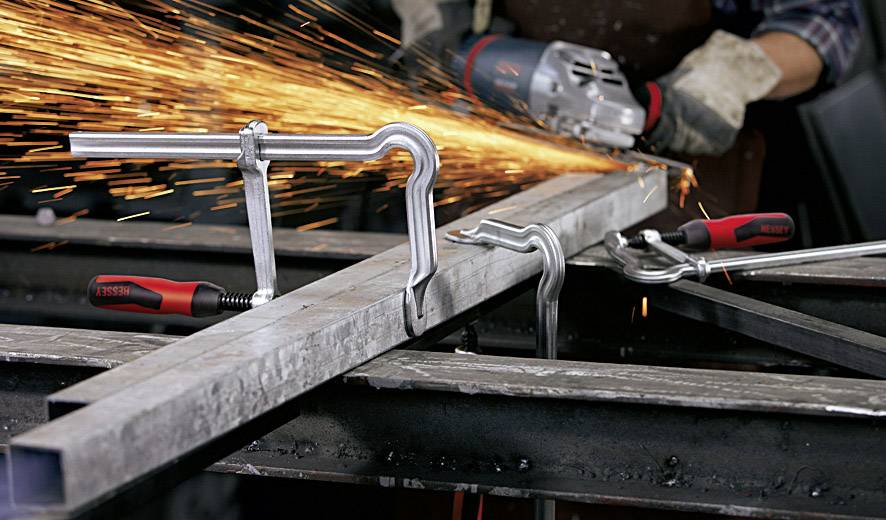

A person is grinding metal with an angle grinder, with sparks flying. The metal is secured with G-clamps to a workbench.
A handsaw cuts precisely through a wooden board secured at one edge with a large clamp. The hand holds the saw steadily.

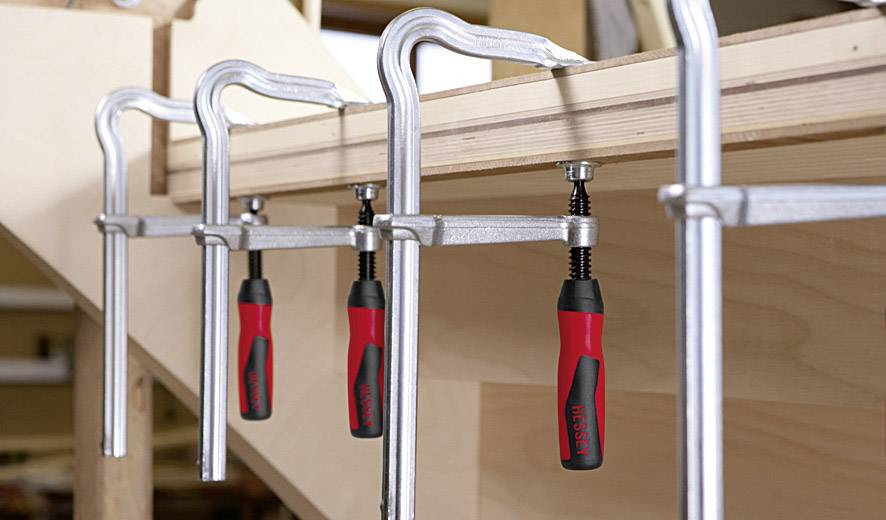

Several silver C-shaped G-clamps are holding wooden boards together. Red and black handles allow adjustment of the tension.
A piece of wood is secured with two clamps to the edge of a table. In the background, a workshop with work surfaces and tools can be seen.

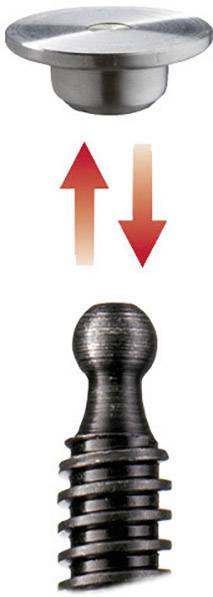

Screw head with double arrow indicates how it fits onto a grooved rod designed for connection or mounting.

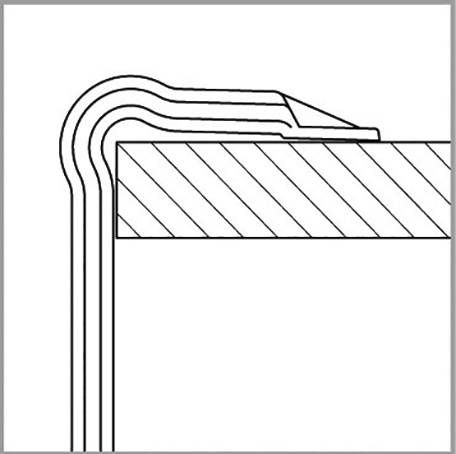

Cross-section of a sealing profile. Shows the layers and their arrangement, primarily depicted in black and white lines.
Cross-section of a metal edge with weld seam: Several metal layers enclose an inner layer. A weld seam is visible at the top.
1/8
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

OMEGA 5117 GMT-2K 500/120

  • Clamping force up to 5,000 N
  • High-quality 2-component plastic handle
  • Pressure plates can be replaced with no need for tools
  • Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
  • Universally applicable within the fields of wood

Technical specifications

  • Rail Profile width: 25 mm
  • rail profile thickness: 12 mm
Span width (max.)

500 mm

Nosing

120 mm

Weight

2330 g

Content

1 pc(s)

Tension

5000 N

Clamping range

500 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 814867 OMEGA 5117 GMT-2K 500/120 Bessey GM50Z-2K Span width (max.):500 mm Nosing length:120 mm

Description

The clamping force of up to 5000 N. high-quality 2-component plastic handle. Manually changeable pressure discs. Tempered sliding and fixed bracket for elastic and elastic tension Universal application in wood and metal processing.

Hints

This text is machine translated.
