Omnitronic CSH-6 2-way coaxial flush mount speaker kit 30 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- POWER RATING 30 W RMS (100V PA)
- Sensitivity 88 dB
- Impedance: ELA technology 100 V; 8 Ohm
- Power tap: 3.75 W; 7.5 W; 15 W; 30 W RMS can be selected via selector switch
- 1 x 6.5" woofer; 1" moving coil woofer; 1 x 1" tweeter
- Speaker type: Built-in speaker
- Colour: White
- Installation dimensions Ø 24 cm
- Assembly: Easy to install
- Product type
2-way coaxial flush mount speaker kit
- Type
Round
- RMS capacity
30 W
- Max. load
30 W
- Power levels
30 W
- Impedance
8 Ω
- Max. sound pressure
88 dB
- Features
Recessed speaker
Ceiling speaker
- Frequency range
60 - 20000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Plastic
- Weight
3.25 kg
- (Ø)
267 mm
- Dim
(Ø) 267 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729780 Omnitronic CSH-6 2-way coaxial flush mount speaker kit 30 W 8 Ω White 1 pc(s)
Description

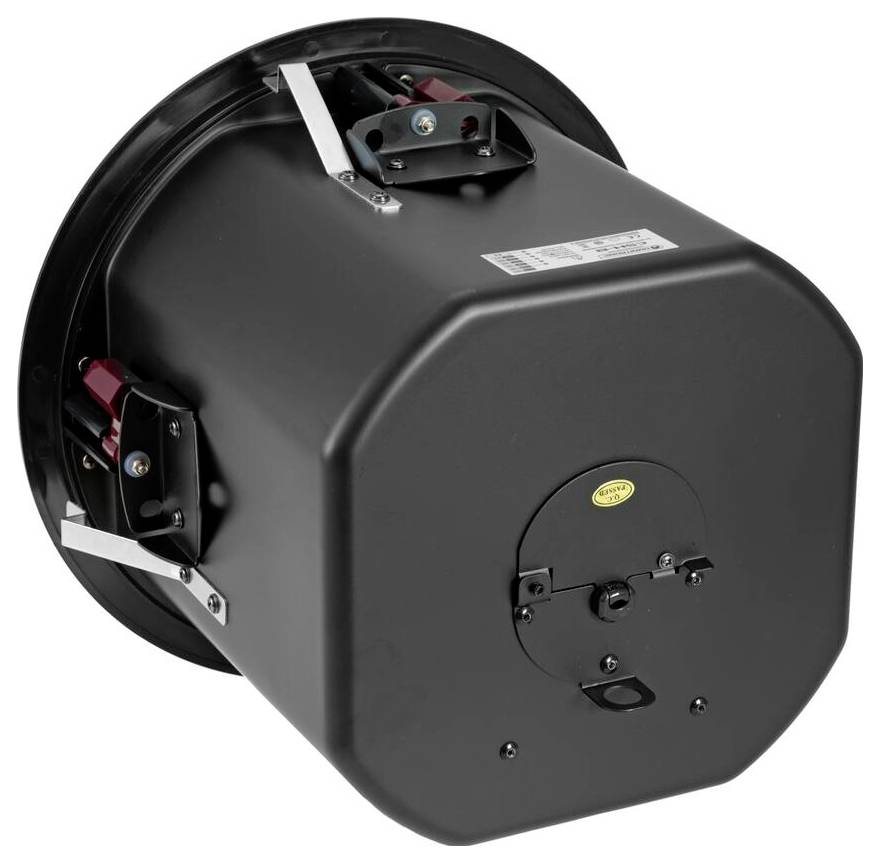

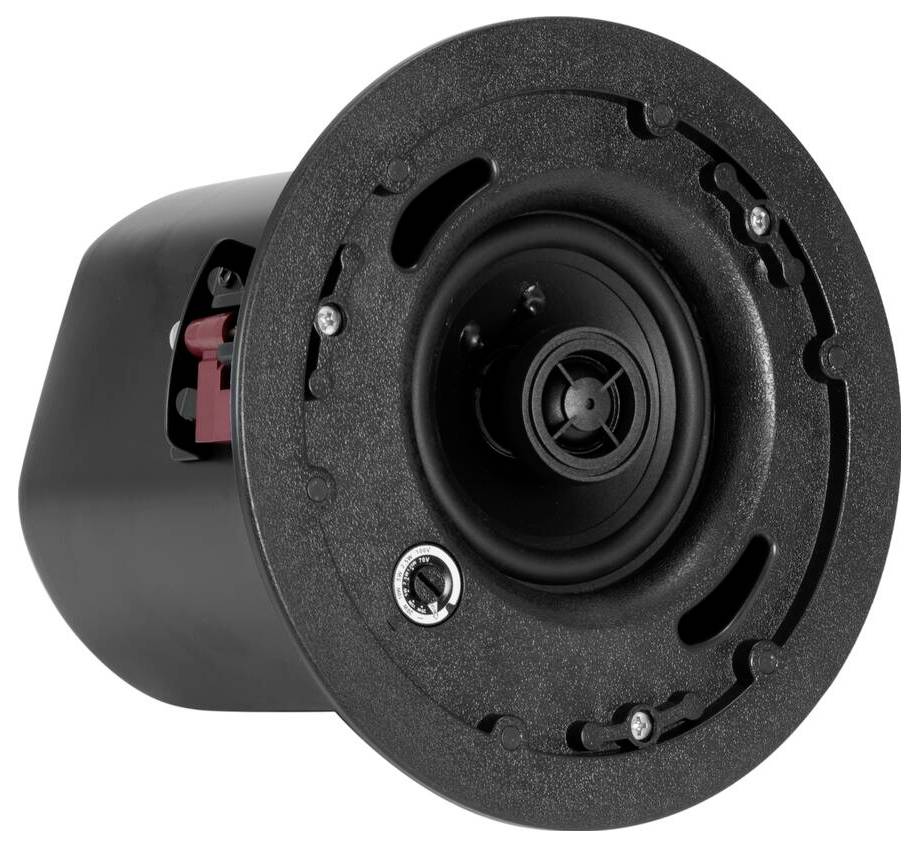

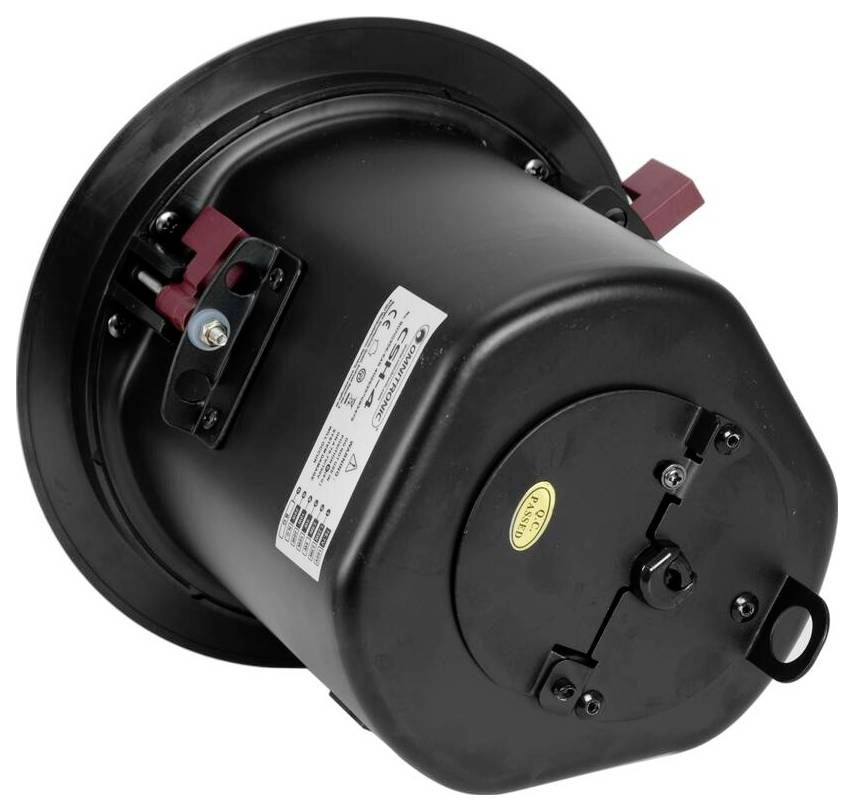

2-way coaxial loudspeaker, LF: 6.5" HF: 1", ELA technique 100V, 75 W RMS, Ø 24 cm. 2-way system with coaxial loudspeaker and crossover. Robust plastic housing with metal grille. Easy to Set Up Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1x user manual
- 1 x screw terminal.
