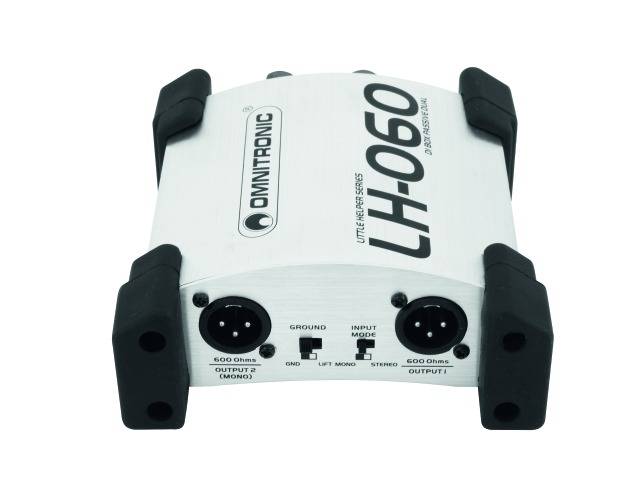

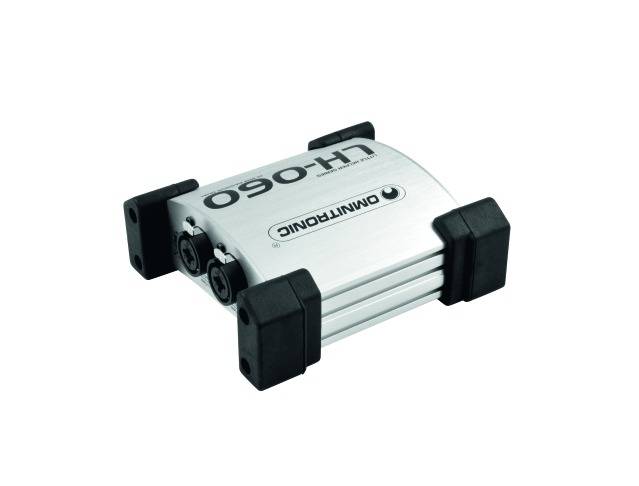

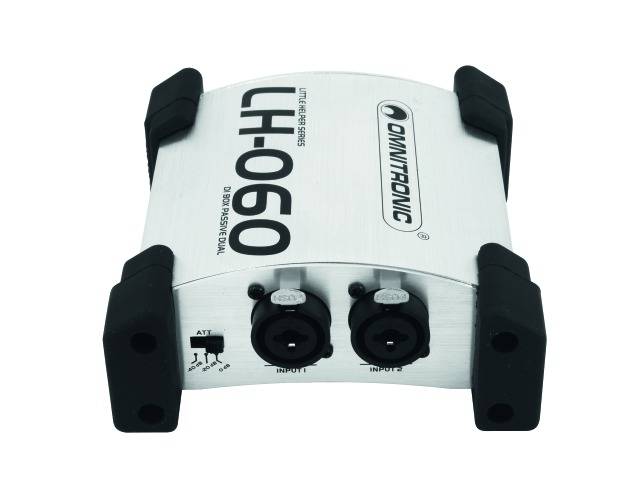

Omnitronic LH-060 Passive DI box 2-channel
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic LH-060 dual PRO DI box, passive
- 2-channel DI box/splitter, passive
Technical specifications
- Frequency response: 15 Hz - 30 kHz
- Input impedance 50 kOhm
- Output impedance 600 Ohm
- Maximum output level 6 dBu
- Dynamic range> 95 dB
- Connections Input: 2 x XLR/6.3-mm jack
- Connections Output: 2 x XLR, balanced
- Dimensions 150 x 130 x 60 mm
- Weight: 0.5 kg
- Channels
2
- Interfaces
6.3 mm jack in
XLR in
XLR out
- Features
Ground lift switch
- Weight
0.8 kg
- Width
235 mm
- Height
90 mm
- Product type
Passive DI box
Description
2-channel DI box/splitter, passive · Passive 2-channel DI box with split mode · 2 high-resistance signal inputs via combination sockets (XLR/6.3 mm jack) · 2 low-resistance XLR outputs · Converts 2 separate unbalanced line signals (e.g. from instruments) into 2 balanced XLR output signals for connection to a mixing desk · Can be switched to split mode (the signal is routed from input 2 to both outputs) · Switchable input attenuation 0 dB, -20 dB, -40 dB · Ground lift switch to avoid signal interference and humming loops · Modern convex housing design with rubber surrounds for a secure stand · Stackable · Cables can be routed under the housing
