Omnitronic LH-053 Passive DI box 1-channel
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic LH-053 DI-Box passive
- 1-channel DI box, passive
Technical specifications
- Frequency range 15 Hz - 30 kHz
- Input impedance 50 kOhm
- Output impedance 600 Ohm
- Noise voltage distance> 95 dB
- Connection input: 6.3 mm jack, unbalanced.
- Connections output: XLR, bal.
- 6.3 mm jack, unbalanced (Parallel output)
- Dimensions 127 x 74 x 45 mm
- Weight: 650 g
- Channels
1
- Interfaces
6.3 mm jack in
XLR in
- Features
Ground lift switch
- Weight
0.5 kg
- Width
155 mm
- Height
50 mm
- Product type
Passive DI box
Description
1-channel DI box, passive · Passive DI box · 1 high-ohm, unbalanced signal input, 6.3 mm jack · 1 low-ohm balanced XLR output · 1 instrument loop-through output, 6.3 mm jack · Converts unsymmetrical jack input signal (e.g. of instruments) into a balanced XLR output signal for connection to a mixing desk · Switchable input attenuation 0 dB, -20 dB, -40 dB · Ground lift switch to avoid signal interference and humming loops · Robust black metal housing
This text is machine translated.
This text is machine translated.
Frequently Bought Together
(*All information is plus legal VAT) This article
Omnitronic LH-053 Passive DI box 1-channel
Conrad Electronic
€ 15.96*

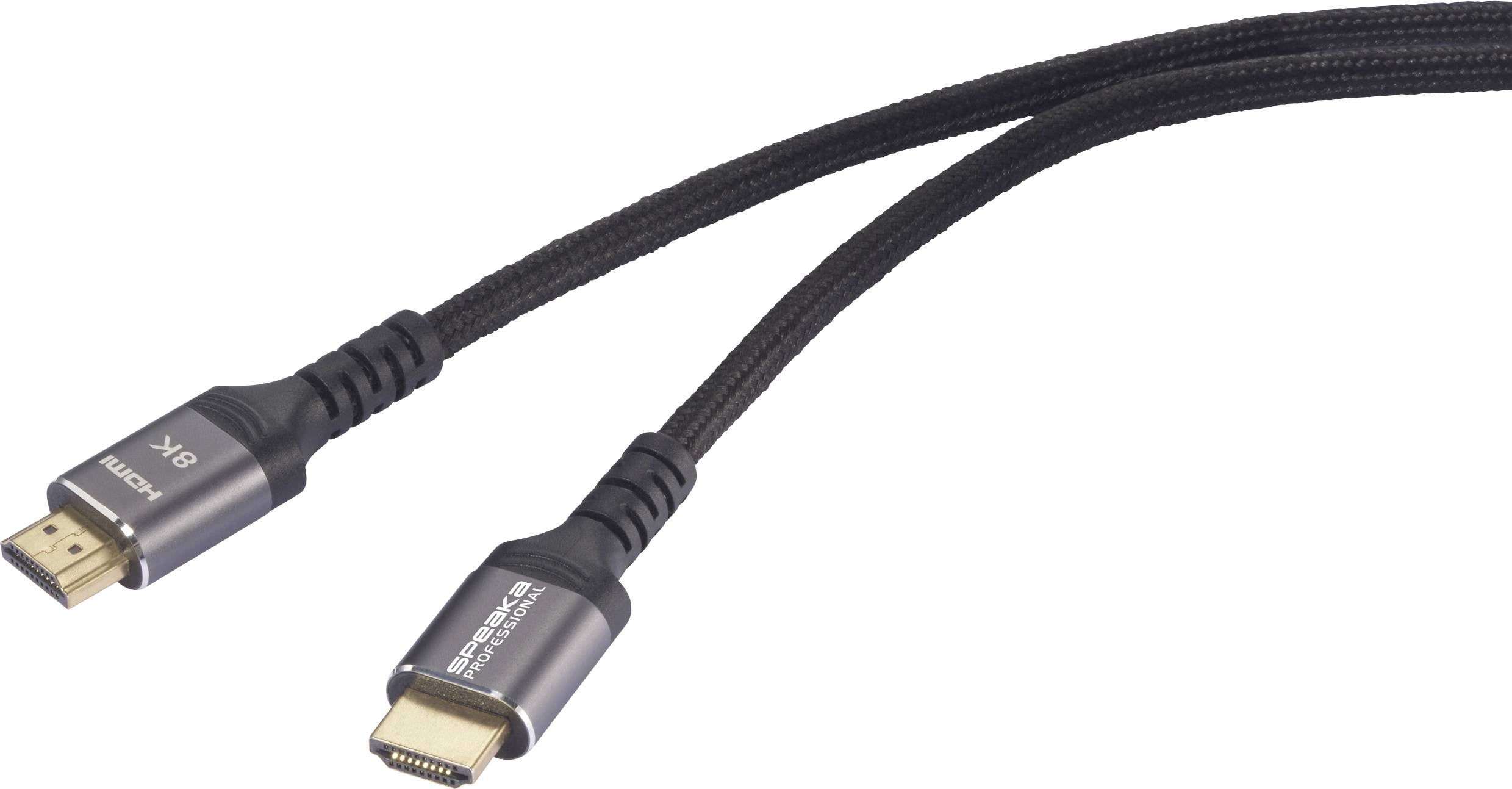

SpeaKa Professional HDMI Cable HDMI-A plug, HDMI-A plug 1.00 m Black SP-13125624 8K UHD HDMI cable
