Buy Omnitronic LH-065 Active DI box 1-channel

A silver DI box by Omnitronic, model LH-065, with rubber corners for protection. It features XLR connections on the side.

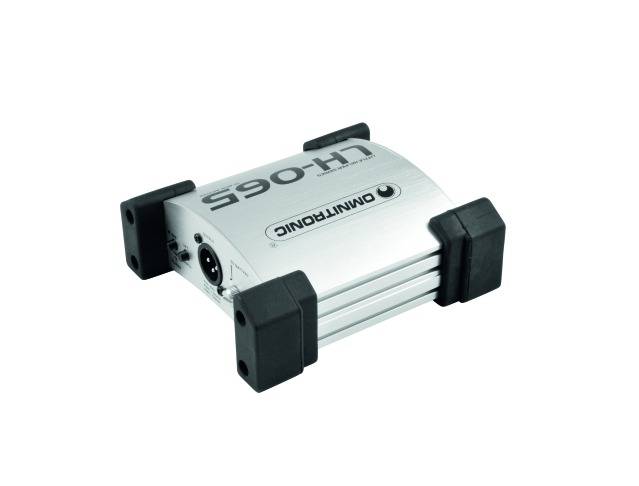

A compact, silver audio device with black plastic protection at the corners, marked with 'Omnitronic LH-095'.

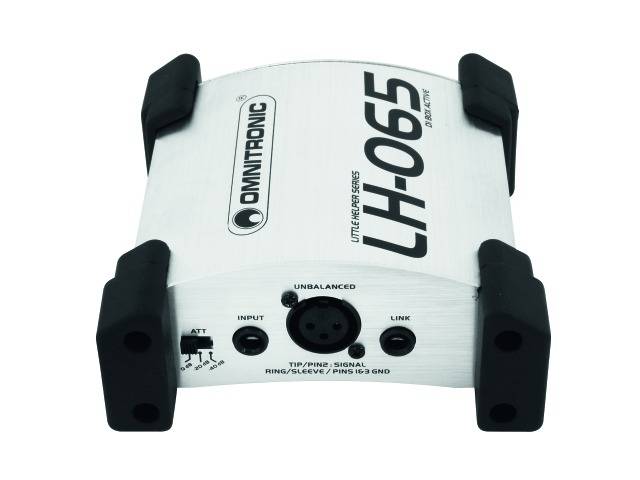

'Omnitronic LH-065' Little Helper Series, silver audio device with input and output connections, rubber-edged corners.

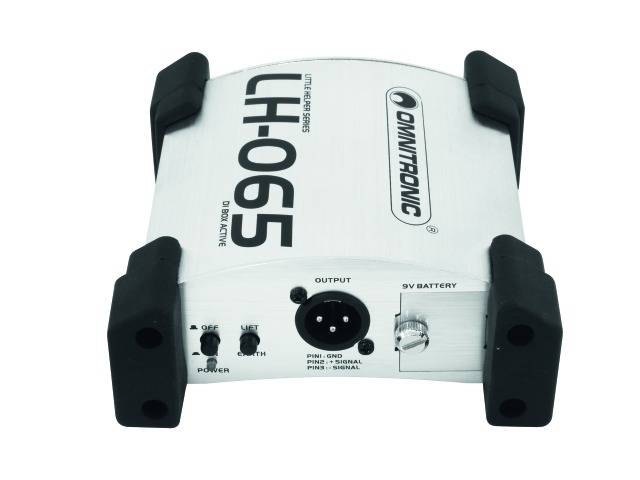

Small silver audio DI box with 'LH-065' marking. On the front panel are an XLR connector and an on/off switch.

1/4

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 60.50 / piece)

€

Report legal concerns

Highlights & Details

Omnitronic LH-065 DI box, active

1-channel DI box, active

Technical specifications

Power supply: 9 V block
Power consumption: Approx. 65 mA
Battery life: 6 - 8 hours
Frequency response: 10 Hz - 30 kHz
Input impedance 470 kOhm
Output impedance 600 Ohm
Maximum output level 6 dBu
Dynamic range> 100 dB
Connections Input: XLR and 6.3 mm jack, unbalanced.
Connections output: XLR, bal.
6.3 mm jack, unbalanced (Parallel output)
0.5 % distortion factor
Dimensions 150 x 130 x 60 mm
Weight: 0.5 kg

Channels: 1

Interfaces: 6.3 mm jack in
XLR in
XLR out

Features: Ground lift switch

Weight: 0.8 kg

Width: 235 mm

Height: 95 mm

Product type: Active DI box

Description

1-channel DI box, active · Active DI-Box · 1 high-ohm, unbalanced signal input, either XLR or 6.3 mm jack · 1 low-ohm balanced XLR output · 1 instrument loop-through output, 6.3 mm jack · Converts unbalanced line signals (e.g. from instruments) into balanced XLR output signals for connection to a mixing desk · Switchable input attenuation 0 dB, -20 dB, -40 dB · Ground lift switch to avoid signal interference and humming loops · Modern convex housing design with rubber surrounds for a secure stand · Stackable · Cables can be routed under the housing · Power supply via 9 V block battery (included)

This text is machine translated.
