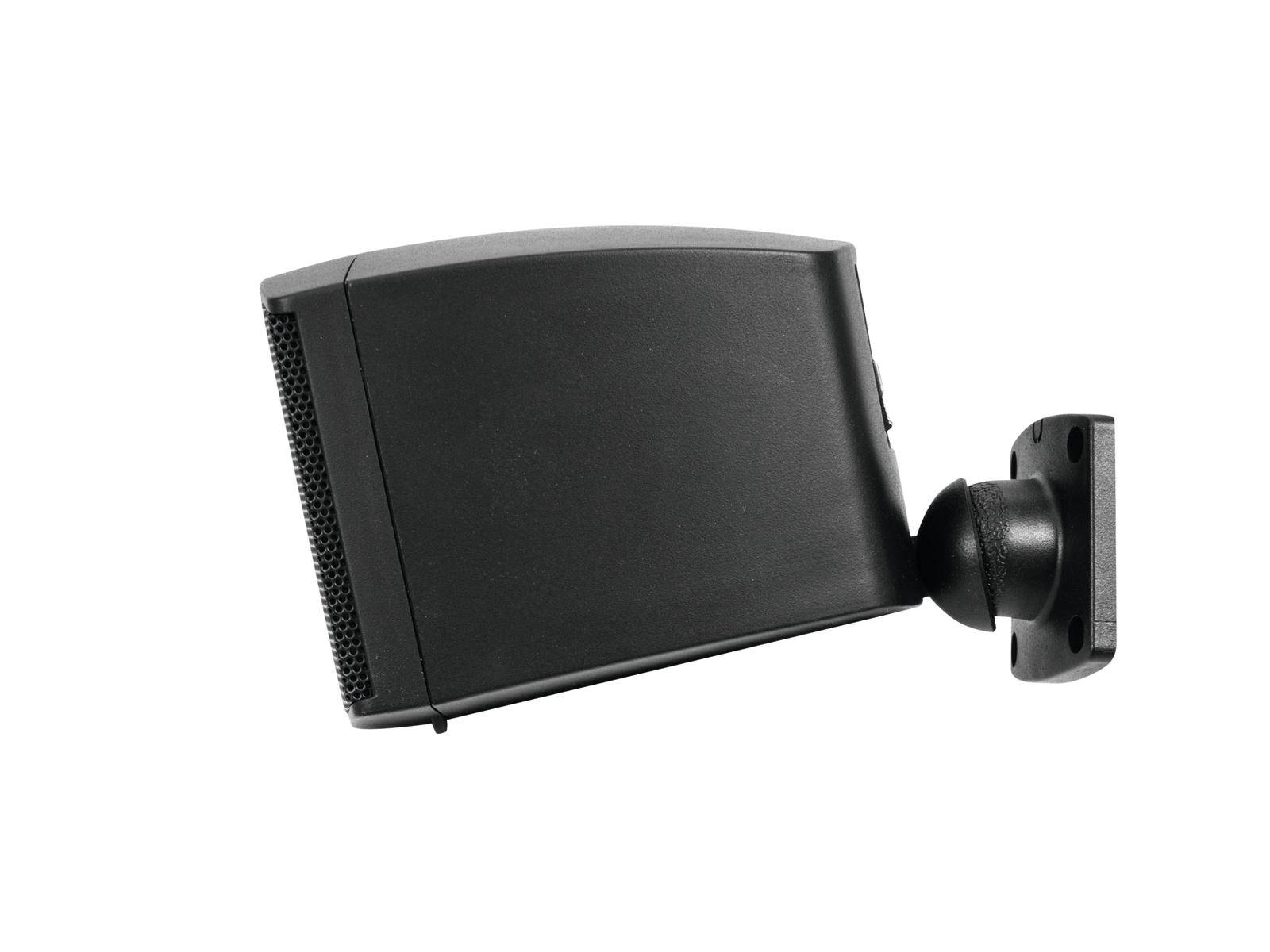

Omnitronic OD-2 Wall speaker 30 W Black 1 Pair
EAN:
Part number:
Item no:
Highlights & Details
OMNITRONIC OD-2 Wall Loudspeaker 8 Ohm black 2 x
- 8-Ohm-Beschallungsboxen for universal use (also known as 100-V versions "T")
- 1-way system with 30 W power (and 100V transformer)
- 6 cm wide-band speaker (2.5")
- Attractive ABS-plastic casing with metal grille (impact-resistant and scratch-resistant)
- Stable mounting plate with rotary and swivel joint allows the wall and ceiling mounting in different angles
- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area
- This text is machine translated.
Technical specifications
- Nominal load capacity: 15 W RMS
- Load-carrying capacity progra mm: 30 W
- Speakers: 6 cm (2.5")
- Connection: Federkle softly
- Sensitivity: 88 dB (1 W, 1 m)
- Max. Sound pressure: 92 dB (1 m)
- Impedance 8 Ohm
- Frequency range 150 Hz - 22 kHz
- Angle of radiation 60° x 60° (HxV):
- Dimensions (L x W x H): 111 x 87 x 90 mm
- Weight (pieces): 0.5 kg (incl. mounting plate)
- Shipping weight: 1,120 kg
- Product type
Wall speaker
- RMS capacity
15 W
- Max. load
30 W
- Power levels
30 W
- Max. sound pressure
92 dB
- Features
Ceiling speaker
- Factory colour
Black
- Material
ABS plastic
- Weight
0.5 kg
- Length
111 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375516 Omnitronic OD-2 Wall speaker 30 W Black 1 Pair
Information
Information 1375516 Omnitronic OD-2 Wall speaker 30 W Black 1 Pair
Description
Features
- Universal wall loudspeaker pair
- 8-Ohm-Beschallungsboxen for universal use
- 1-way system with 30 W power
- 6 cm wide-band speaker (2.5")
- Attractive ABS-plastic casing with metal grille (impact-resistant and scratch-resistant)
- Stable mounting plate with rotary and swivel joint allows the wall and ceiling mounting in different angles

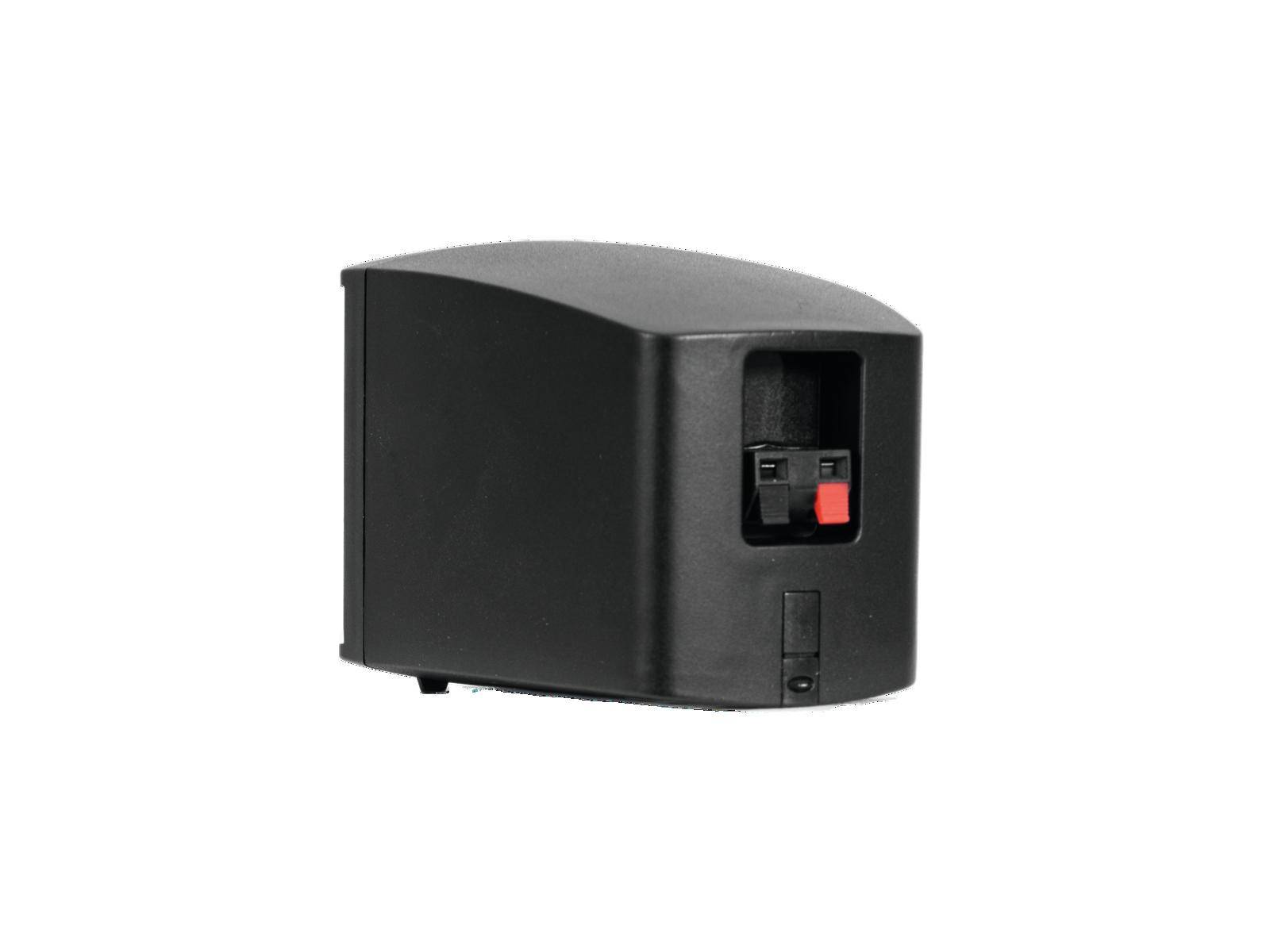

- Spring-loaded terminals
- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
