Omnitronic WAMS-12BT2 Karaoke
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 100-240 V AC, 50/60 Hz; or; 12V DC
- Protection class SK I
- Power output 80 W RMS
- Power connection: Power supply via cold devices (M) Installation version power connection cable with safety plug (supplied); battery/rechargeable battery
- Cable length: 1.5 m
- Device fuse 5 x 20 mm, T 1.6 A fuse can be replaced
- Battery type 1 x Lithium-Ion 12.8 V/8000 mAh/102.4 Wh
- Battery: Operating time up to 4h depending on used program; charging time 4h
- Frequency range 50 20000 Hz
- Distortion factor: Less than 0.1 % at 1 kHz
- Sensitivity 98 dB (1W/1m)
- Max. Sound pressure level 121 dB
- Bluetooth device name: Omnitronic
- Support system: Flange: Ø 35 mm.

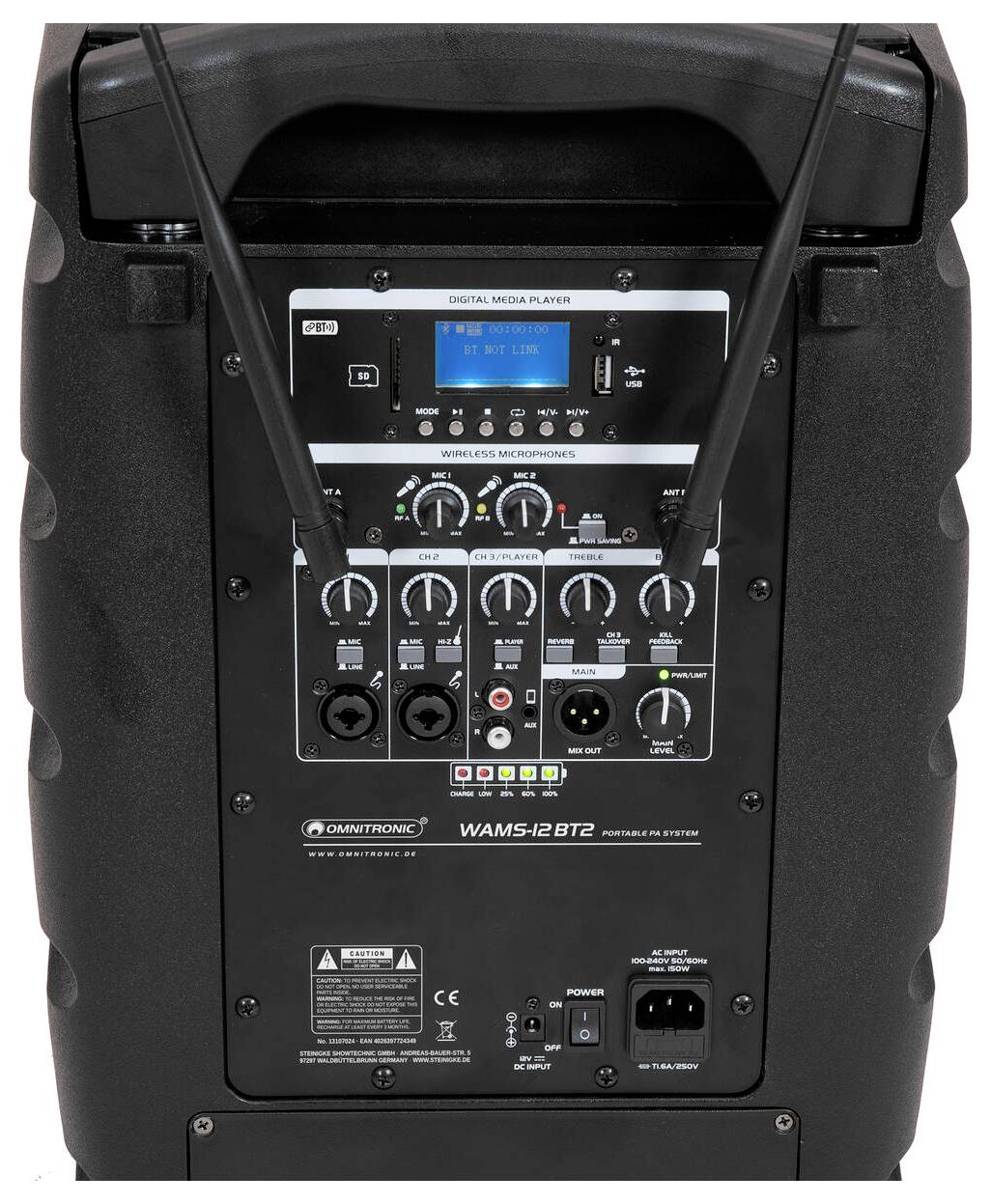

- Controls: Volume control per channel, echo effect control, Talkover
- Power status LED, limit, charge status indicator
- Connections:
- Input: Line via 1 x 3.5 mm jack plug (stereo) in version;
- Input: Line via 1 x stereo cinch;
- Input: Mic/line via 2 x 3-pin XLR/6.35-mm jack (W) combo jack bushing;
- Output 3-pin XLR
- Equaliser 2-band controller
- 1 x 12" woofer with ferrite magnet
- Basket material: Steel
- Conus material: Cardboard / paper; 1 x 1" tweeters
- Speaker type: Wireless PA system
- Switch: On/off switch
- Material: plastic
- Colour, black
- Dimensions: Length: 31 cm; width: 36 cm; height: 56 cm
- Weight: 13.30 kg
- Microphone:
- Power supply 3V DC
- Capsule type: Dynamic
- Directionality: Kidney
- Battery: 2 x Mignon (AA) (not included in delivery)
- Range: Up to 30 m.
- Frequency range 863 - 865 MHz
- Dimensions: Length: 24 cm; diameter: Ø 5.1 cm
- Audio player:
- Bluetooth control; IR remote control
- Bluetooth: Version: 5 with Stereo Link (TWS)
- Audio player USB + SD + Bluetooth
- Range: Bluetooth: Up to 20 m.
- Frequency band: 2.4 GHz
- Music format MP3, WMA
- Suitable storage media: USB devices/SD cards of up to 32 GB (FAT 32)
- Remote control. Battery:1 x button cell 3.0 V CR2025 Lithium-manganese installed
- Product type
Karaoke
- Power supply (LOV)
rechargeable
mains-powered
- RMS power
80 W
- Max. battery life
4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729706 Omnitronic WAMS-12BT2 Karaoke
Information
Test Summary Report 3729706 Omnitronic WAMS-12BT2 Karaoke
Security datasheet
Security datasheet 3729706 Omnitronic WAMS-12BT2 Karaoke
Description

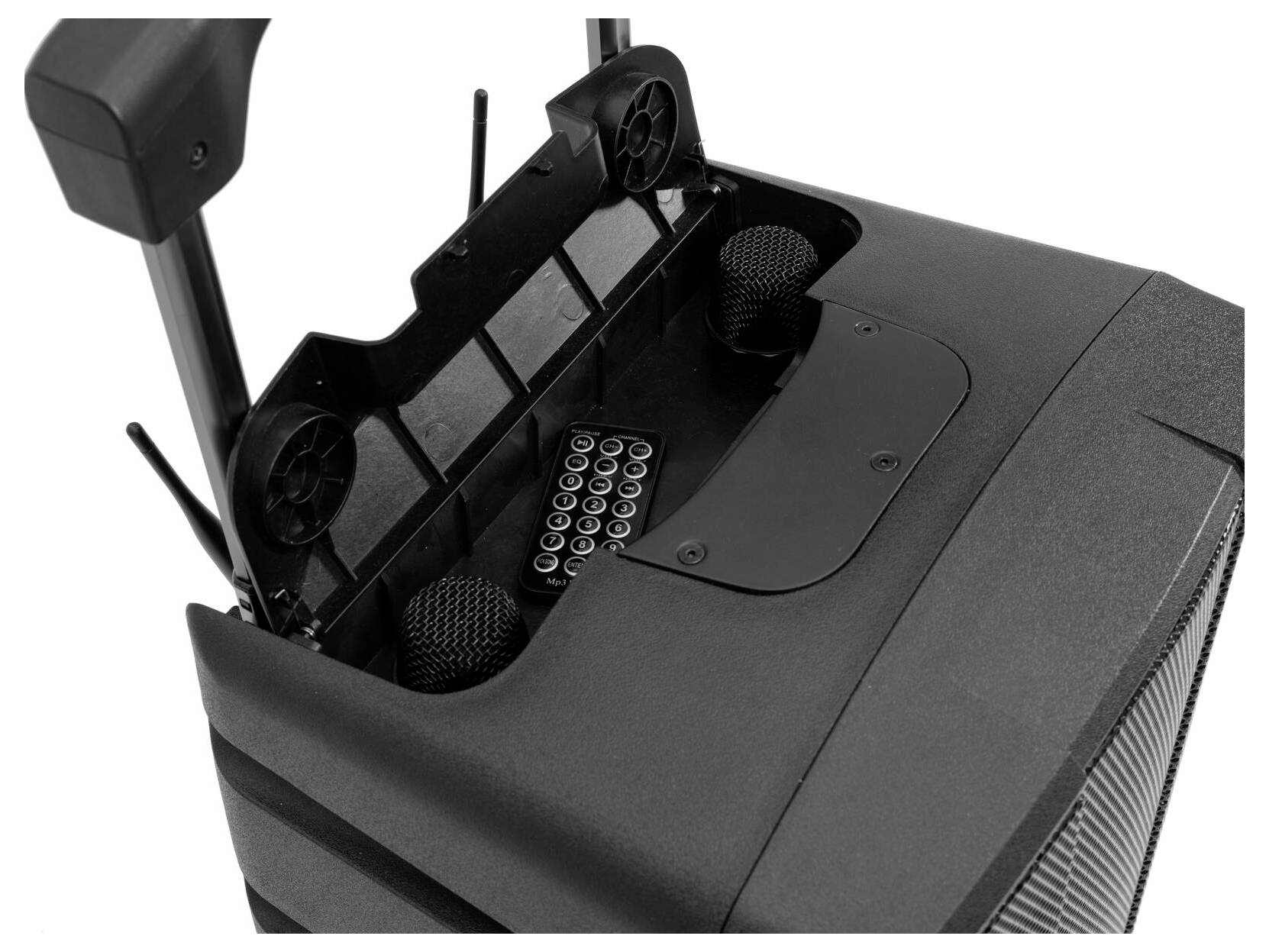

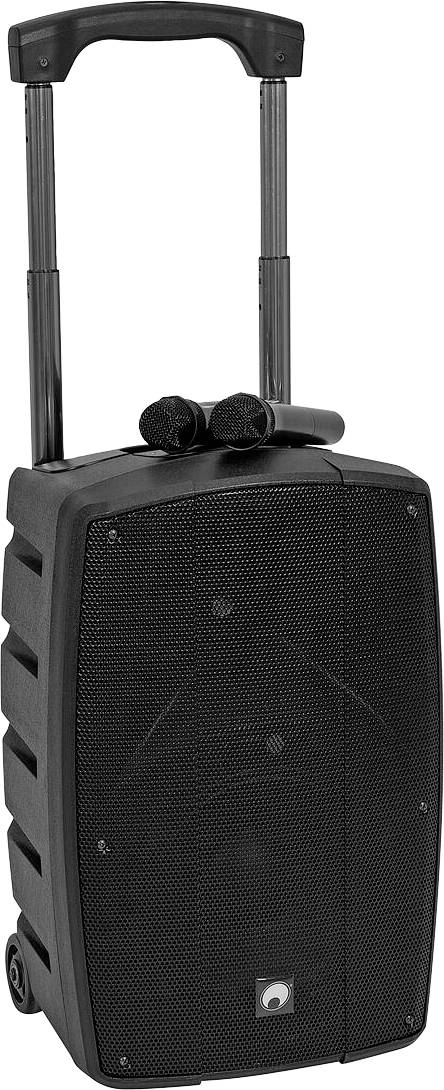

Mobile 12" PA system with battery operation, audio player, Bluetooth and 2 radio microphones. Portable all-in-one amplifier system with 80 watt power. 3-channel Power mixer Highly efficient and battery-protecting Biamp amplifier with DSP control. Stereo Bluetooth link for wireless stereo operation with 2 linked systems. 2 mono input channels Mic/Line and Hi-Z instrument (CH 2) with echo effect and feedback suppression. 1 stereo input channel for internal audio player or external line signal sources with Talkover switch. UHF-radio receiver with 2 suitable hand microphones. 1 more battery can be retrofitted for up to 8 hours operating time. Signal limiter and crossover filter, DSP-controlled. Common 2-band EQ for bass and treble Wireless, flexible and versatile. Battery life up to 4h, depending on program used. Metallic grille in black. With accessories compartment For applications such as: Theatre; mobile use; wedding/gala/events; product presentations and lectures. Audio player. Can be controlled via Bluetooth; IR remote control. Bluetooth: Range of up to 20m. 2.4 GHz world-wide registration and call free. Microphone Directionality: Kidney. Range: approx. 30m UHF 863 - 865 MHz registered and uncharged in Europe.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2 x Microphone
- 2 x Operating manual
- 1 x Power cable/power cable
- 1 x battery
- 1 x compact box
- 1 x declaration of conformity
- 1 x battery
- 1x remote control
- 2 x Antenna.
