Online USV X1500 UPS 1500 VA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

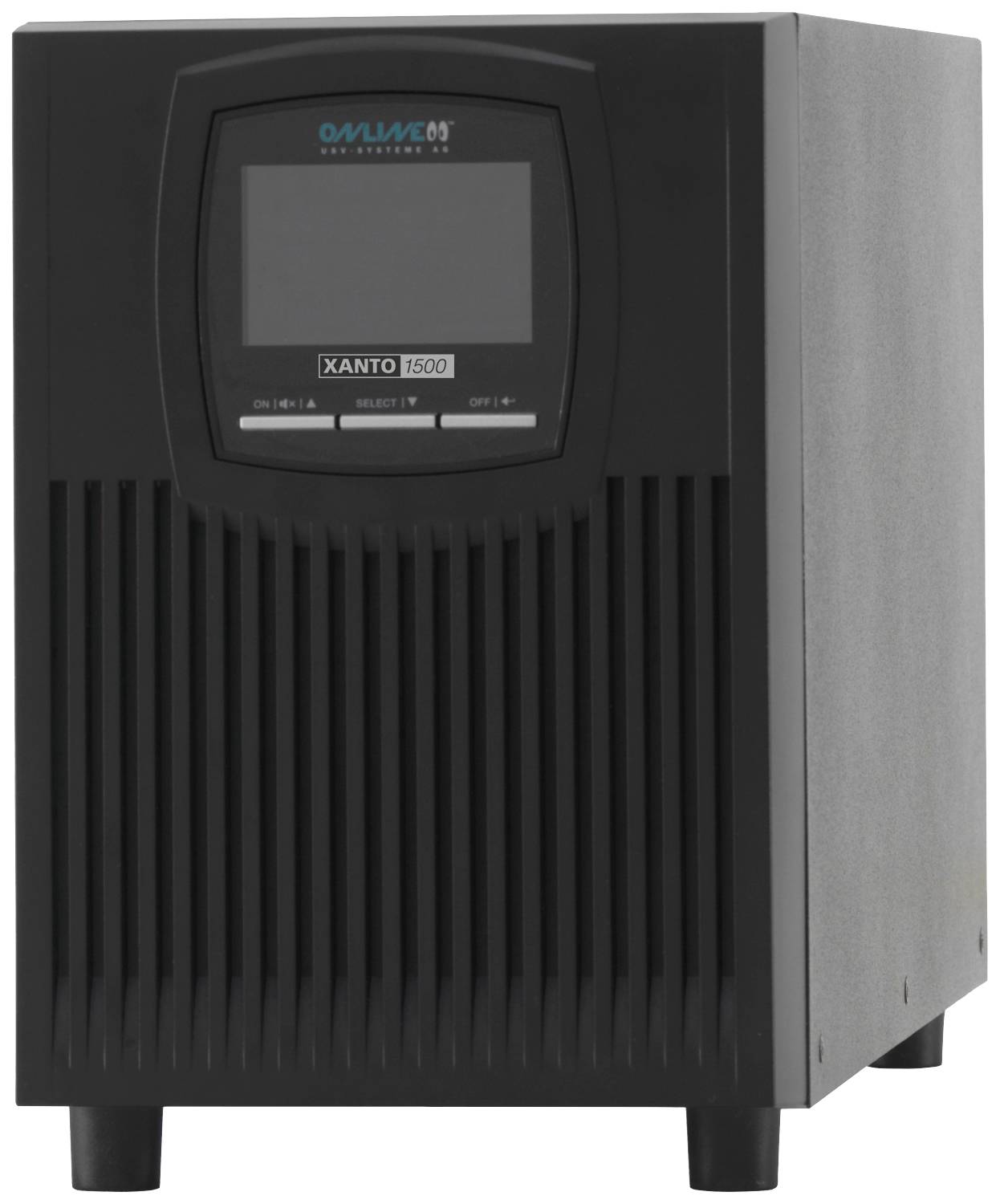

Online USV X1500 UPS 1500 VA

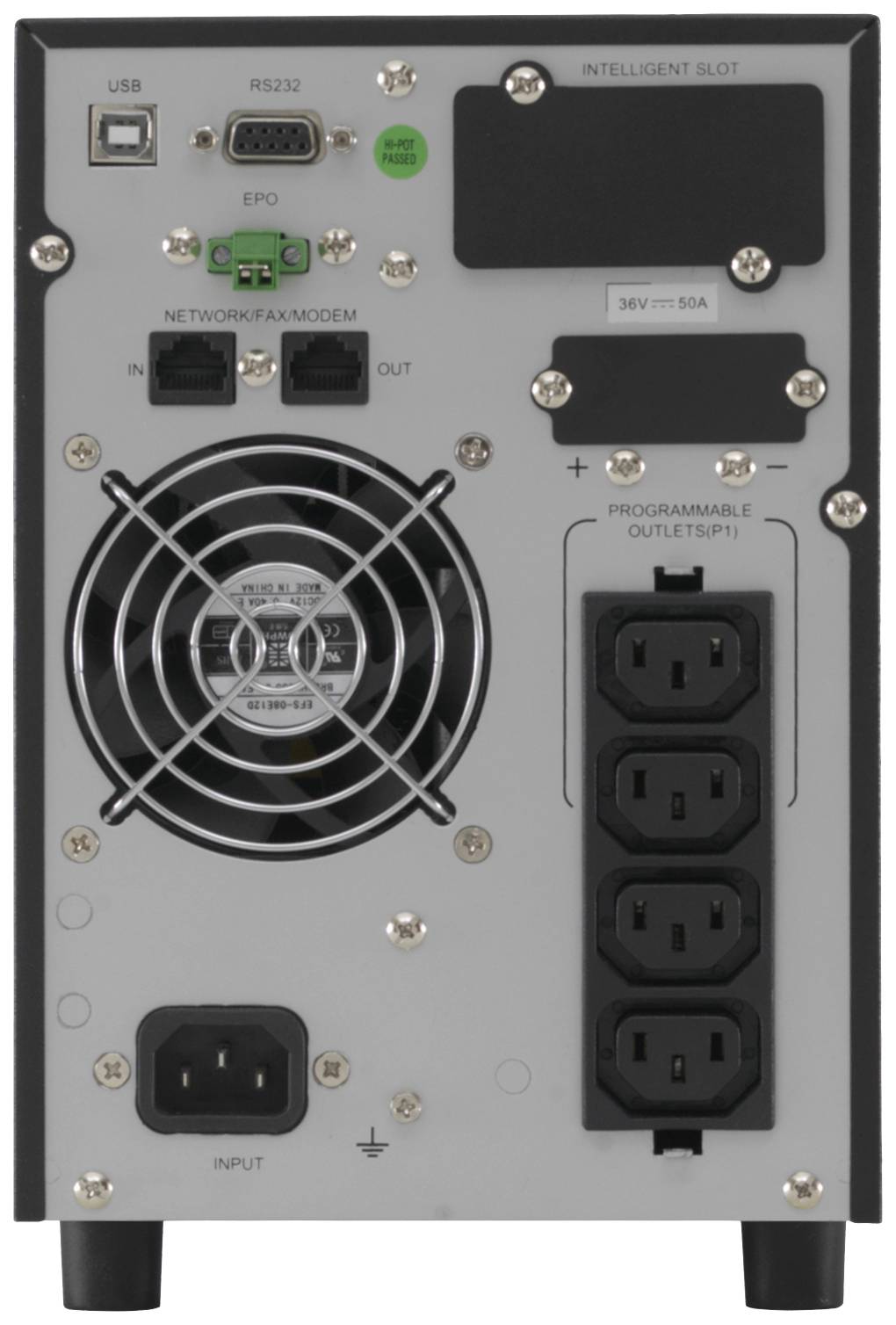

- 1500 VA / 1500 W, 15 minutes bridging timeTower modelDual-converter technology with the highest safety level VFI-SS-111Path-breaking DYNAMIC Power TECHNOLOGY for more watt97% Efficiency: Low operating costs due to high energy efficiencyPerfect sine output voltageScalable bridging time with additional battery packs 4Automatic bypass in case of overload, e.g. when switching on large loadsFrequency converter operationDeep discharge protection for batteriesCold-start function for starting the UPS system without input voltageRS-232, USB and emergency stop interfaceOvervoltage protection for data and telephone linesSwitchable output sockets for more bridging time of critical consumersSlot for optional SNMP adapter or AS400/relay cardIncludes DataWatch shutdown, management and monitoring software for all operating systems (WIN, LINUX, UNIX, MAC, VMware, Citrix etc.)
Technical specifications
- Product type
UPS
- Nominal power
1500 VA
- No. of outputs
4 x
- with surge protection
4
- Output
IEC C13 socket
- Features
Alarm
LCD
USB port
- Surge protection for
Phone/fax (RJ11)
Mains outlets
- Type
X1500
- Weight
0
- UKCA
not relevant
- Operating temperature (T-T)
0 - 40 °C
- Number of batteries supported
3
- Serial ports quantity
1
- Battery recharge time
4 h
- Serial interface
yes
- Audible alarm(s)
yes
- Emergency Power Off (EPO)
yes
- Output power capacity
1.5 kVA
- Typical backup time at half load
15 min
- Typical backup time at full load
6 min
- USB port
yes
- RS-232 ports
1
- Mean time between failures (MTBF)
50000 h
- Operating relative humidity (H-H)
20 - 90 %
- Cold start
yes
- Input operation voltage (max)
300 V
- Input operation voltage (min)
110 V
- Output operation voltage (min)
208 V
- Output operation voltage (max)
240 V
Documents & Downloads
Datasheet
Datasheet 2757395 Online USV X1500 UPS 1500 VA
User & Safety Instructions
User & Safety Instructions 2757395 Online USV X1500 UPS 1500 VA
Description
The UPS XANTO series provides maximum protection for server room, data center, and edge data center.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Online UPS XANTO 1500
- USB-interface cables
- 3x 10 A cold device extension
- Quick start guide.
