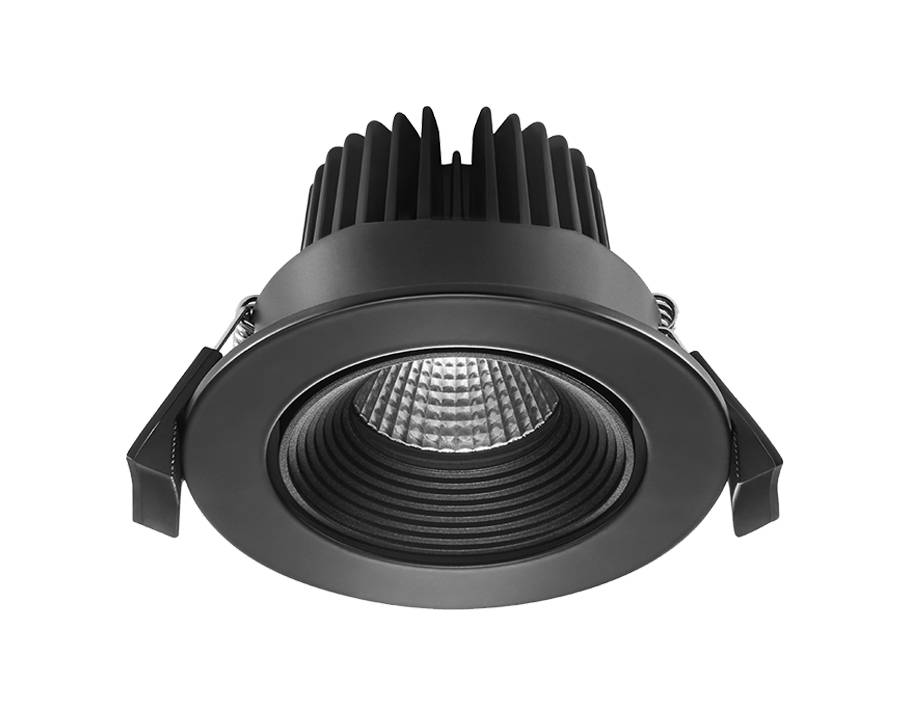

Opple 541003538400 541003538400 LED recessed light LED (monochrome) w/o 7 W Black
EAN:
Part number:
Item no:
Highlights & Details
Opple lighting LED downlight 2700K LEDSPO #541003538400
- Power= 7 W Total luminous flux= 520 lm Colour temperature= 2700 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Socket: Without
- Material of housing: Aluminium
- Black enclosure
- Cover material: Transparent plastic
- Surface brushed: No.
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming of phase section: Yes
- Dimming of leading edge: Yes
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss
- Light distributor: Reflector
- Light distribution: Symmetric
- Radiation angle: Medium radiation 21-40°
- Rated life L70/B50 at 25 °C: 50000 h
- Protection type (IP) IP44
- Impact strength: IK02
- Protection class: II
- Rated ambient temperature according to IEC62722-2-1: -20..40°C.
- Max. System power 7 W
- Light color: White
- Colour temperature: 2700 K
- Luminous flux: 520 lm
- Rated light current according to IEC 62722-2-1: 520 lm
- Power factor 0.9
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 85 mm
- Height/depth 53 mm
- Length: 85 mm
- Outer diameter: 85 mm
- Installation diameter 68..76 mm
- Type of wiring: Finish
- Max. Number of lights circuit breaker B16: 314
- Max. Number of lamps line circuit breakers C16: 314
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:750°C - 30 s.
- Light output 74 lm/W
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- Operating voltage
230 V
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
520 lm
- Total luminous flux
520 lm
2700 K
- Colour
White
- Protection screen
Clear
- Radiation angle
30°
- Light features
Dimmable
Swivelling
- Recess diameter
76 mm
- Outside Ø
85 mm
- External length
85 mm
- External width
85 mm
IP44
- Protection class
II
- Factory colour
Black
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 85 mm x 53.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
2700 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 2700 K
- Width
85.00 mm
- Height
53.00 mm
- Length
85.00 mm
- Depth
53 mm
- (Ø)
85 mm
- Rated luminous flux
520 lm
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136096 Opple 541003538400 541003538400 LED recessed light LED (monochrome) w/o 7 W Black
Description
Modern LED recessed spotlight with 25° angle of inclination for perfect light accents. Equipped as standard with protection class IP44, perfectly suitable for humid rooms like bathrooms. Beam angle of 30° ensures perfect light accents. Pleasant warm white light (2700K) for a cozy ambience.
