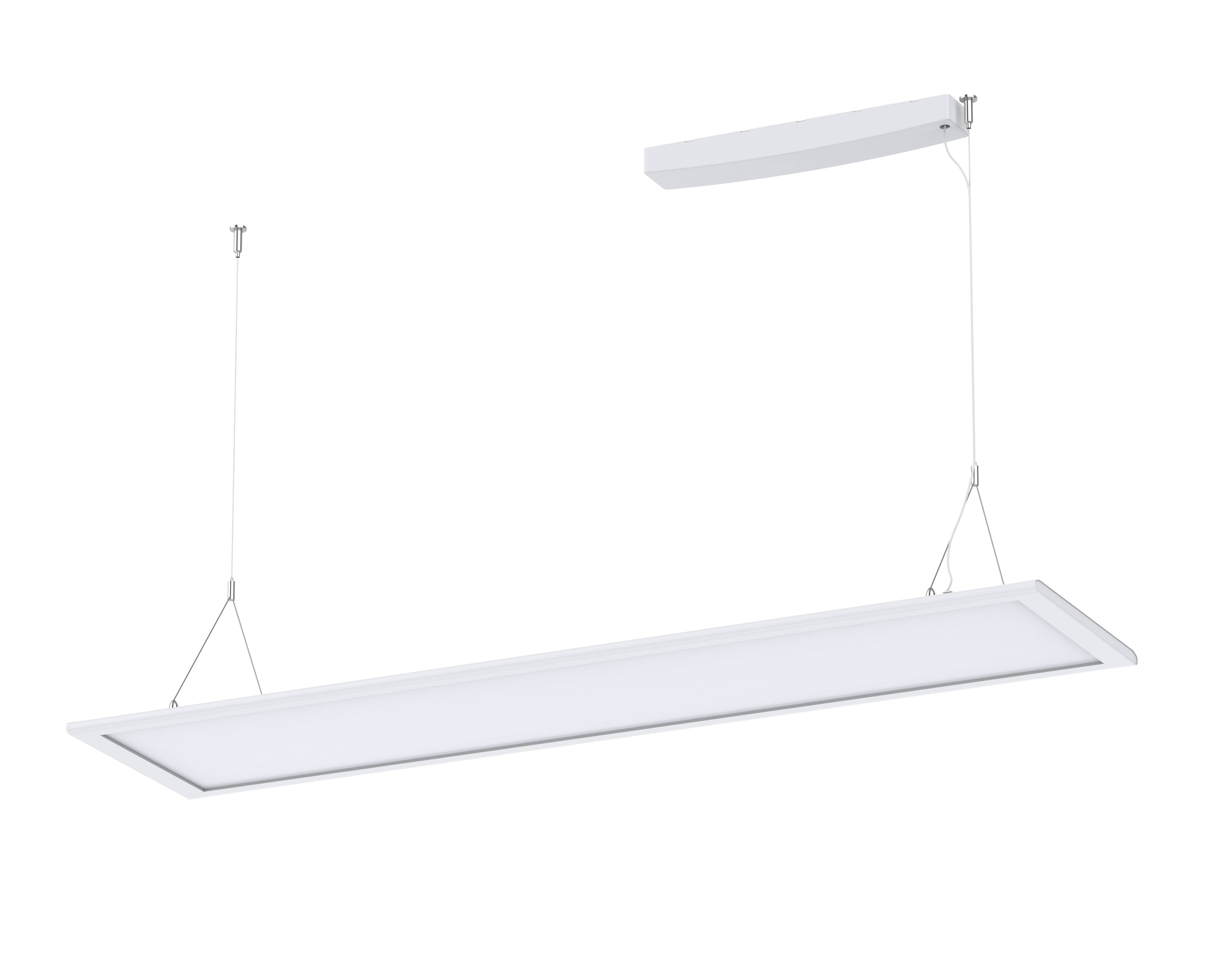

Opple 542004095200 542004095200 LED pendant light LED (monochrome) Bulb cannot be changed 34 W White
EAN:
Part number:
Item no:
Highlights & Details
Opple lighting LED pendant lamp 830/840, DALI pendant#542004095200
- Power= 34 W Total luminous flux= 4250 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: No.
- Material of housing: Aluminium
- Housing color: White
- Cover material: Plastic opal
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current 160 - .190 mA
- LED rated current at constant current 900..1050 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- DALI-2 dimming: Yes
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Reflector: Without
- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM4
- Light emission: Direct/indirect
- Rated life L70/B50 at 25 °C: 70000 h
- Protection class (IP) IP20
- Impact strength: IK02
- Protection class: II
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 34 W
- Rated light current according to IEC 62722-2-1: 4250 lm
- Light color: White
- Light output 125 lm/W
- Colour temperature 3000..4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 19
- Power factor 0.9
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 300 mm
- Height/depth 16.5 mm
- Length: 1200 mm
- With suspension: Yes
- Pendulum length 300..1700 mm
- Type of wiring: Finish
- Connection type: Plug-in terminal
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
34 W
34 W
- Light features
Dimmable
- Pendulum length (max.)
170 cm
- Protection class
II
IP20
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 1200.00 x 300.00 x 16.50 mm
n.rel.
- Type
Rectangular
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
4250 lm
4250 lm
- Width
300.00 mm
- Height
16.50 mm
- Length
1200.00 mm
- Rated luminous flux
4250 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3136666 Opple 542004095200 542004095200 LED pendant light LED (monochrome) Bulb cannot be changed 34 W White
Description
Elegant direct/indirect penned LED panel. Clear, minimalist design. Low-glare UGR19, suitable for office rooms. Flexible by 3000/4000K CCT switch and power switch.
