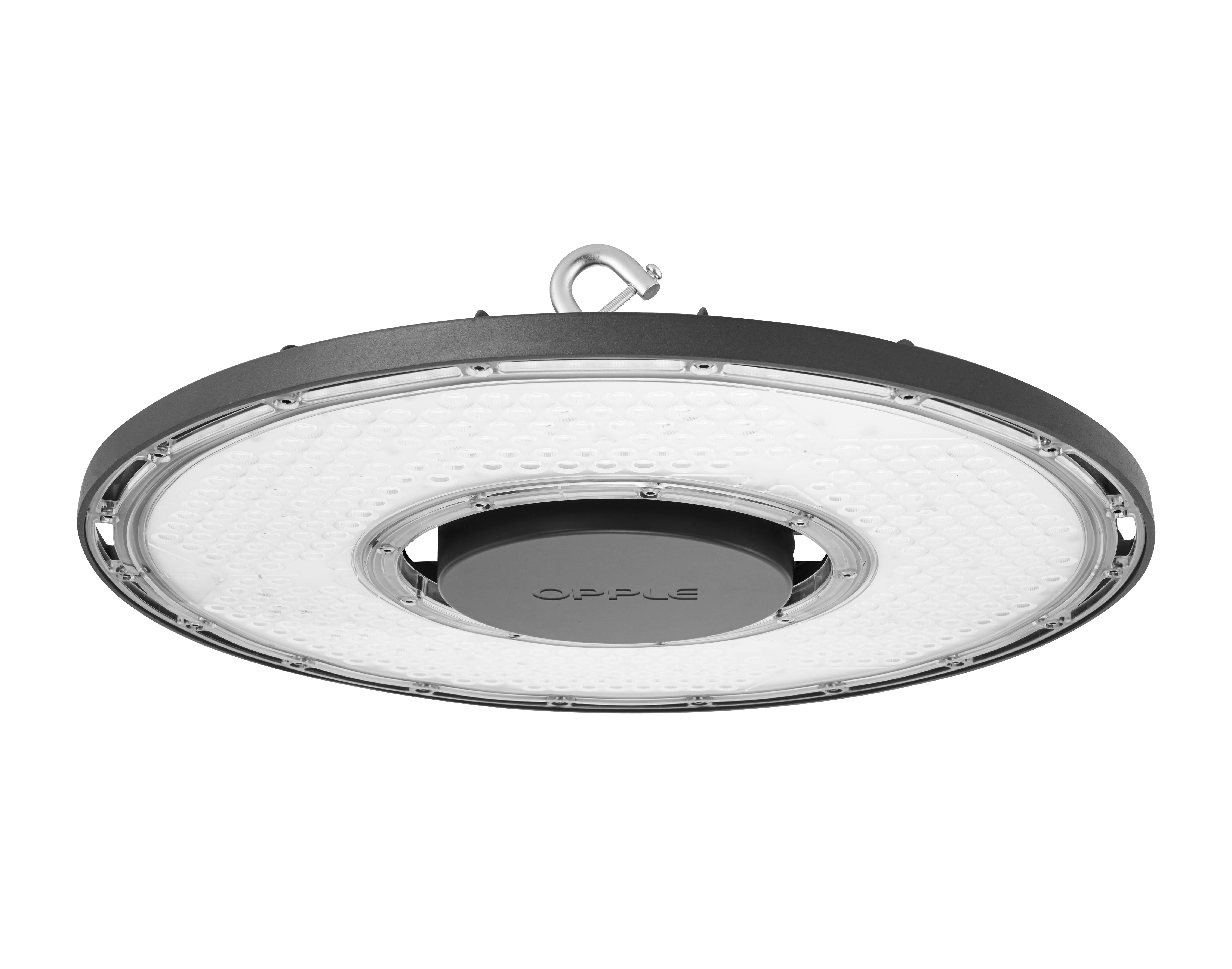

Opple 545001071000 545001071000 LED hall light LED (monochrome) w/o 130 W Grey
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Mounting type: Pendulum
- Suitable for side lighting: No.
- Socket: Without
- Material of housing: Aluminium
- Housing color: Grey
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- Removable operating device: Yes
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light: Focus lens
- Light distribution: Symmetric
- Reflector: Without
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM6
- Rated life L70/B50 at 25 °C: 100000 h
- Protection class (IP) IP66
- Impact strength: IK08
- Suitable for sports facilities: Yes
- Protection class: I
- Lamp with limited surface temperature "D-sign": Yes
- Rated ambient temperature according to IEC62722-2-1: -30..70°C.
- Integrated emergency power supply: No.
- Suitable for emergency light: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Max. System power 130 W
- Rated light current according to IEC 62722-2-1: 20800 lm
- Light output 160 lm/W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Power factor 0.9
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Adjustable radiation angle: No.
- Luminous flux can be set: No
- Width 408 mm
- Height/depth 149 mm
- Length: 408 mm
- Outer diameter: 408 mm
- Type of wiring: Finish
- With protective cover: Yes
- Product type
LED hall light
- Type
Circular
- Operating voltage
230 V
- Bulb type
LED (monochrome)
w/o
130 W
4000 K
- Colour
White
20800 lm
- Total luminous flux
20800 lm
- Light features
Incl. ballast
- Protection class
I
IP66
- Factory colour
Grey
- Material
Aluminium
- Dim
(Ø x H) 408 mm x 149.00 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
408.00 mm
- Height
149.00 mm
- Length
408.00 mm
- Depth
149 mm
- (Ø)
408 mm
- Rated luminous flux
20800 lm
- Light bulb included
Yes
- Nominal voltage
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163460 Opple 545001071000 545001071000 LED hall light LED (monochrome) w/o 130 W Grey
Description
High-quality LED Highbay solution with improved ultra flat design. High light yield of 160 lm/W. Includes membrane to prevent condensation. Equipped with IP68 plug and coupling, including safety hook and safety rope.
