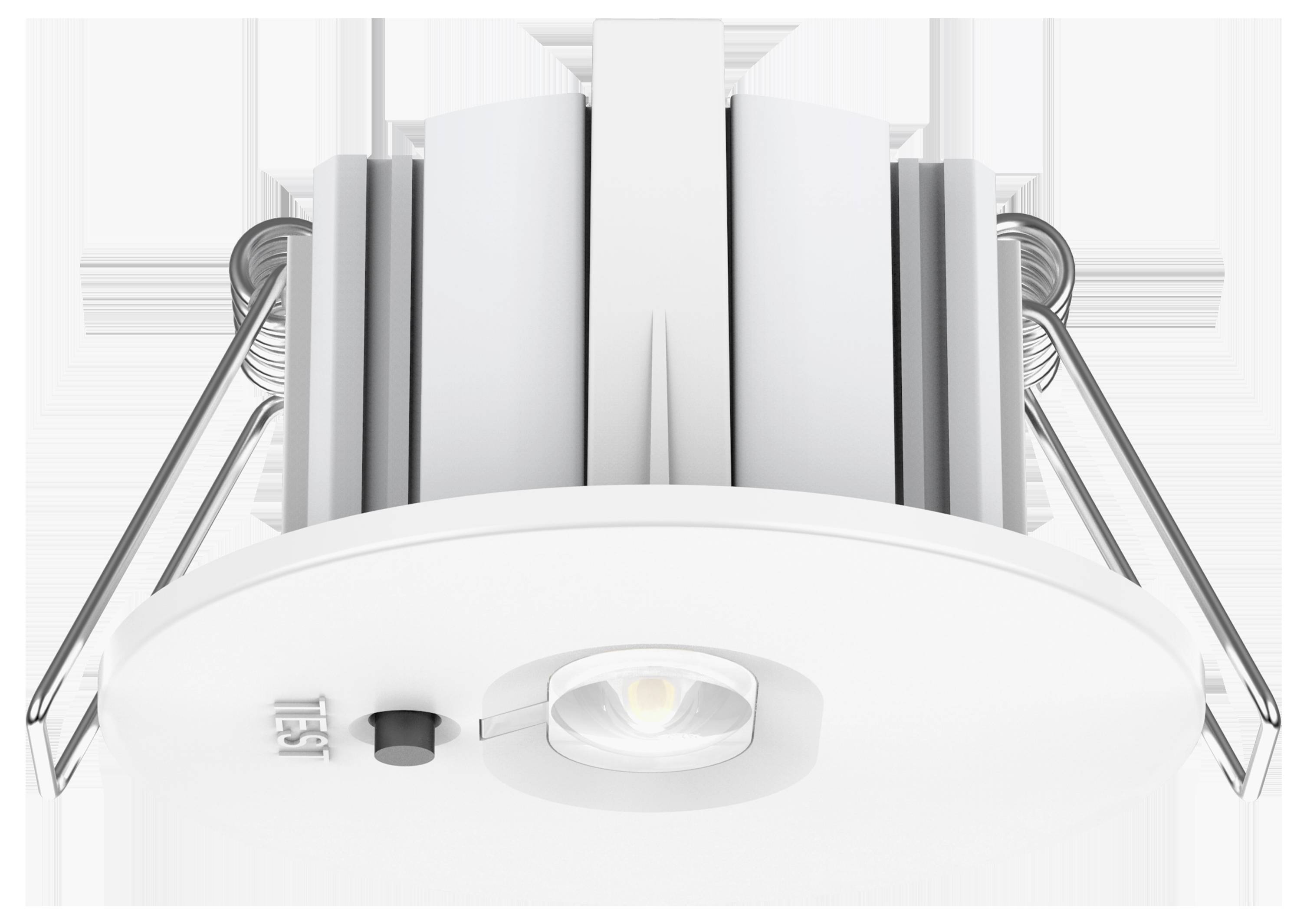

Opple 572005000300 LED safety light
EAN:
Part number:
Item no:
Technical specifications
- Width 55 mm
- Mounting type: Construction/installation
- Protection class (IP) IP20
- Protection class: II
- Impact strength: IK06
- Housing material: Plastic
- Length: 55 mm
- Nominal voltage 200..240 V
- Nominal current 30 mA
- Connection type: Unassembled connection cable
- Voltage type AC/DC
- Bulb: LED not replaceable
- Function: Emergency exit lighting
- Operating device: LED operating device voltage-controlled
- Constant luminous flux regulation: No.
- Colour temperature: 6500 K
- Height/depth 32 mm
- Type of wiring: Finish
- With bulb: No.
- Housing color: White
- Removable operating device: No.
- Max. System power 3 W
- Rated light current according to IEC 62722-2-1: 260 lm
- Installation height/depth 30 mm
- Installation diameter 50 mm
- External diameter: 55 mm
- Cover material: Without cover
- Light: Focus lens
- Rated ambient temperature according to IEC62722-2-1: 0..45°C.
- Power factor 0.3
- Conductor cross-section: 0.5 mm²
- With remote control: No.
- Lamp with limited surface temperature "D-sign": No.
- Max. Number of lights circuit breaker B16: 220
- Max. Number of lamps line circuit breakers C16: 300
- Rated life L70/B50 at 25 °C: 68000 h
- Flicker value PST LM: 1
- Strobe effect value SVM: 0.4
- With pictogram: No.
- Monitoring device: Monitoring module (centrally supplied system)
- Suitable for standby switching: Yes
- Suitable for continuous switching: Yes
- With remote switch connection: No.
- Feed: Decentralized (single battery)
- Battery composition: Lithium-ion
- RAL-Number housing: 9003
- Luminous flux in standby mode: 0 lm
- Nominal operation time 3 h
- Product type
LED safety light
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549015 Opple 572005000300 LED safety light
Description
Versions available with built-in driver or external driver . Standard with 3-hour emergency kit with LiFePO4 battery for long life. Accessories for different mounting types available.
