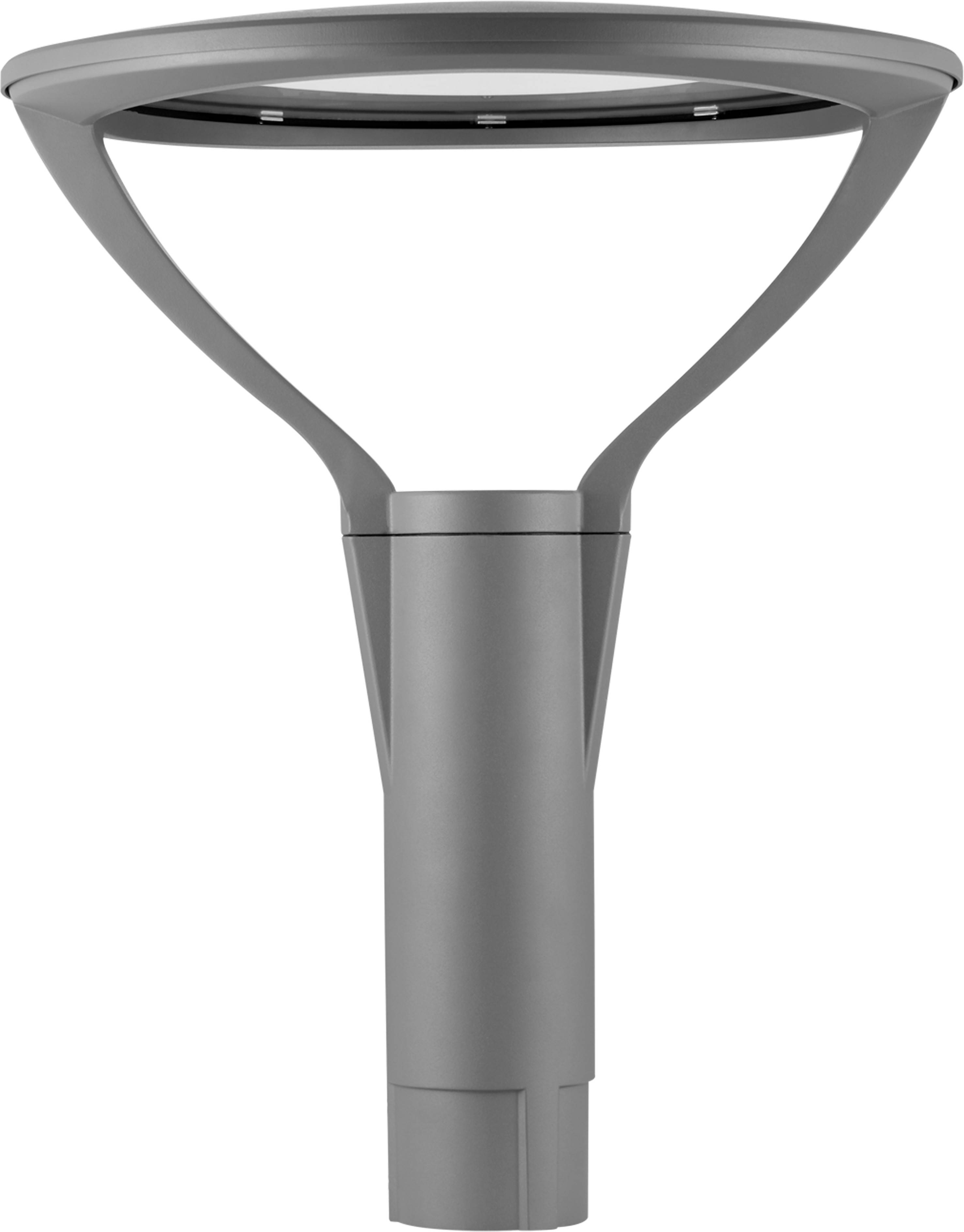

Opple 708000005200 708000005200 LED lamp post LED (monochrome) w/o 33 W Grey
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Bulb: LED not replaceable
- With bulb: Yes
- Mounting type: Attachment
- Socket: Without
- Material of housing: Aluminium
- Housing color: Grey
- Cover material: Glass matt/satin
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current: 750 mA
- Rated LED current at constant current 750 mA
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Color consistency (McAdam ellipse): SDCM6
- Rated life L70/B50 at 25 °C: 100000 h
- Protection class (IP) IP66
- Adjustable lens: No.
- Impact strength: IK08
- Protection class: I
- Lamp with limited surface temperature "D-sign": Yes
- Rated ambient temperature according to IEC62722-2-1: -30..50°C.
- Remote control: Without
- With radio control: No.
- Constant luminous flux regulation: No.
- With program-controlled light control: No.
- With connection cable: Yes
- Cable length: 0.5 m
- Max. System power 33 W
- Rated light current according to IEC 62722-2-1: 4100 lm
- Light output 125 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 70-79
- Power factor 0.9
- Width 450 mm
- Height/depth 565 mm
- Length: 450 mm
- Diameter 450 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED lamp post
- Operating voltage
230 V
- Bulb type
LED (monochrome)
w/o
33 W
4000 K
4100 lm
- Total luminous flux
4100 lm
- Light features
Dimmable
- Protection class
I
IP66
- Factory colour
Grey
- Material
Aluminium
- Dim
(Ø x H) 450 mm x 565.00 mm
n.rel.
- Colour rendering index
70-79
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
450.00 mm
- Height
565.00 mm
- Length
450.00 mm
- Depth
565 mm
- (Ø)
450 mm
- Rated luminous flux
4100 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135862 Opple 708000005200 708000005200 LED lamp post LED (monochrome) w/o 33 W Grey
Description
Professional LED mast lamp with optimum light output. Inserts itself well into the existing environment. Various optics for adaptation to the application and for reducing the blinding. Die-cast aluminum housing for optimum heat dissipation. IP66 and sea-water resistant.
