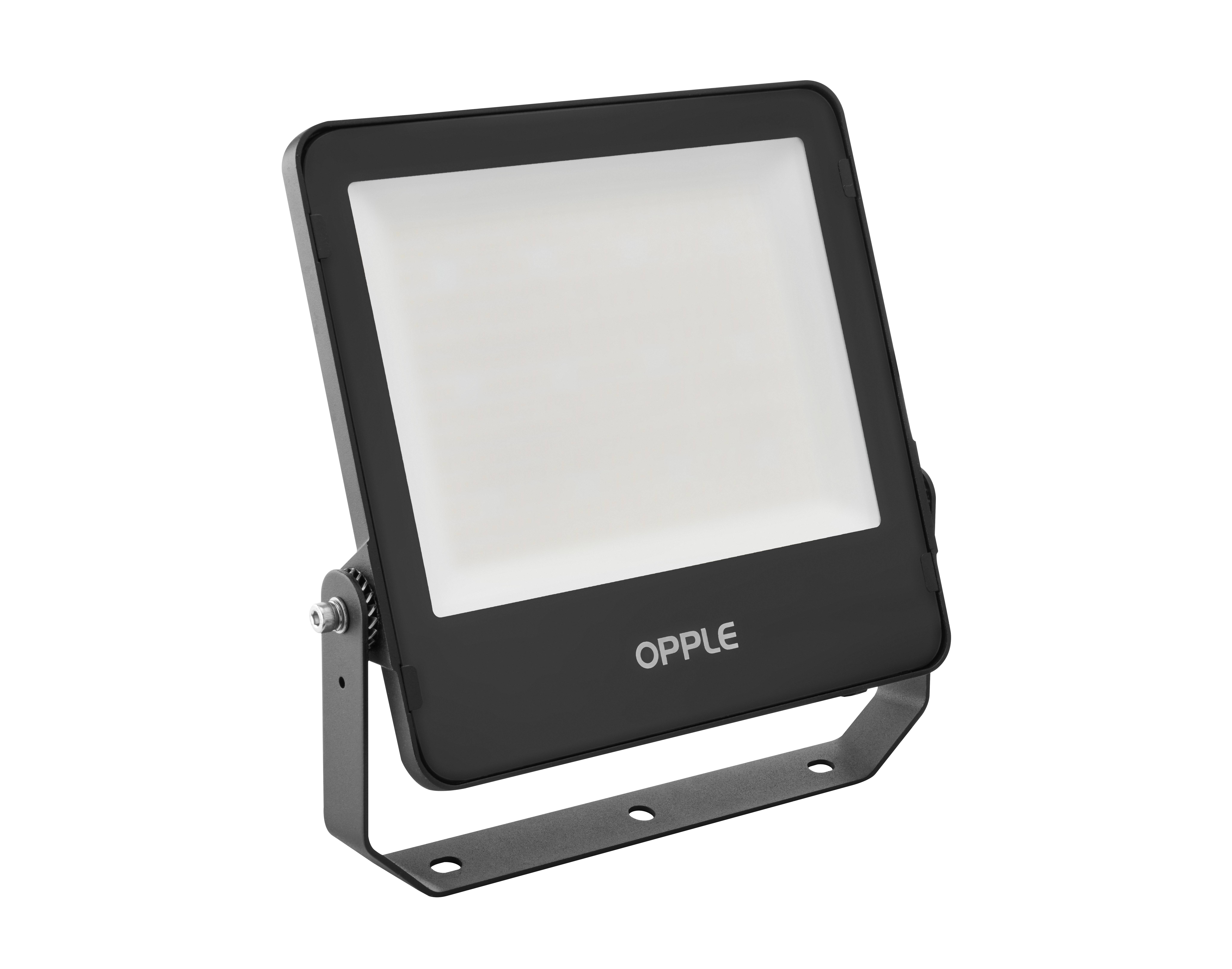

Opple 709000073700 709000073700 LED floodlight 200 W Colours (LEDs): White
EAN:
Part number:
Item no:
Highlights & Details
Opple lighting LED floodlight 830, BLK Flood #709000073700
- Power= 200 W
- Total luminous flux= 24000 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal/floor mounting: Yes
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Socket: Without
- Black enclosure
- Cover material: Glass opal
- Surface brushed: No.
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: White
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 50000 h
- Constant luminous flux regulation: No.
- Protection class (IP) IP66
- Impact strength: IK07
- Protection class: I
- Rated ambient temperature according to IEC62722-2-1: -30..50°C.
- Max. System power 200 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Rated light current according to IEC 62722-2-1: 24000 lm
- Power factor 0.9
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 333 mm
- Height/depth 50 mm
- Length 400 mm
- Type of wiring: Finish
- Lamp with limited surface temperature "D-sign": No.
- Max. Number of lights circuit breaker B16: 6
- Max. Number of lamps line circuit breakers C16: 10
- Integrated emergency power supply: No.
- Light output 120 lm/W
- Photobiological safety according to EN 62471: RG1
- IFTTT support available: No.
- Color consistency (McAdam ellipse): SDCM4
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED floodlight
- Operating voltage
230 V
- Bulb type
LED (monochrome)
w/o
200 W
3000 K
- Colour
White
24000 lm
- Total luminous flux
24000 lm
- Light features
Incl. ballast
Suitable for wall mounting
Upright or horizontal orientation
Swivelling
Ceiling mount option
- Radiation angle
80°
- Protection class
I
IP66
- Factory colour
Black
- Material
Glass
- Dim
(L x W x H) 400.00 x 333.00 x 50.00 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Width
333.00 mm
- Height
50.00 mm
- Length
400.00 mm
- Rated luminous flux
24000 lm
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135783 Opple 709000073700 709000073700 LED floodlight 200 W Colours (LEDs): White
Description
Including membrane to prevent condensation.
