Name: Opple 715000008700 715000008700 LED ceiling light LED (monochrome) Built-in LED 22 W White
Brand: Opple
SKU: 3136465

Highlights & Details

Opple lighting LED wall/ceiling lamp 3000/4000K, BLE wall-Mo#715000008700

Power= 22 W
Total luminous flux= 2500 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Housing color: White
Cover material: Plastic opal
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 270 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: No.
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dimming RF: Yes
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Light distributor: Diffuser lens/-optic/-panel
Light distribution: Symmetric
Radiation angle: Extremely wide radiation >80°
Color consistency (McAdam ellipse): SDCM6
Light emission: Direct
Rated life L70/B50 at 25 °C: 50000 h
Protection class (IP) IP54
Impact strength: IK08
Protection class: II
Rated ambient temperature according to IEC62722-2-1: -20..45°C.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Filament testing according to IEC 60695-2-11:850°C - 30 s.
Max. System power 22 W
Light output 115 lm/W
Rated light current according to IEC 62722-2-1: 2500 lm
Light color: White
Colour temperature 3000..4000 K
Color Rendering Index CRI: 80-89
Power factor 0.9
Constant luminous flux regulation: No.
Width 275 mm
Height/depth 71 mm
Length: 275 mm
Outer diameter: 275 mm
Type of wiring: With through wiring
Connection type: Plug-in terminal
Photobiological safety according to EN 62471: RG0
Colour temperature adjustable: Levels
Luminous flux can be set: No
Adjustable radiation angle: No.
Operation via Bluetooth: Yes
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (Ø x H) 275 mm x 71.00 mm

Operating voltage: 230 V

Product type: LED ceiling light

Width: 275.00 mm

Bulb type: LED (monochrome)

Height: 71.00 mm

: Built-in LED

Length: 275.00 mm

Rating per bulb: 22 W

Depth: 71 mm

: 22 W

(Ø): 275 mm

Light features: Dimmable

Protection class: II

: IP54

Factory colour: White

Material: Plastic

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 4000 K

Total luminous flux: 2500 lm

: 2500 lm

Rated luminous flux: 2500 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3136465 Opple 715000008700 715000008700 LED ceiling light LED (monochrome) Built-in LED 22 W White

Description

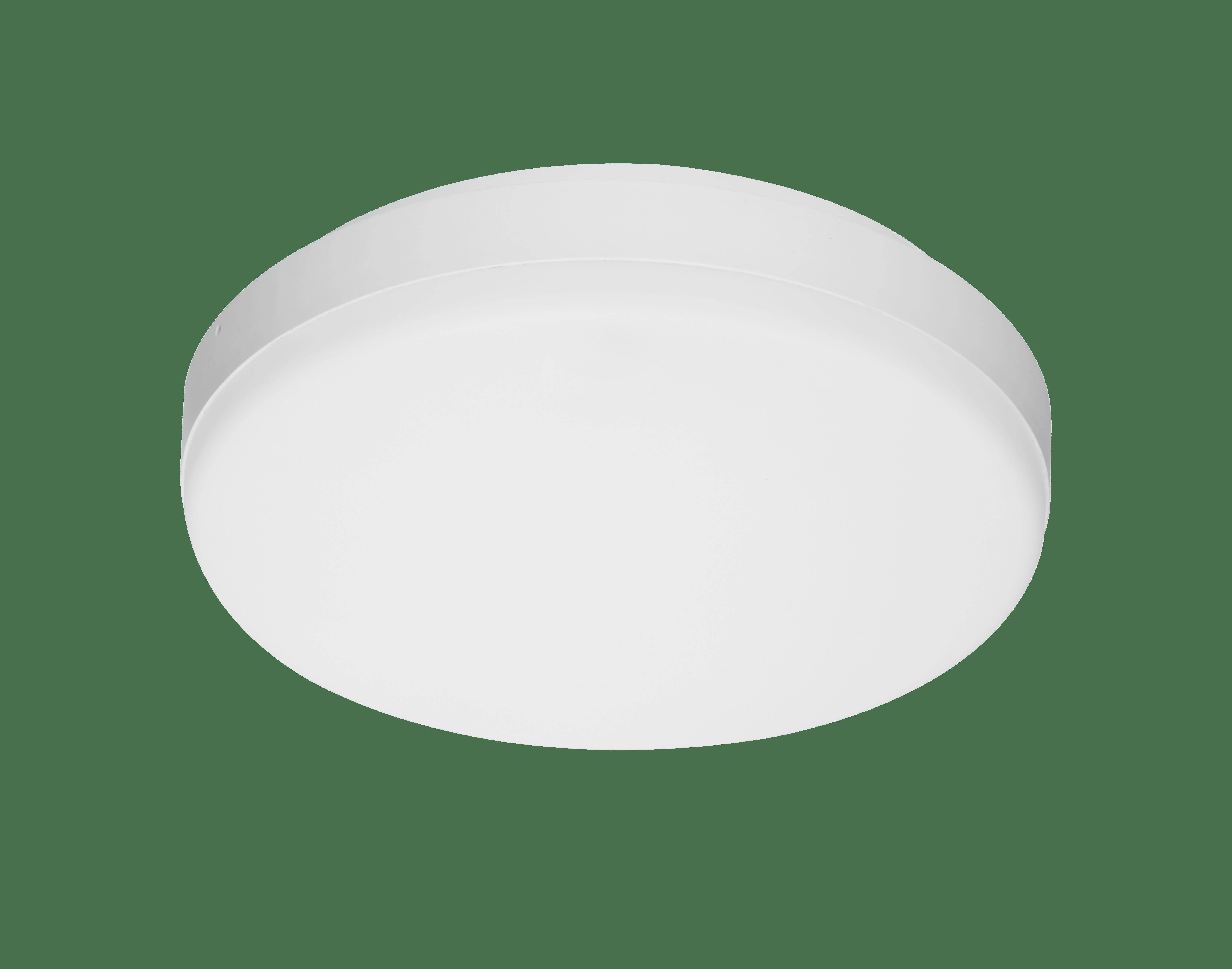

Elegant, compact and robust wall and ceiling lamp (IP54 + IK08). Simple wiring with possibility of through-wiring and lateral entry possibility. Integrated CCT switch for color temperature selection (3000 K - 4000 K).

This text is machine translated.
