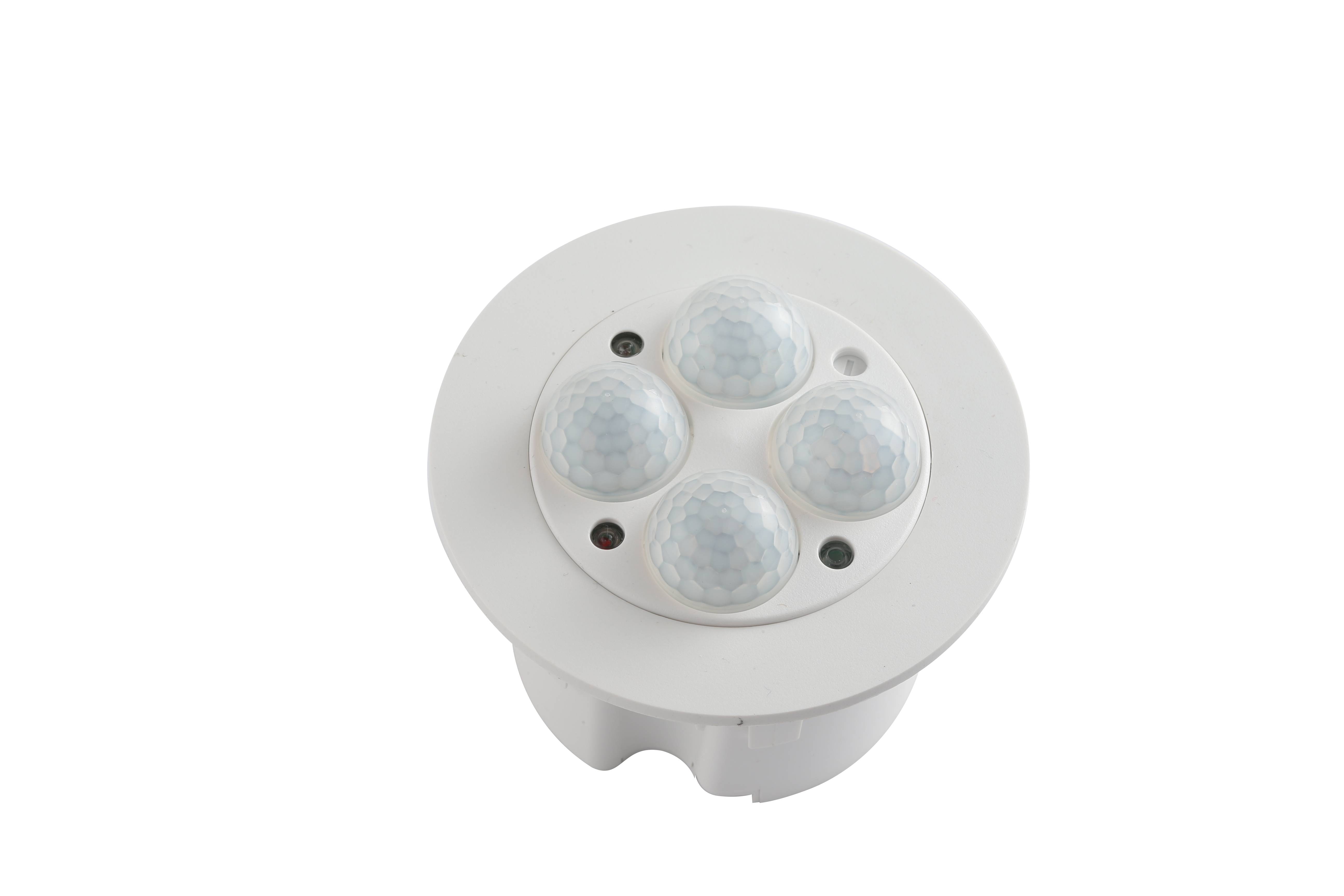

Opple 821006002000 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design: Presence detectors
- Sensor type: Passive infrared
- With DALI interface: No.
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Optimum mounting height 3 m.
- Max. Presence area: 30 m²
- Capturing field Diameter on floor: 10 m.
- Suitable for wireless transmission: Yes
- Remote control: Yes
- Response sensitivity adjustable: No.
- Response brightness adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Suitable for ceiling mounting: Yes
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Design of surface: Matt
- Colour: white
- RAL number (similar): 9003
- Transparent: No.
- Protection class (IP) IP20
- Impact strength: IK02
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Min Switch-on time 5 seconds
- Max. duty cycle 120 min
- Width 92 mm
- Height: 65.4 mm
- Depth: 65.4 mm
- Diameter 92 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: Yes
- Factory colour
White
- Depth
65.40 mm
- (Ø)
92 mm
- Height
65.40 mm
- Length
0 mm
- Width
92.00 mm
IP20
- Material (details)
Plastic
- Type
Occupancy Sensors
- Operating voltage
220 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135937 Opple 821006002000 1 pc(s)
Description
NEW: Wireless communication based on the future-proof, standardized Bluetooth SIG Mesh protocol. Compact Bluetooth® motion detector for use in Opple Smart lighting system. Wide detection range of Ø 10m. Recommended installation height 2-3.5m. Suitable for Opple Smart daylight regulation. Very easy to set up using the Opple Smart lighting APP or the Smart connect box with Smart web interface. Including temperature and humidity sensors. Full wireless communication via standardized Bluetooth® Low Energy (BLE) Mesh protocol.
