OPUSgreenNet 563.075-C Gateway Black EnOcean
EAN:
Part number:
Item no:
Highlights & Details

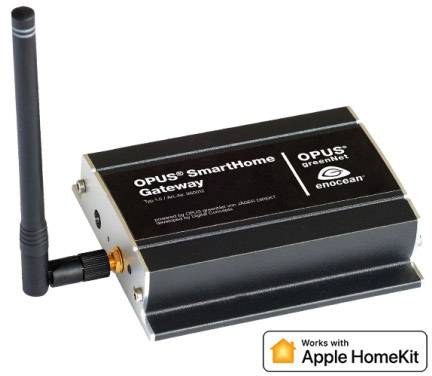

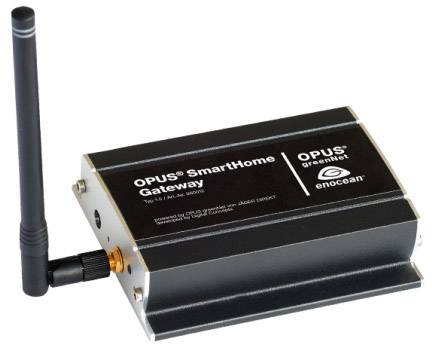

OPUS® SmartHome Gateway
Technical specifications
- Power consumption: 3 W
- Connections: 1 x LAN (RJ 45), 1 x USB, 1 x antenna connection
- Product type
Gateway
- Series
EnOcean
Apple HomeKit
Mediola
- Transfer Standard (Smart Home)
EnOcean
- Used at
Indoors
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Frequency
868 MHz
40 m
- Factory colour
Black
- Width
85 mm
- Height
26 mm
- Depth
103 mm
- Weight
195 g
- Dim
(W x H x D) 85 x 26 x 103 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
n.rel.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1973520 OPUSgreenNet 563.075-C Gateway Black EnOcean
User & Safety Instructions 1973520 OPUSgreenNet 563.075-C Gateway Black EnOcean
Description
The OPUS SmartHome Gateway translates the EnOcean radio into the HomeKit world, DCG configuration via local web interface, import/export of configuration data, compatible products can be found under opusgreen.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Home gateway
- 1 x antenna
- 1 x power supply (230 V AC, 5 V DC, 2 A)
- 1 x REG rail adapter
- 1 x screw for REG rail mounting
- 4 x rubber feet
- 4 x replacement screws.
