Technical specifications

Dim: (W x H) 30 mm x 21 mm

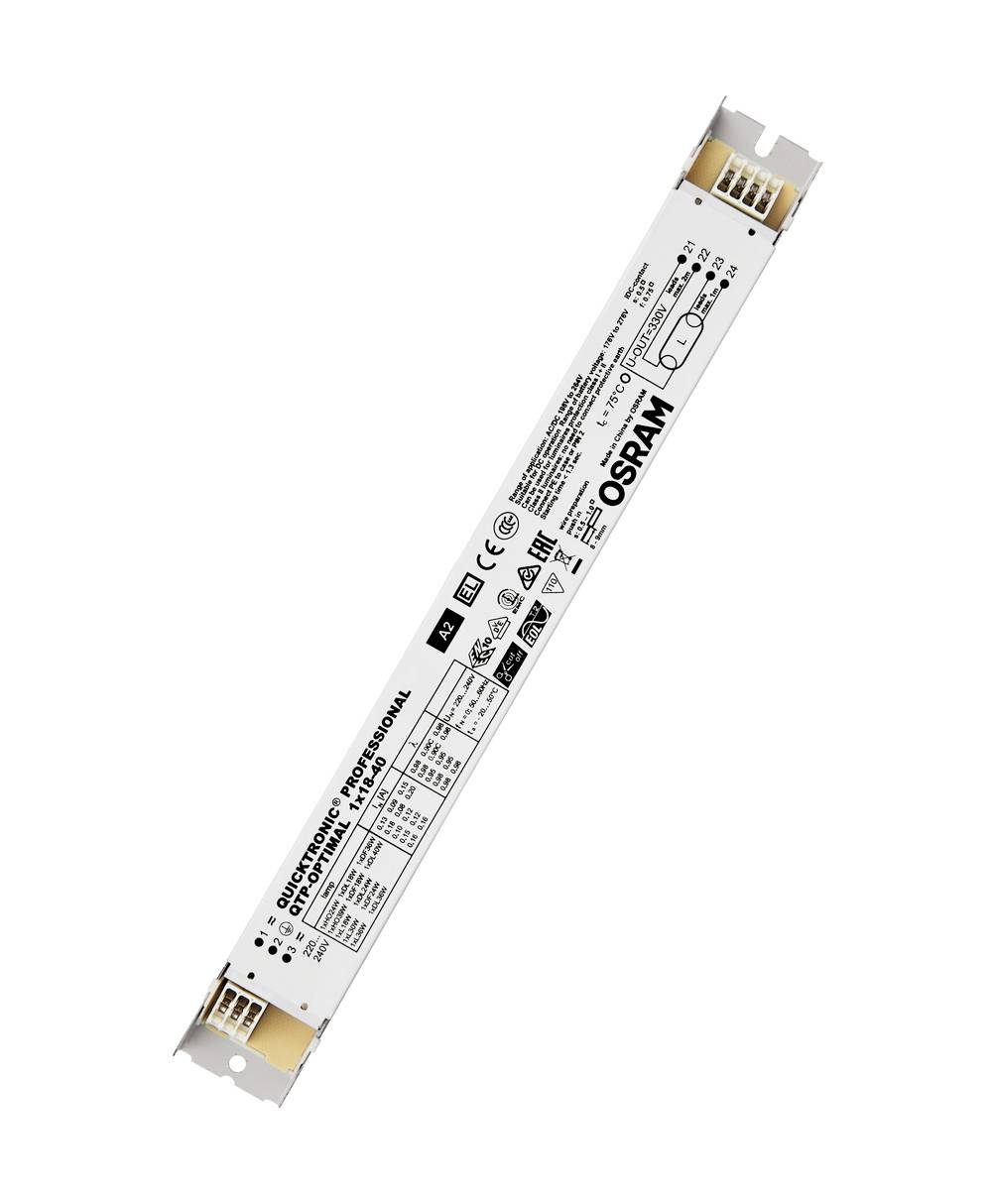

Product type: Lamp ballast

Weight: 180 g

Factory colour: White

Width: 30 mm

Height: 21 mm

UKCA: yes

Operating temperature (T-T): -20 - 50 °C

Quantity per pack: 20 Stück(e)

Package weight: 3.51 kg

Documents & Downloads

Datasheet

Datasheet 3795703 OSRAM 4008321873743 Lamp ballast

User & Safety Instructions

User & Safety Instructions 3795703 OSRAM 4008321873743 Lamp ballast

Description

EVG for LL and KLL, not dimmable. Product characteristics: Supply voltage: 220 240 V. Supply voltage: 198 264 V. Net frequency: 0 Hz | 50 Hz | 60 Hz. Lamp start with optimal spiral pre-heating Durability: Up to 100,000 h (at T c = 65 °C, max. 10 % failure rate) Energy efficiency index EEI: A2 BAT. Automatic safety shut-off in case of lamp defect and at the end of lamp life (EOL T.2). Safety: According to EN 61347-2-3. Lamp operation: According to EN 60929. Product benefits: Long lamp life. High switching strength. Automatic restart after lamp replacement. Perfect lamp warm start for applications with motion sensor. VDE/VDE EMC-certified system. Highest energy efficiency through cut-off technology. Application areas: Emergency lighting systems as per EN 50172 / DIN VDE 0108-100. Industry. Large offices, corridors or storage rooms. Public buildings Sports halls and factories. Light bands Suitable for emergency lighting (DC mode). Modernization of existing plants. Suitable for protection class I and II lamps.

This text is machine translated.
