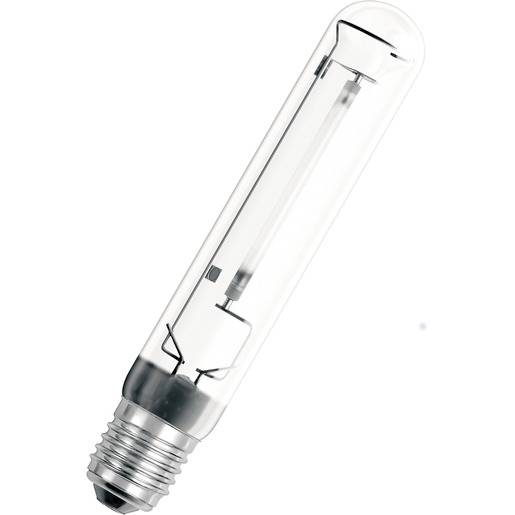

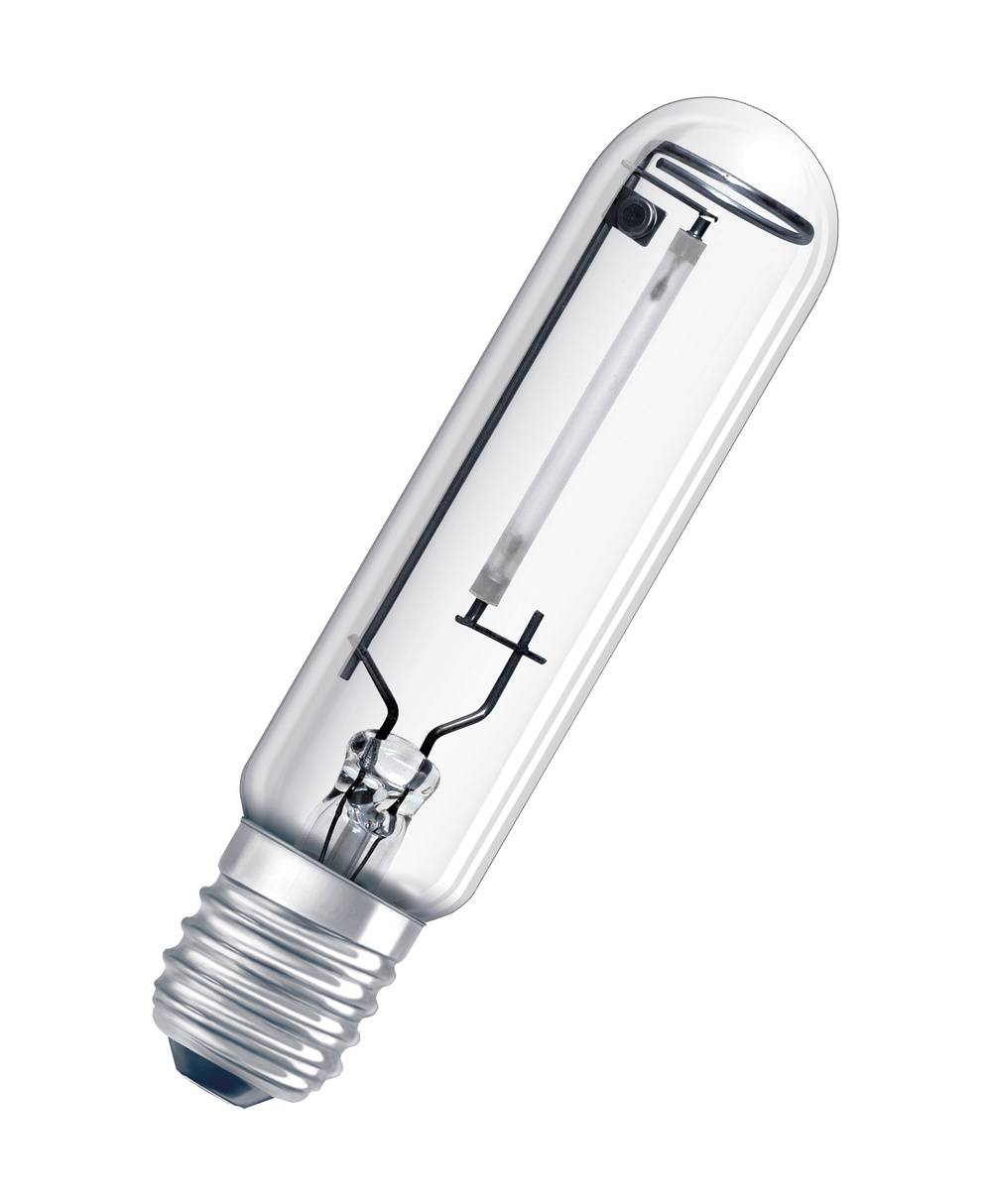

OSRAM Discharge bulb NAV-T 70W Super 4Y 156 mm E-27 71 W EEC: G (A - G) Warm white dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
High-pressure sodium vapor lamps for open and closed lamps
- Up to 50% energy saving when replacing mercury vapor lamps (HQL)
- Optimum energy efficiency when operated on EVG POWERTRONIC PTO 3DIM
Technical specifications
- Product type
Discharge bulb
E-27
71 W
- Factory colour
Multicolour
- Colour
Warm white
30000 h
- Operating voltage
90 V
6400 lm
2000 K
- Mercury content
10 mg
- Dim

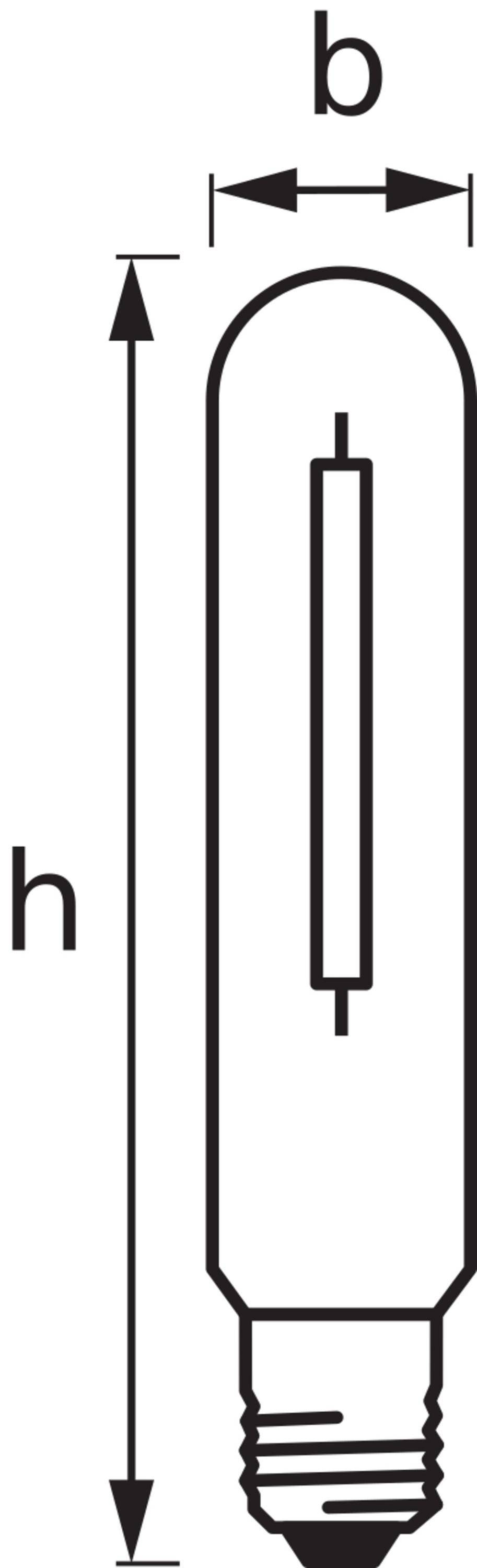

(Ø x L) 36 mm x 156 mm
G (A - G)
- Energy consumption
79 kWh/1000h
Yes
- Weight
0.060000 kg
- Content
1 pc(s)
- Light bulb features
dimmable
- Total luminous flux
6400 lm
- Length
156 mm
- (Ø)
36 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2307456 OSRAM Discharge bulb NAV-T 70W Super 4Y 156 mm E-27 71 W EEC: G (A - G) Warm white dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2307456 OSRAM Discharge bulb NAV-T 70W Super 4Y 156 mm E-27 71 W EEC: G (A - G) Warm white dimmable 1 pc(s)
Description
VIALOX NAV-T 70W SUPER 4Y is a form of gas discharge lamp with sodium vapor. No fluorescent material is required in the lamp. The gas discharge generates a visible light, which has an orange-yellow color range.
This text is machine translated.
This text is machine translated.
Hints
Dimmable at conventional ballasts and electronic ballasts
