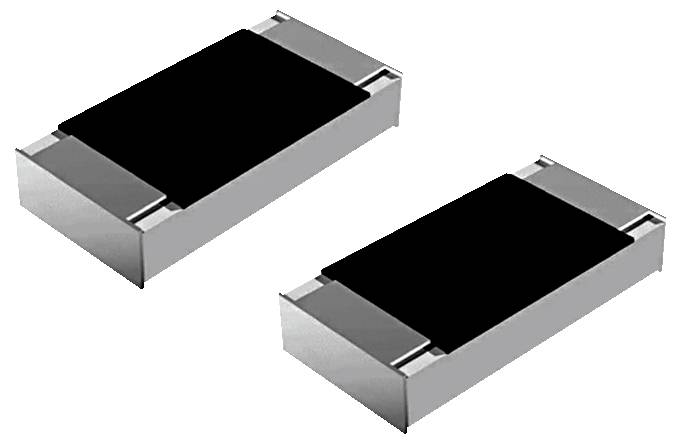

Panasonic ERJPA3F60R4V SMD resistor 60.4 Ω SMD 0603 0.25 W 1 % 1 pc(s) Tape
Packaging type
Tape
Product type
SMD resistor
Type
0603
Resistance
60.4 Ω
Power rating
0.25 W
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Panasonic SMD-thick layer 0603 0.25W 1% 60R4
Our service for you
Technical specifications
- Series ERJPA3
- Design 0603
- Delivery type: Belt
- Weight: 0.002 g
- Soldibility 270 °C / 10 s
- Resistance tolerance: ±1 %
- Rated output: 0.25 W
- Max. OPERATING VOLTAGE (DC) 150 V DC
- Max. OPERATING VOLTAGE (AC) 150 V AC
- Max voltage 200 V
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
0603
- Resistance
60.4 Ω
- Power rating
0.25 W
- Tolerance ±
1 %
- Length
1.6 mm
- Width
0.8 mm
- Height
0.45 mm
- Content
1 pc(s)
- Dim
(L x W x H) 1.6 x 0.8 x 0.45 mm
- RoHS-compliant
Yes
- Type
ERJPA3F60R4V
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- Certification marks
IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
Documents & Downloads
Datasheet
Datasheet 3464852 Panasonic ERJPA3F60R4V SMD resistor 60.4 Ω SMD 0603 0.25 W 1 % 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3464852 Panasonic ERJPA3F60R4V SMD resistor 60.4 Ω SMD 0603 0.25 W 1 % 1 pc(s) Tape
Description
Panasonic series ERJPA3F 0603 1%
This text is machine translated.
This text is machine translated.
Features
- • SMD anti-surge thick film resistors
- • ESD surge protector that is superior to standard metal film resistors
- • High reliability
- • Thick film resistor element with metal glaze and three electrode layers
- • AEC-Q200 qualified
- • REFERENCE STANDARDS IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- • Original packaging: 5,000 pieces on belt with 4 mm grid spacing
