Panasonic ERZV10D560 Metal oxide varistor 56 V 1 pc(s) Bulk
Packaging type
Bulk
Product type
Metal oxide varistor
V<sub>v</sub>
56 V
CS
7.5 mm
(Ø)
11.5 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Panasonic M varistor ZNR Ø11,5mm 35V 56V 1,000A
Our service for you
Technical specifications
- Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series ERZV
- Delivery form: Loose
- Diameter, Resistance element 11.5 mm
- Diameter, connection wire 0.8 mm
- Rated output: 0.05 W
- Nominal voltage: 35 V
- Varistor voltage (@1mA) 56 V
- Surge current 1,000 A.
- Energy absorption 8.1 J
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Vv
56 V
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
11.5 mm
- Height
34.5 mm
- Width
5.1 mm
- Manufacturer part #
ERZV10D560
- Dim
(Ø x H) 11.5 mm x 34.5 mm
- RoHS-compliant
Yes
- Peak current I(pp)
1.000 A
- Type
ERZV10D560
- Mounting type
PCB mount
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464898 Panasonic ERZV10D560 Metal oxide varistor 56 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3464898 Panasonic ERZV10D560 Metal oxide varistor 56 V 1 pc(s) Bulk
Description

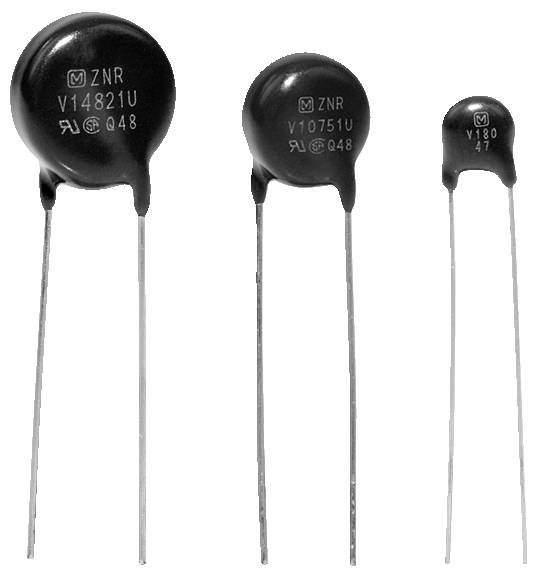

Panasonic varistors, ERZV series
This text is machine translated.
This text is machine translated.
Features
- • "ZNR" transient / surge suppressor (type D)
- • high surge current capacity in relation to compact design
- • High energy capacity and safe absorption of transient overvoltage
