Panasonic ERZV14D470 Metal oxide varistor 47 V 1 pc(s)
Product type
Metal oxide varistor
V<sub>v</sub>
47 V
CS
7.5 mm
(Ø)
15.5 mm
Height
38.5 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Panasonic M-Varistor ZNR Ø15,5mm 30V 47V 2.000A
Our service for you
Technical specifications
- Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series ERZV
- Delivery form: Loose
- Diameter, Resistance element 15.5 mm
- Diameter, connection wire 0.8 mm
- Rated output: 0.1 W
- Rated voltage: 30 V
- Varistor voltage (@1mA) 47 V
- Surge current 2,000 A.
- Energy absorption 14 J
- Product type
Metal oxide varistor
- Vv
47 V
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
15.5 mm
- Height
38.5 mm
- Width
5.0 mm
- Manufacturer part #
ERZV14D470
- Dim
(Ø x H) 15.5 mm x 38.5 mm
- RoHS-compliant
Yes
- Peak current I(pp)
2.000 A
- Type
ERZV14D470
- Mounting type
PCB mount
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464908 Panasonic ERZV14D470 Metal oxide varistor 47 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464908 Panasonic ERZV14D470 Metal oxide varistor 47 V 1 pc(s)
Description

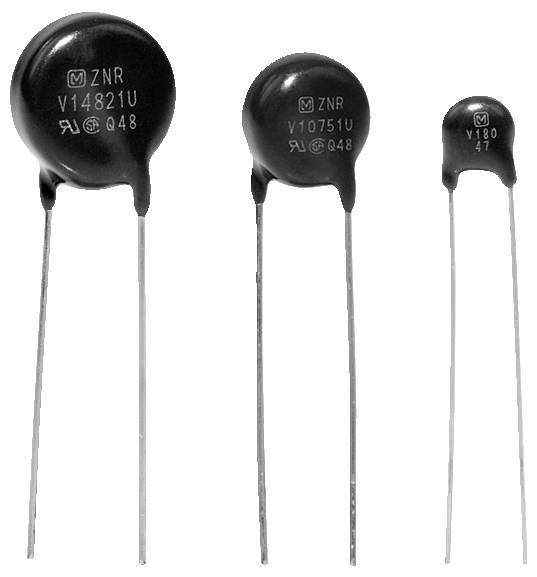

Panasonic varistors, ERZV series
This text is machine translated.
This text is machine translated.
Features
- • "ZNR" transient / surge suppressor (type D)
- • High surge current capacity in relation to compact design
- • high energy capacity and safe absorption of transient overvoltage
