Panduit VS2-AVT-1PB-16 VeriSafe2.0AVT 1-phase 16ft cable, 10ft sensor lead Voltage freedom tester 1000 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Voltage freedom tester
Nominal voltage
1000 V
Operating voltage
24 V DC
Content
1 pc(s)
Cable length
4.88 m
Technical specifications
- Cable length (foot): 16 feet
- Cable length (m) 4.88 m
- Max. VOLTAGE (V AC) 1000 V/AC
- Max. VOLTAGE (V DC) 1000 V/DC
- Max. Voltage (V) 1000 V
- Complies with UL 1436, UL 508, CSA-C22.2 No. 14, CAN/CSA-C22 NO. 160, CAN/CSA-C22.2 NO. 107.1, IEC/UL/CSA C22.2 NO. 61010-1, IEC/UL.CSA C22.2 No. 61010-2-030, IEC 61508-1, -2 and -3 (SIL Rating)
- For use with: 1-phase AC systems, DC systems
- Power supply: Lithium battery, 12-24 VDC, PoE
- Network-compatible: Yes
- Maximum operating temperature (°C): 60°C.
- Min Operating temperature (°C): --25°C.
- Max. Storage temperature (°C): 85°C.
- Min Storage temperature (°C): -45°C.
- Battery voltage (V): 3.6 V.
- Chemical composition of the battery: Lithium-ion
- Nominal voltage
1000 V
- Product type
Voltage freedom tester
- Operating voltage
24 V DC
- Content
1 pc(s)
- Cable length
4.88 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3558102 Panduit VS2-AVT-1PB-16 VeriSafe2.0AVT 1-phase 16ft cable, 10ft sensor lead Voltage freedom tester 1000 V 1 pc(s)
Description
With advanced voltage detection and testing, our voltage-free testers ensure that your devices are voltage free before maintenance and thus protect your employees.

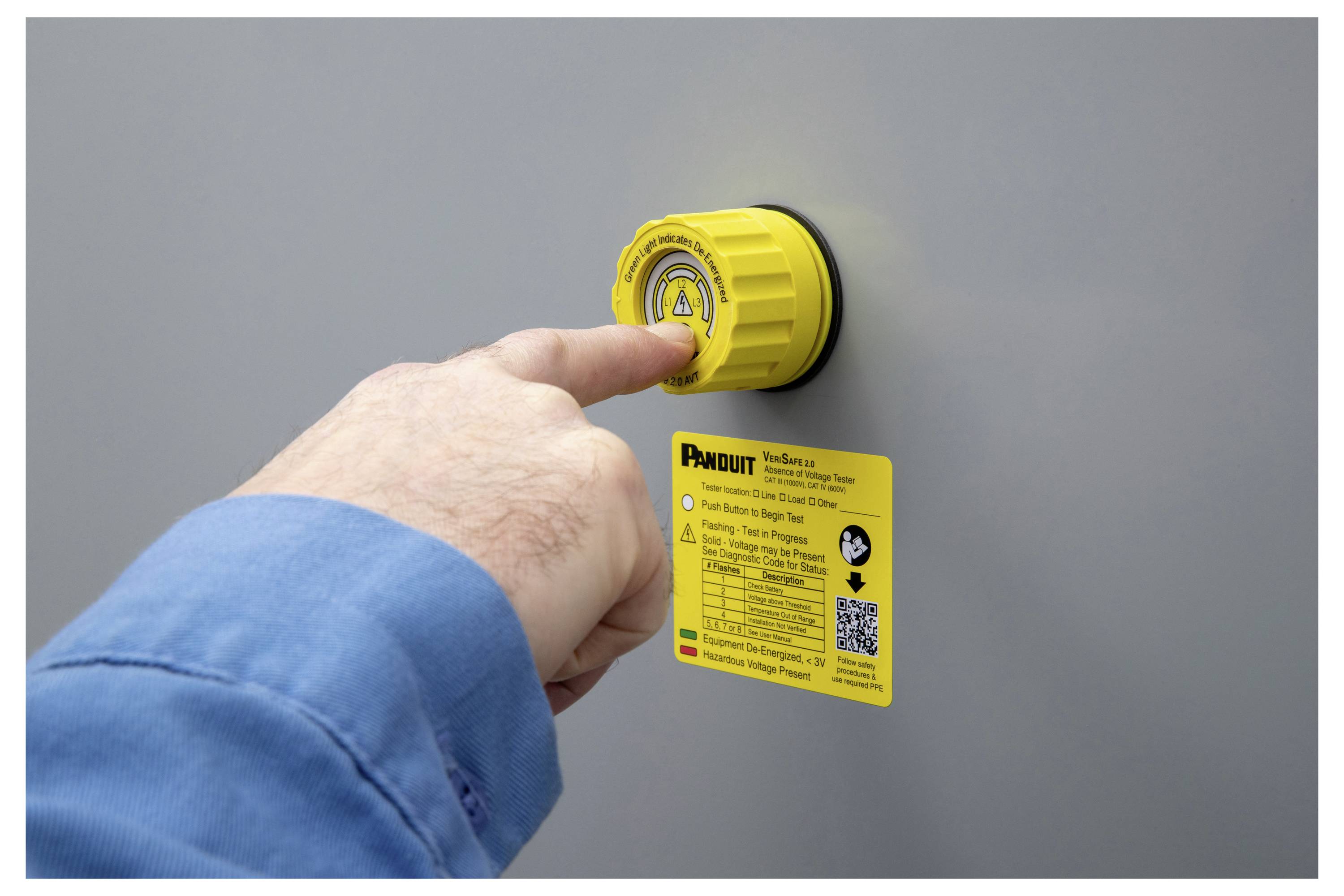

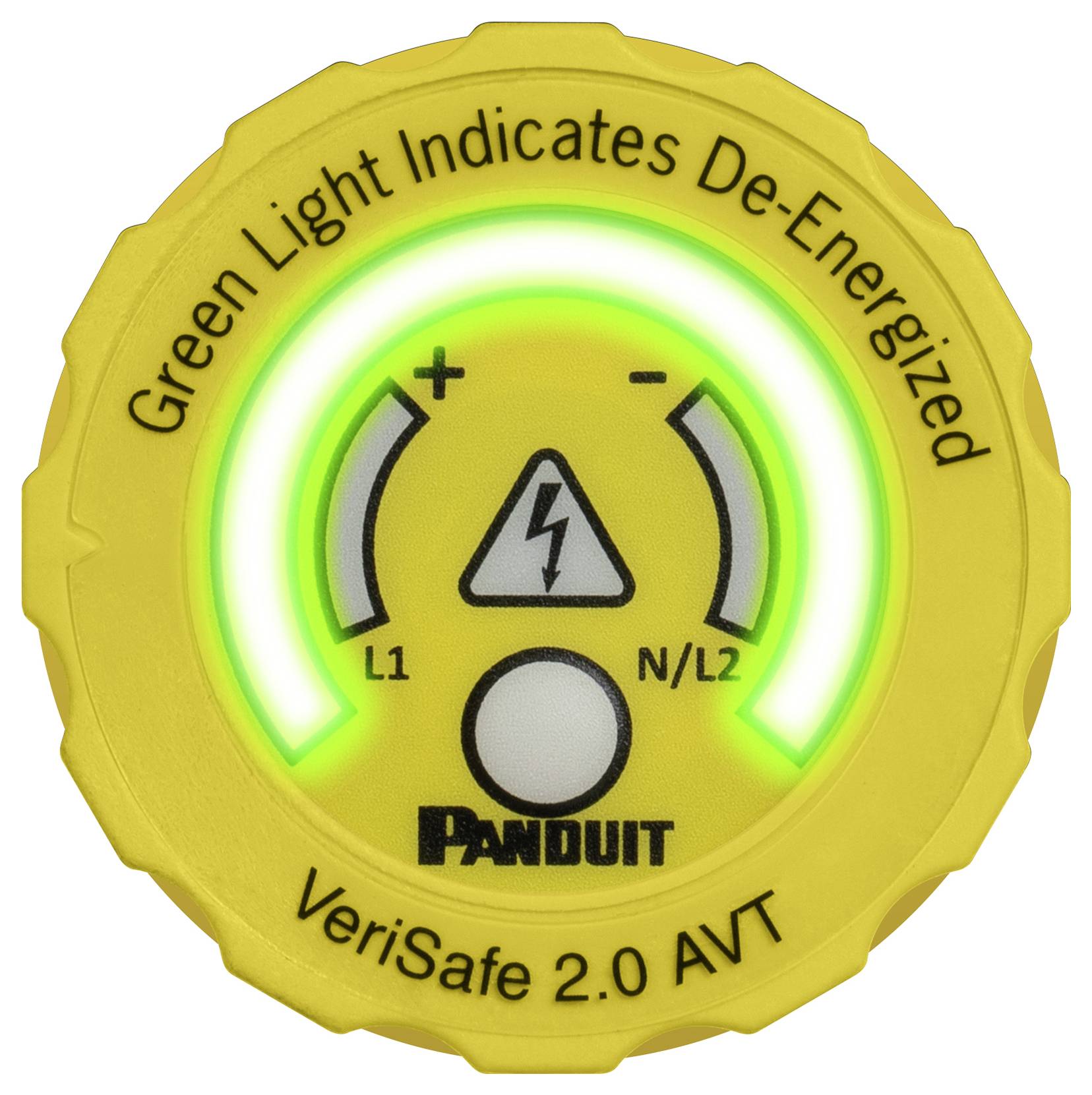

The VS2-AVT-1PB-16 VeriSafe 2.0 voltage tester is a fixed voltage tester for use in single-phase AC or DC systems up to 1,000 V. Activation of VeriSafe before the cabinet is opened, which helps to prevent potential exposure to electrical hazards.
This text is machine translated.
The VS2-AVT-1PB-16 VeriSafe 2.0 voltage tester is a fixed voltage tester for use in single-phase AC or DC systems up to 1,000 V. Activation of VeriSafe before the cabinet is opened, which helps to prevent potential exposure to electrical hazards.
This text is machine translated.

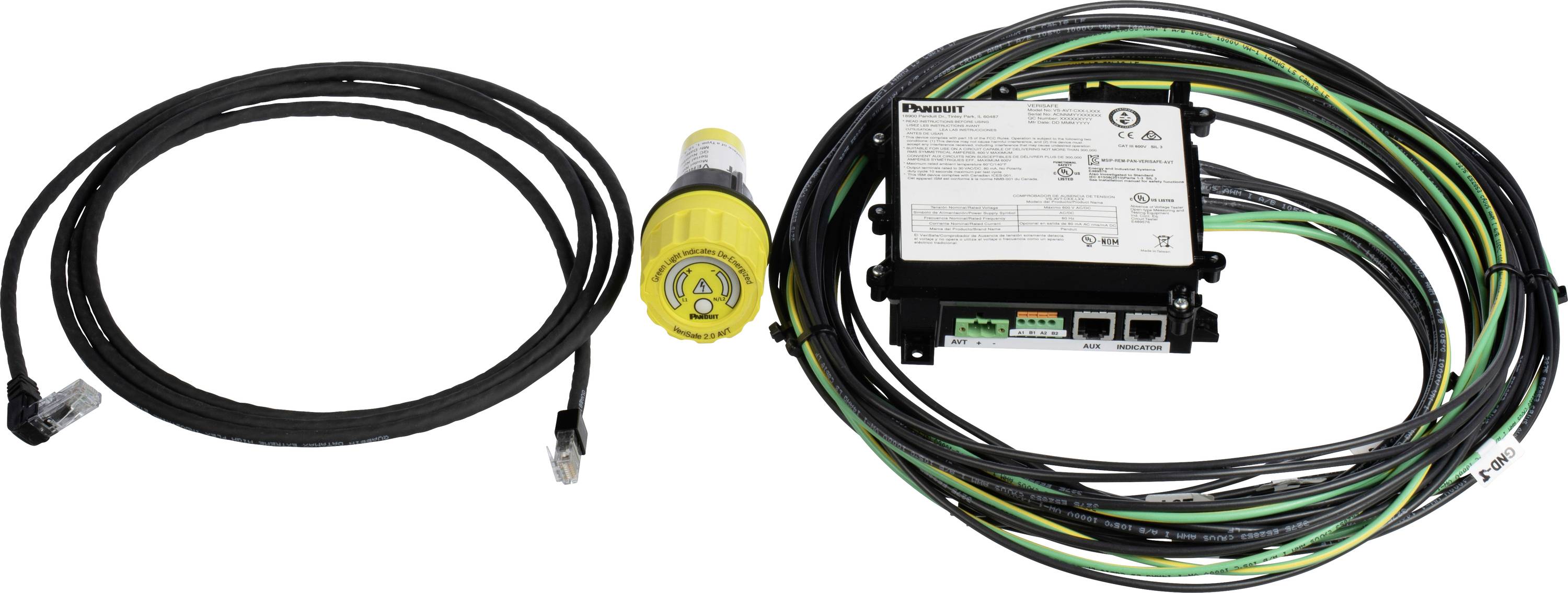

Scope of delivery
- Separating module
- System cable 4.8 m
- 3 m sensor cable
- Labels
- Display module and lithium battery
- Voltage tester
- VS2-AVT-1PB-16
