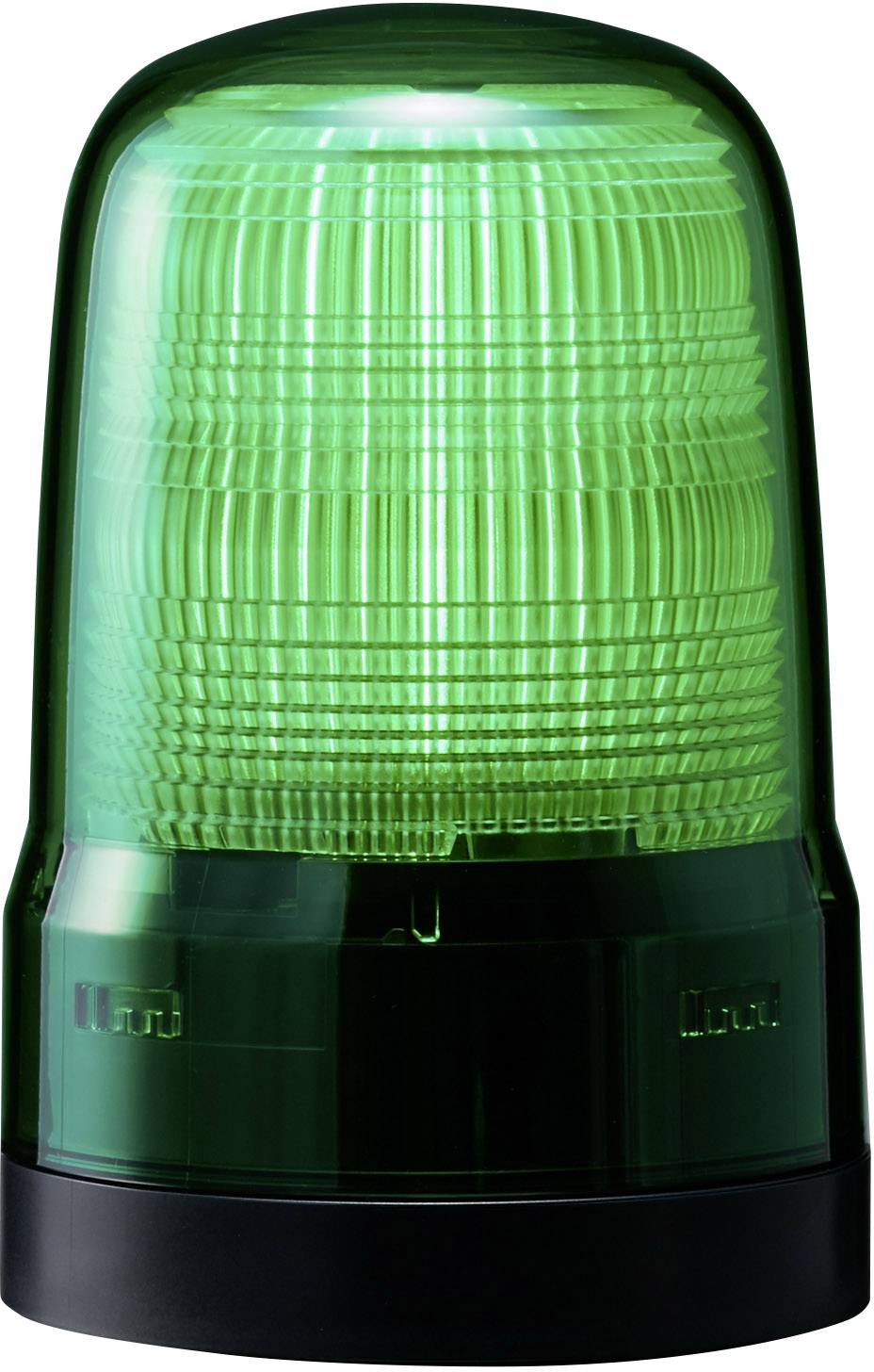

Patlite Light SL08-M2KTN-G SL08-M2KTN-G Green Green Flasher 100 V AC, 240 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: SL
- Flashing rate: Flashing (180 flashes per minute)
- Triple flash (120 flashes per minute)
- Conductor cross-section Starr: 0.13 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Installation direction: Upright
- Mounting method: 2-point hole
- Wiring method: Spring-loaded terminal
- Buzzer: Without buzzer
- Mounting distance 35.5 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, KC, EAC
- Product type
Light
- Operating voltage
100 V AC
240 V AC
- Max. current consumption
40 mA
- Colour
Green
- (Ø)
80 mm
- Height
120 mm
- Flash rate
180 flashes/min
IP66
- Dim
(Ø x H) 80 mm x 120 mm
- Factory colour
Green
- Case colour
Green
- Lighted picture
Flashing light
- Material
Polycarbonate (PC)
- Signal type
Flasher
- Type
SL08-M2KTN-G
- Light intensity
69 cd
- Weight
0.000
- Calotte colour
Green
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248108 Patlite Light SL08-M2KTN-G SL08-M2KTN-G Green Green Flasher 100 V AC, 240 V AC
User & Safety Instructions
User & Safety Instructions 2248108 Patlite Light SL08-M2KTN-G SL08-M2KTN-G Green Green Flasher 100 V AC, 240 V AC
Description
Comprehensive visibility
The newly developed Fresnel lens ensures uniform overall luminosity, even from above.
Compared to competitor products, the SL model has a larger, light-emitting surface with a luminous intensity of more than 5 times as high.
This text is machine translated.
The newly developed Fresnel lens ensures uniform overall luminosity, even from above.
Compared to competitor products, the SL model has a larger, light-emitting surface with a luminous intensity of more than 5 times as high.
