1/21
Paulmann 50124+50134+50135 LED (monochrome) EEC F (A - G) E-27 9 W Warm white (Ø x H) 60 mm x 118 mm App-controlled 1 Se
EAN:
Part number:
Item no:
Highlights & Details

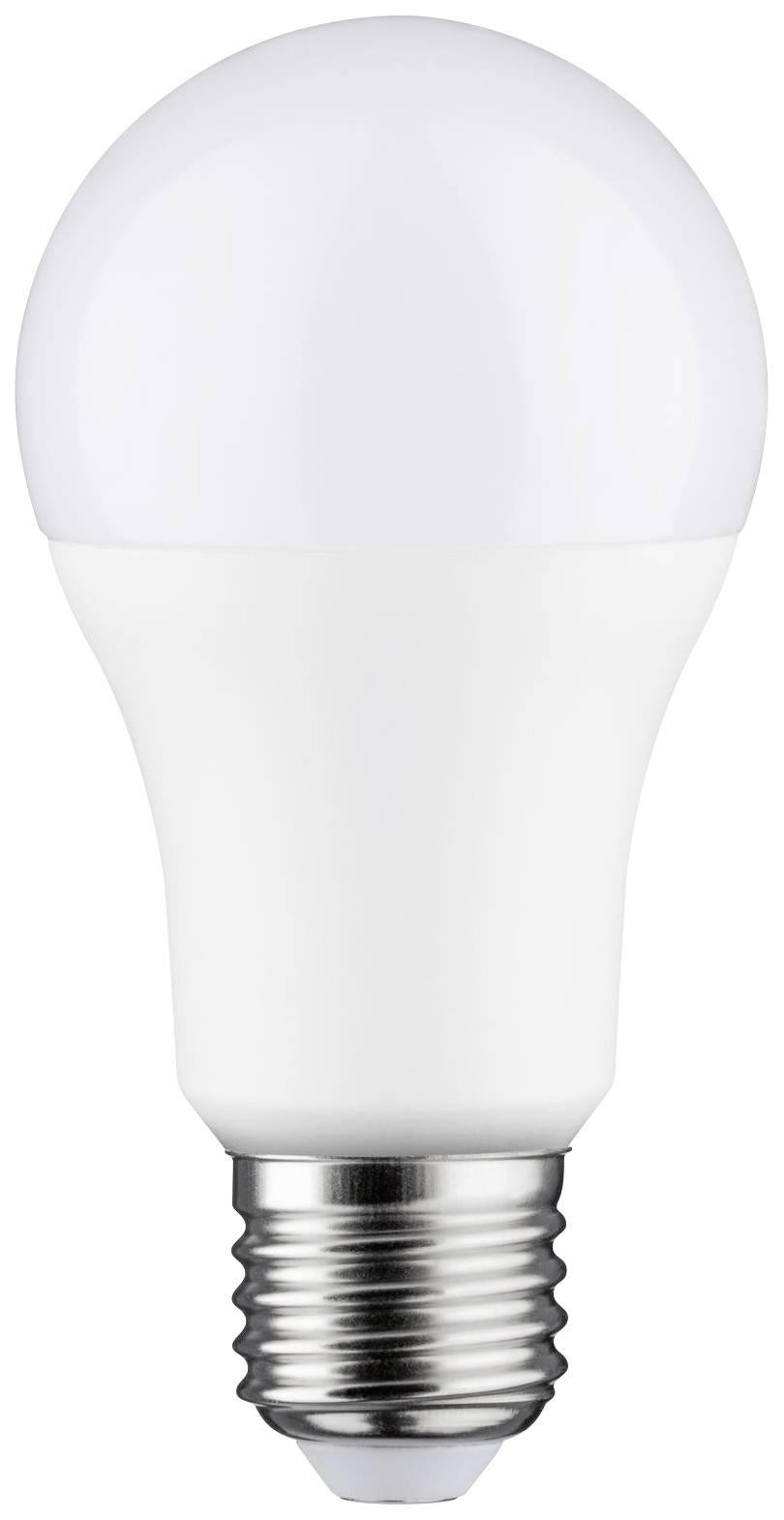

Paulmann 50124+50134+50135 LED (monochrome) E-27 9 W Warm white
- Power= 9 W
- Total luminous flux= 806 lm
- Colour temperature= 2700 K
- Warm white
Technical specifications
- Dim. Wall switch (W x H x D) 81 x 81 x 15 mmDim. Gateway (W x H x L) 72 x 26 x 84 mm
- Product type
LED (monochrome)
E-27
9 W
806 lm
- Factory colour
Matt
- Colour
Warm white
- Light bulb features
App-controlled
2700 K
- Colour temperature range
2700 - 6500 K
Yes
15000 h
- Power factor
0.55
- Operating voltage
230 V
- (Ø)
60 mm
- Content
1 Set
- Height
118 mm
F (A - G)
- Energy consumption
10 kWh/1000h
- Dim

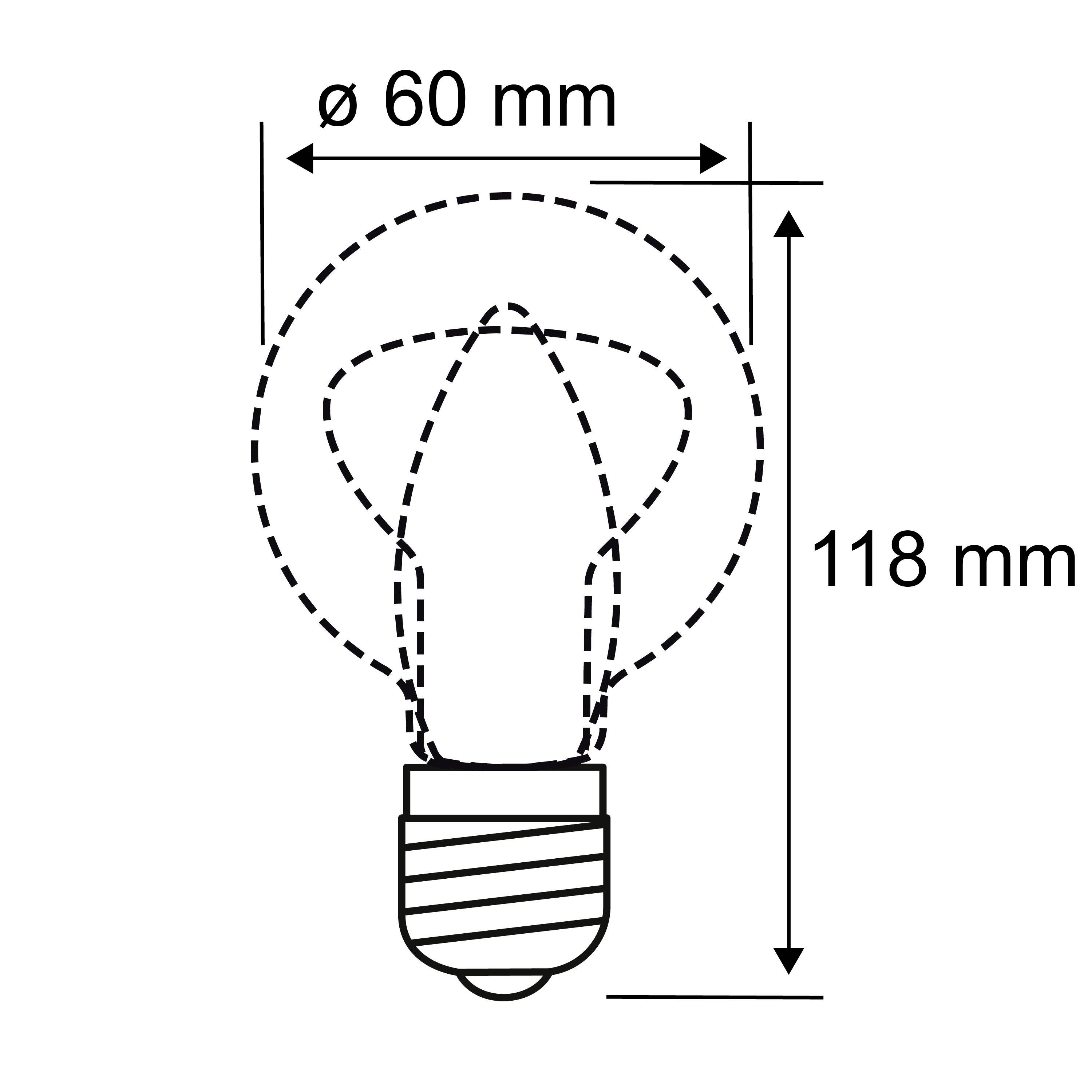

(Ø x H) 60 mm x 118 mm
- Durability rating
15000 h
- Power rating
9.3 W
- Rated luminous flux
806 lm
Zigbee
Alexa
- Colour rendering
827
- Colour rendering index
80 Ra
- Power range
7.5 W - 9.9 W
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Total luminous flux
806 lm
Documents & Downloads
Datasheet
Datasheet 2798735 Paulmann 50124+50134+50135 LED (monochrome) EEC F (A - G) E-27 9 W Warm white (Ø x H) 60 mm x 118 mm App-controlled 1 Se
User & Safety Instructions
User & Safety Instructions 2798735 Paulmann 50124+50134+50135 LED (monochrome) EEC F (A - G) E-27 9 W Warm white (Ø x H) 60 mm x 118 mm App-controlled 1 Se
Information
Information 2798735 Paulmann 50124+50134+50135 LED (monochrome) EEC F (A - G) E-27 9 W Warm white (Ø x H) 60 mm x 118 mm App-controlled 1 Se
Description

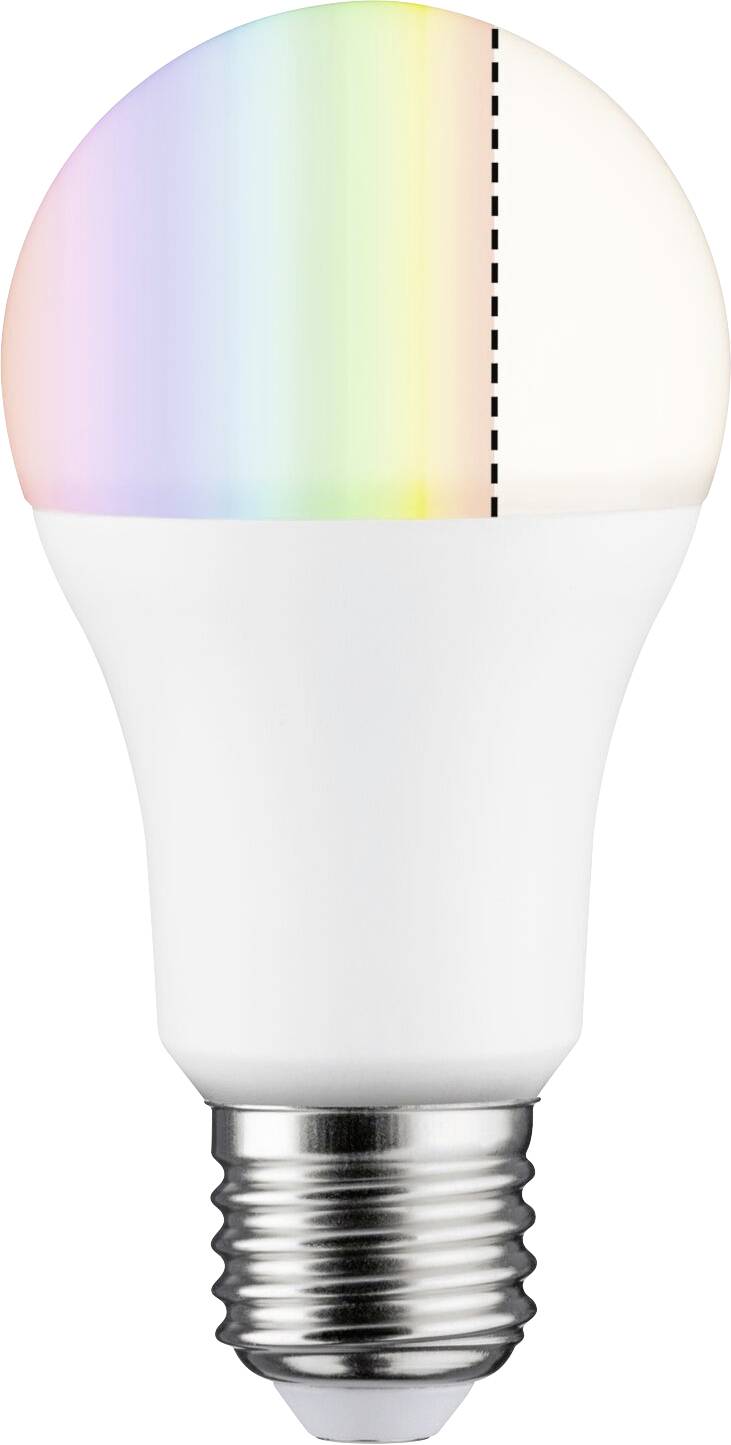

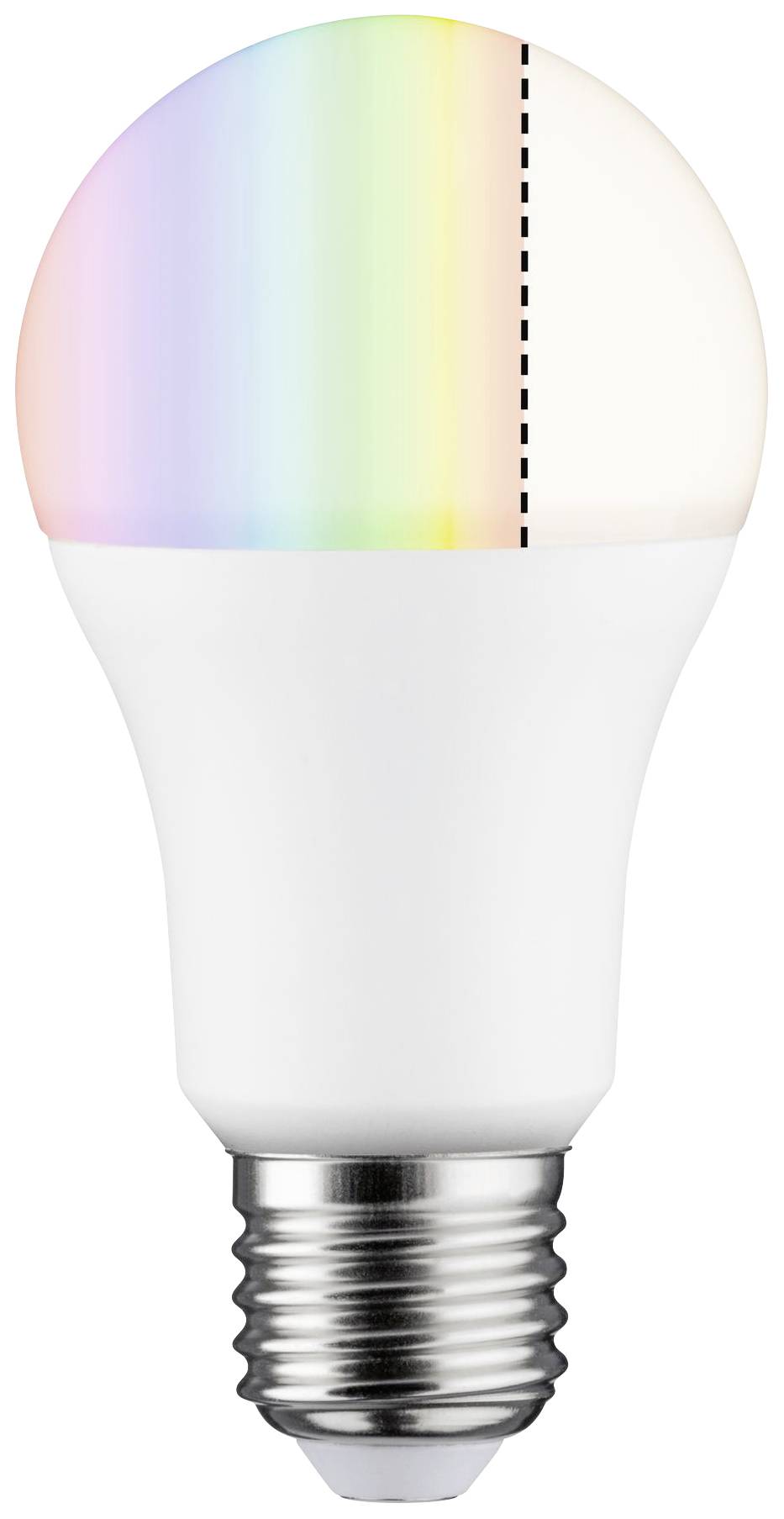

Set consists of: 4 x LED ZB AGL 806lm 9W RGBW 2700K matte dim, 1 x SH ZB wall button Dual rocker On/Off/Dim and 1 x Smart home smik Gateway Zigbee.The multipurpose Zigbee lamp with an output of 9.3 W emits your light in all directions. Even large lamp shades are illuminated evenly. Depending upon the mood, one can choose between real warm-white, colored light and different effects. The lamp is Zigbee 3.0 compatible. Zigbee is a radio transmission protocol that interconnects devices from different manufacturers.The Smart home Zigbee wall switch allows intuitive, direct switching to smart Zigbee products. No smartphone or gateway. The wall switch can be used to switch smart lights on and off and dim in a classic way.The Paulmann Zigbee Smart switch can be used together with an amazon echo that has a Zigbee interface.This is why the wall switches were initially taught in to a amazon echo. Now connect the wall switch to the devices to be controlled via Zigbee Touchlink.The lights connected to the wall switch and the amazon echo can then be controlled in parallel via the Paulmann Zigbee Smart switch, Amazon Alexa APP, and Amazon Alexa voice control.The wall switch can be switched on, off and dimmed.The Paulmann smik Gateway and Paulmann Zigbee solutions help you switch your house and garden on Smart. The new Paulmann gateway is handy compact and with its elegant and simple color fits seamlessly in all living rooms. The light can be controlled completely according to your own wishes and needs via APP, language or switch, from home or while traveling. Whether panel-mounted lights, rail systems or lighting, scenes for every mood and routines can be created for automatic processes. The varieties of white and millions of colors in different brightness make for a unique smart lighting experience.
This text is machine translated.
This text is machine translated.
Features
- LEDCan be used with Smart home gateways that have a Zigbee interfaceCan be controlled with Smart home Zigbee remote controlFurthermore, it can be switched on and off by the light switchRGBW multi-color changeColour temperature 2700K - Warm white up to 6500K - Daylight whiteWall switch:Direct control of Zigbee products via TouchlinkSwitch and dim two light groups, each with up to 15 devicesCan be placed freely by screwing or stickingCan be used directly without Zigbee gateway with standard settingsSeparate control of a light group by one button pair eachCan be used parallel to Alexa APP or voice control after training with Echo Smart speaker with Zigbee interfaceStatus-LED gives feedback on pressing buttons and system status|Switching module can be easily integrated into the following series of switches: Berker: S.1, B.1, B.3, B.7 Glass / GIRA: Standard 55, E2, Event, Esprit / JUNG: A500, A plus / Merten: M-Smart, M-Arc, M-Plan|Through battery operation, no electrical connection to the house installation is necessaryGateway:Modern control center of your smart Paulmann Zigbee light worldEasy and flexible use with APP, language or accessoriesLight comfort with automatic routines and through secure control while travelingControl your Zigbee 3.0 lighting products from Paulmann and compatible indoor and outdoor vendors with mesh networkingFree installation of the Paulmann smik APP on your Android or iOS smartphoneInstant access to your smart light without having to sign in for an account or an existing Internet connection ? Necessary only for functions like voice control or for software updatesQuick operation via voice command, Amazon AlexaAutomated light control ? Timer or time-based scene-activations can also be set up intuitively with slow fade-in or fade-outFull light control even from traveling with Paulmann account via a mobile phone Internet connectionHigh data protection and security, in particular through hosting of the Paulmann cloud services in Germany, up-to-date security architecture and no evaluation of personal dataSupports up to 50 Zigbee 3.0 luminaires, lighting, and Smart plugs, as well as 5 Zigbee 3.0 accessories as well as an Paulmann wall switchIndividual configuration of appropriately designated Paulmann Zigbee accessories is possible using the Paulmann smik APPTransparent network and internet status of smik gateway through two LED displaysSimple and interference-free connection of the smik-Gateway with your router via Ethernet-LAN-cableSeamless insertion into the living environment thanks to compact size and timeless coloring of the housing.
