Paulmann 71217 LED strip extension + plug 230 V 1 pc(s)
Product type
LED strip extension
Connectors (LED strips)
+ plug
LED strip features
Dimmable
Use
Inside
Operating voltage
230 V
EAN:
Part number:
Item no:
Highlights & Details

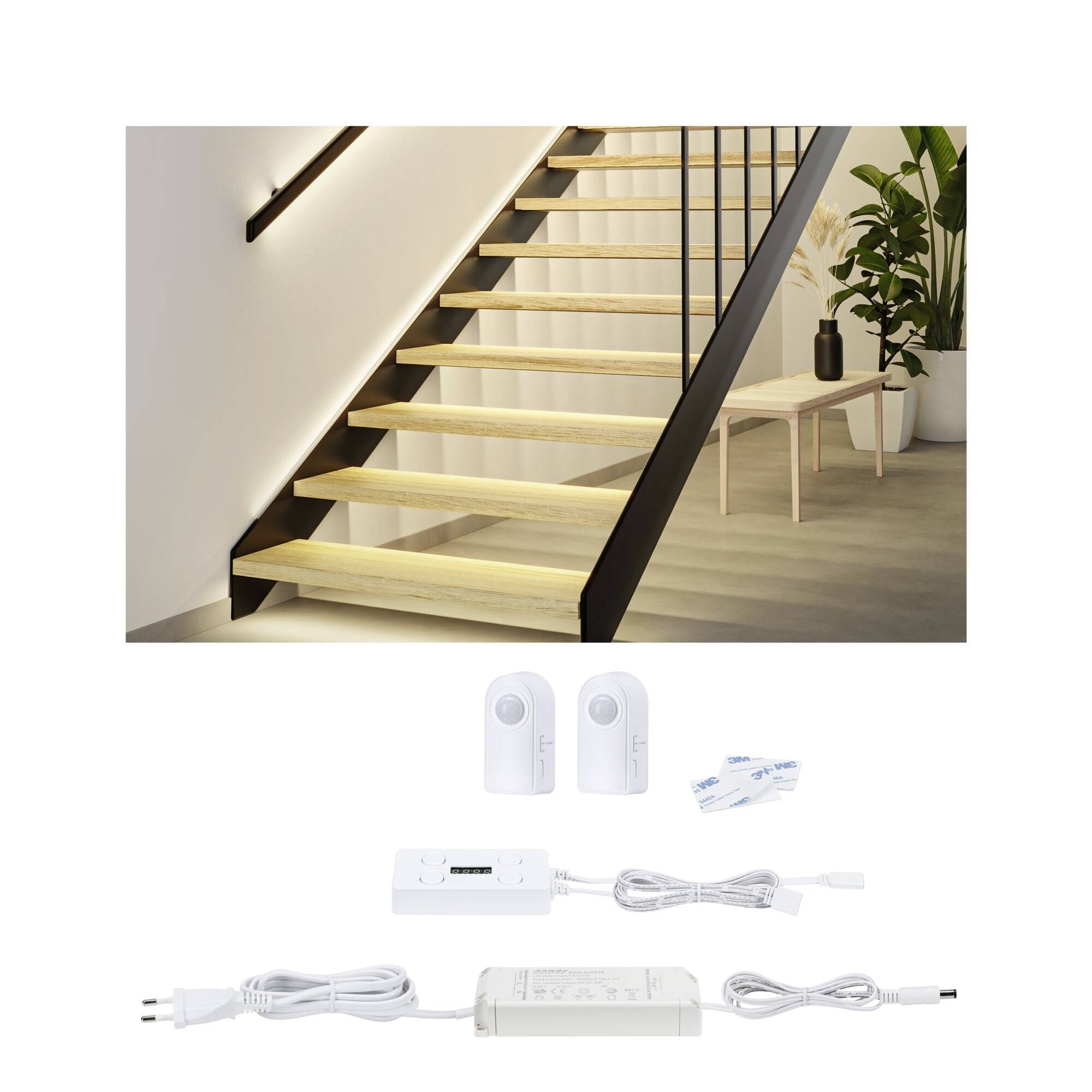

MaxLED Stair LED strip installation set max. 25W

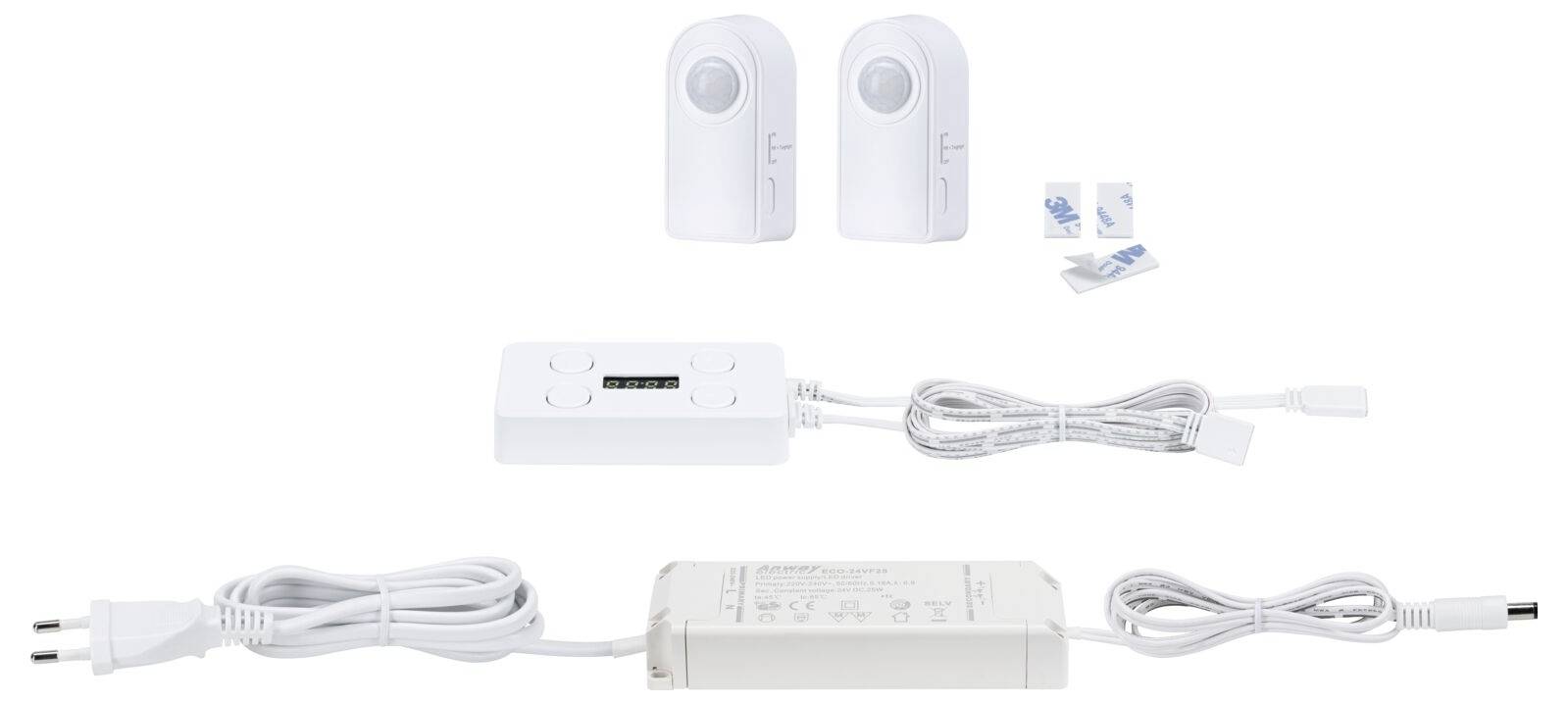

- Installation set including transformer, controller & two wireless motion sensors
- No additional cabling of the motion sensors thanks to wireless function
- High safety through automatic switching on and off via motion detector
- Holistic system: Expandable from 1 to 18 levels
- Compatible with MaxLED connectors
- Impressive light effect using the "Lightwave" function
- Installation set as basis for MaxLED Stays extension sets
Technical specifications
- Product type
LED strip extension
- Connectors (LED strips)
+ plug
- LED strip features
Dimmable
- Factory colour
White
- Use
Inside
- Operating voltage
230 V
- Connection
Jack connector
- Dim
(W x H x D) 126 x 21.5 x 36 mm
- Power consumption
25 W
- Width
126 mm
- Height
21.5 mm
IP20
n.rel.
- No. of bulbs
0
Yes
- RoHS-compliant
Yes
- Protection class
II
- Size
AA
- Durability rating
20000 h
- Depth
36 mm
0 W
- No. of lights
0
- No. of lights (max.)
0 x
20000
20000 h
- Nominal voltage
230 V
- External length
36 mm
- External width
126 mm
- Input voltage
230 V
- Output voltage
24 V
- Power consumption
25 W
- No. of lights
0
- Batteries
4
- Cable length
150
- Light-on time
20000
- Voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3743198 Paulmann 71217 LED strip extension + plug 230 V 1 pc(s)
Description

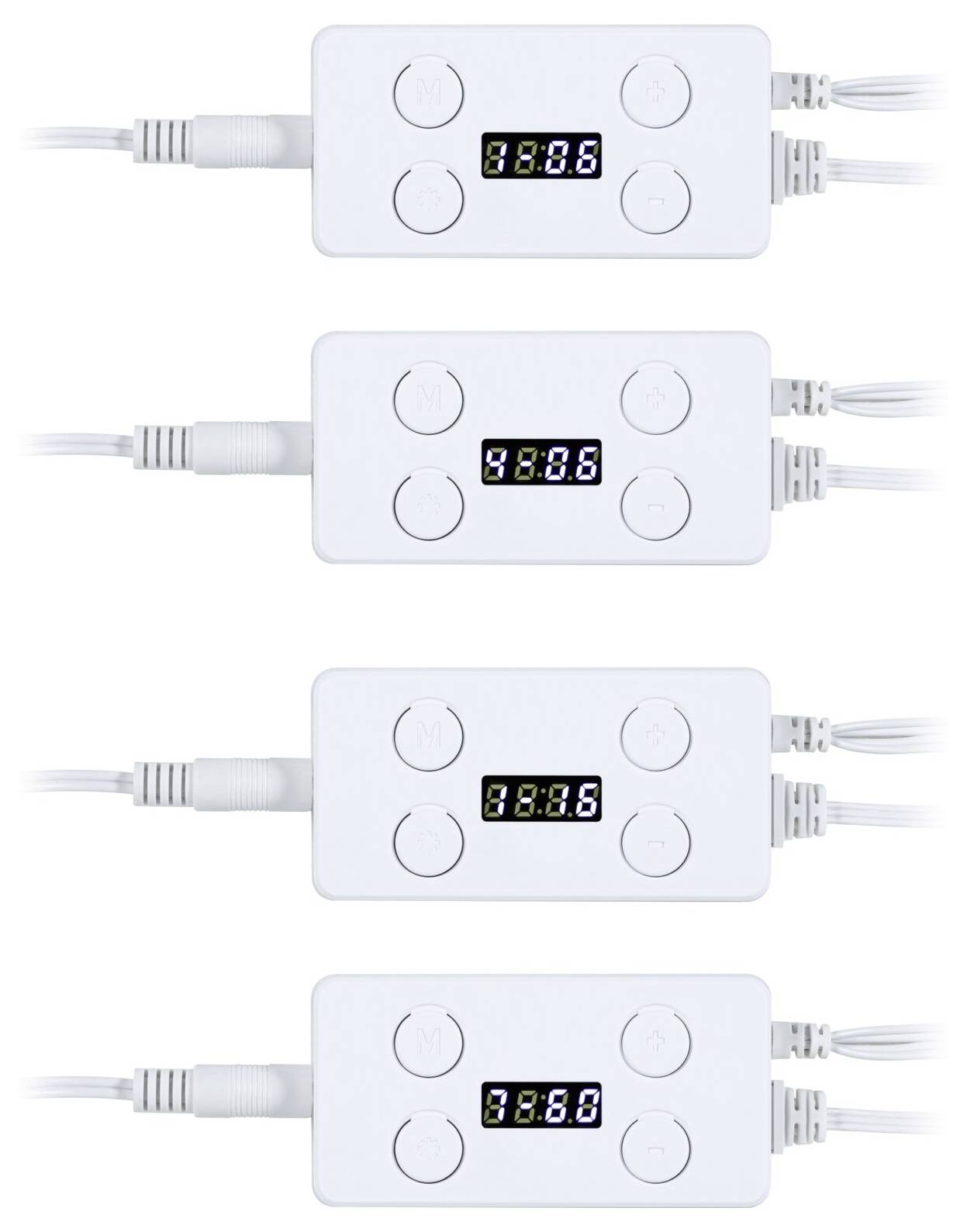

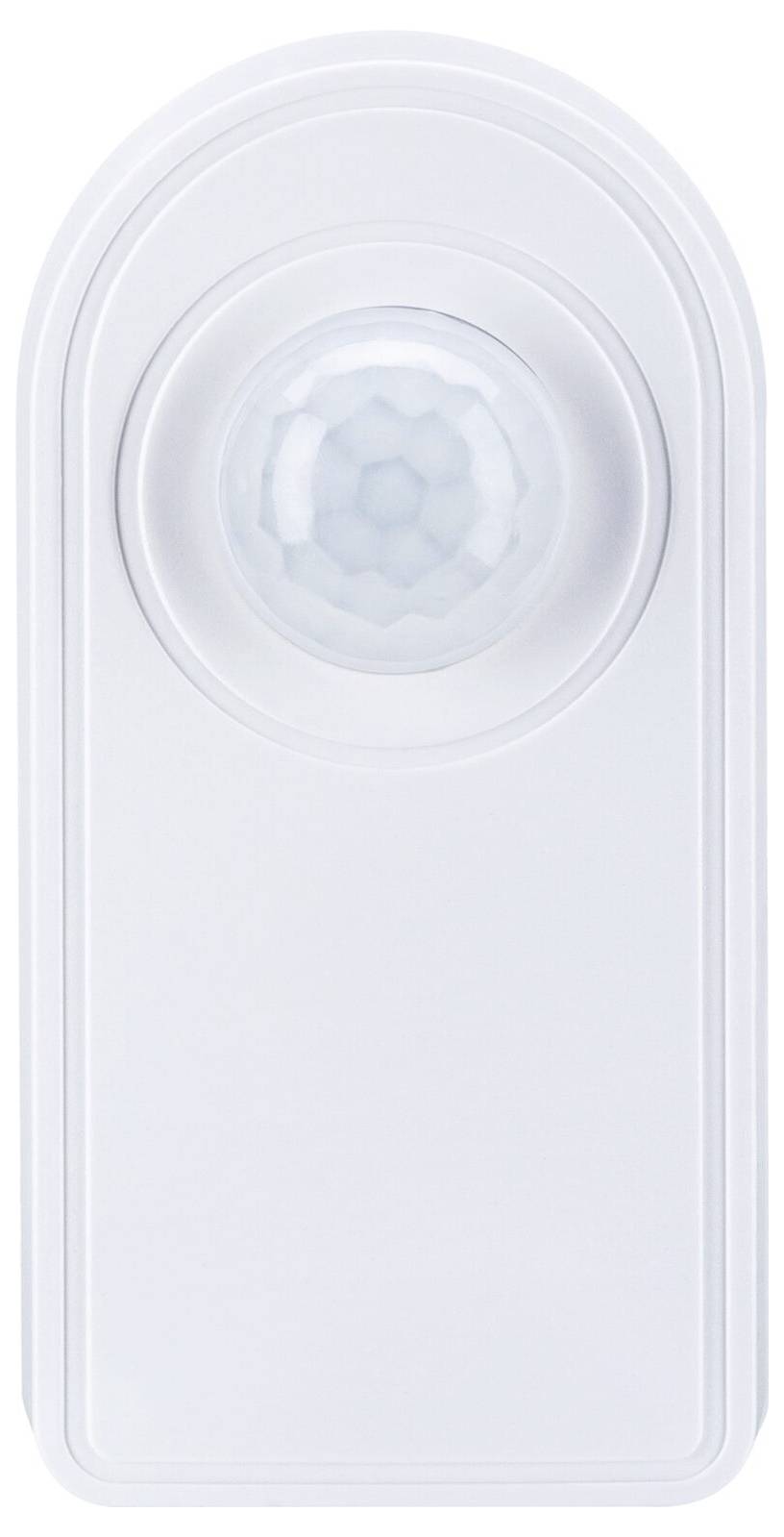

The MaxLED Stars installation set for the 230 V connection forms the basis for a stylish and secure staircase lighting. The special highlight is the "Lightwave" function. If the sensor in the OG triggers, the light builds up step by step from top to bottom. If first the sensor in EG is activated, the light builds up from the bottom to the top. In contrast to installation solutions, this system can also be installed later. In addition to a transformer and a controller, the set includes two radio motion detectors, which switch the light on and off automatically in order to avoid tripping over in the dark. Thanks to the wireless function, no additional cabling of the motion sensors is required. Together with the LED Strips that are included in the MaxLED Stais extension sets, the system can be flexibly extended to 1 to 18 levels. The strips can be installed below the stairs or as a light line on the staircases. The "Lightwave" function can be switched on or off optionally. With the controller, additional settings can be made for brightness, illumination time and speed. The display at the controller enables a quick and safe setting of the different modes. The system is compatible with the MaxLED connectors, so that it is possible to use the MaxLED connector (e.g. 70575) via Plug & Play.
