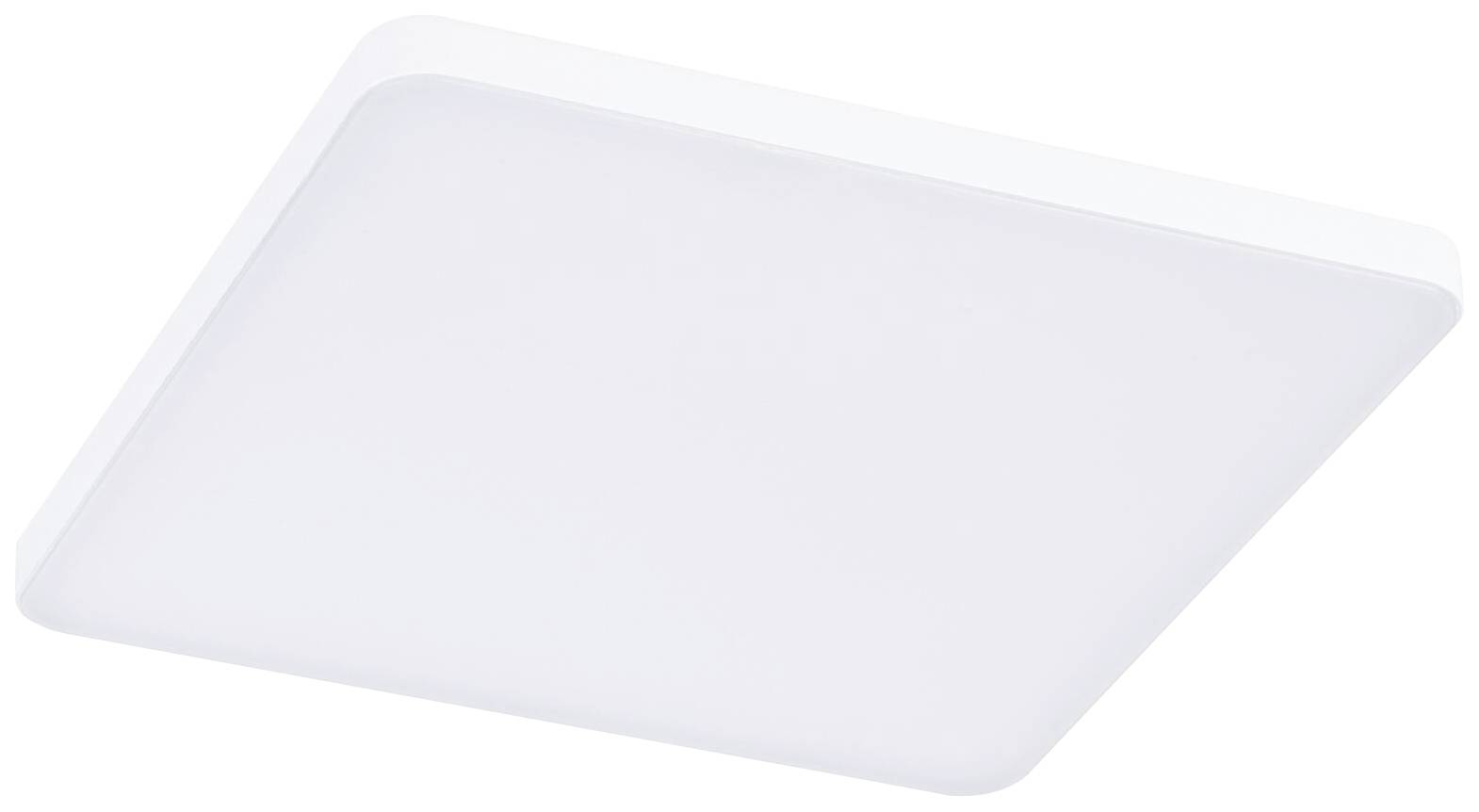

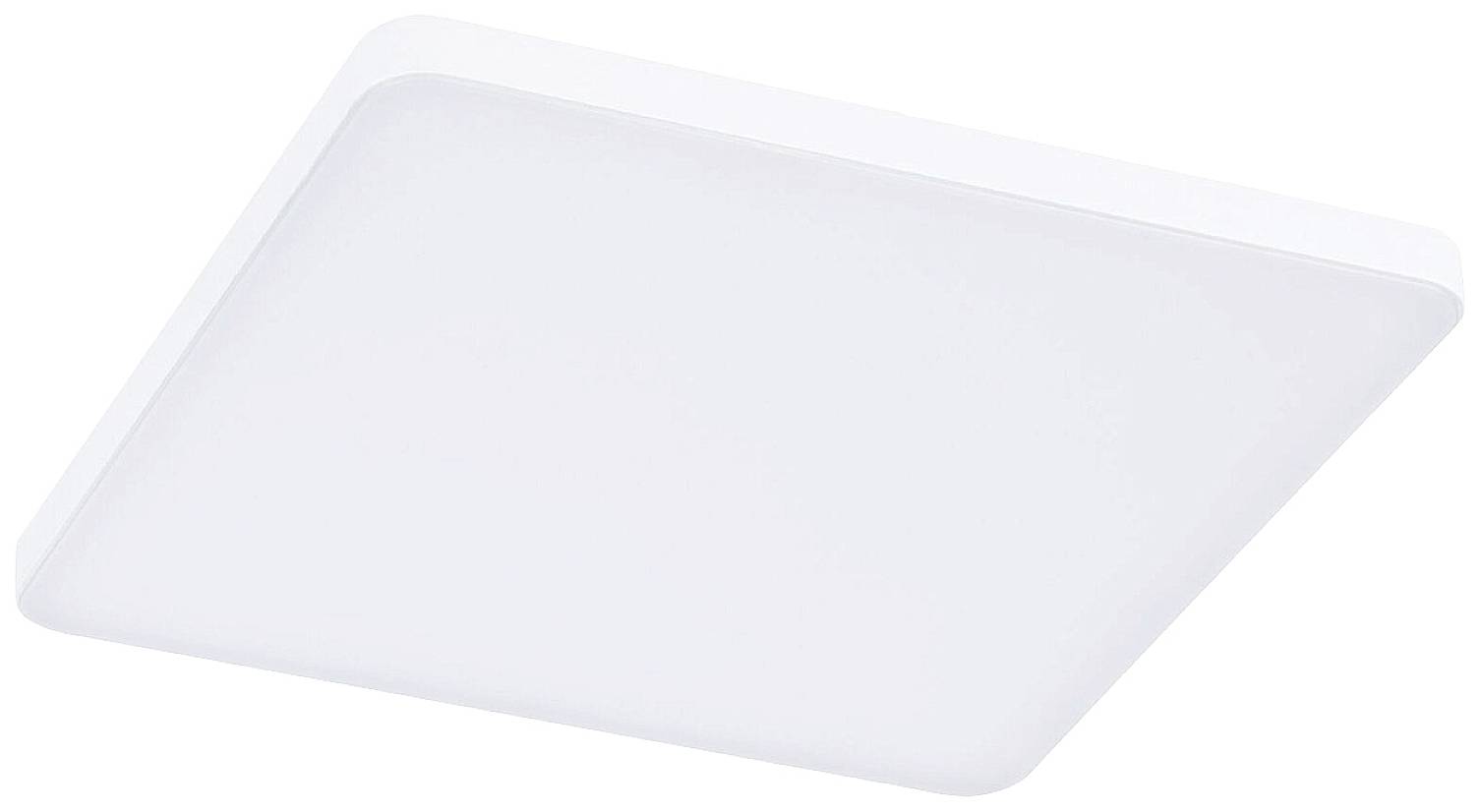

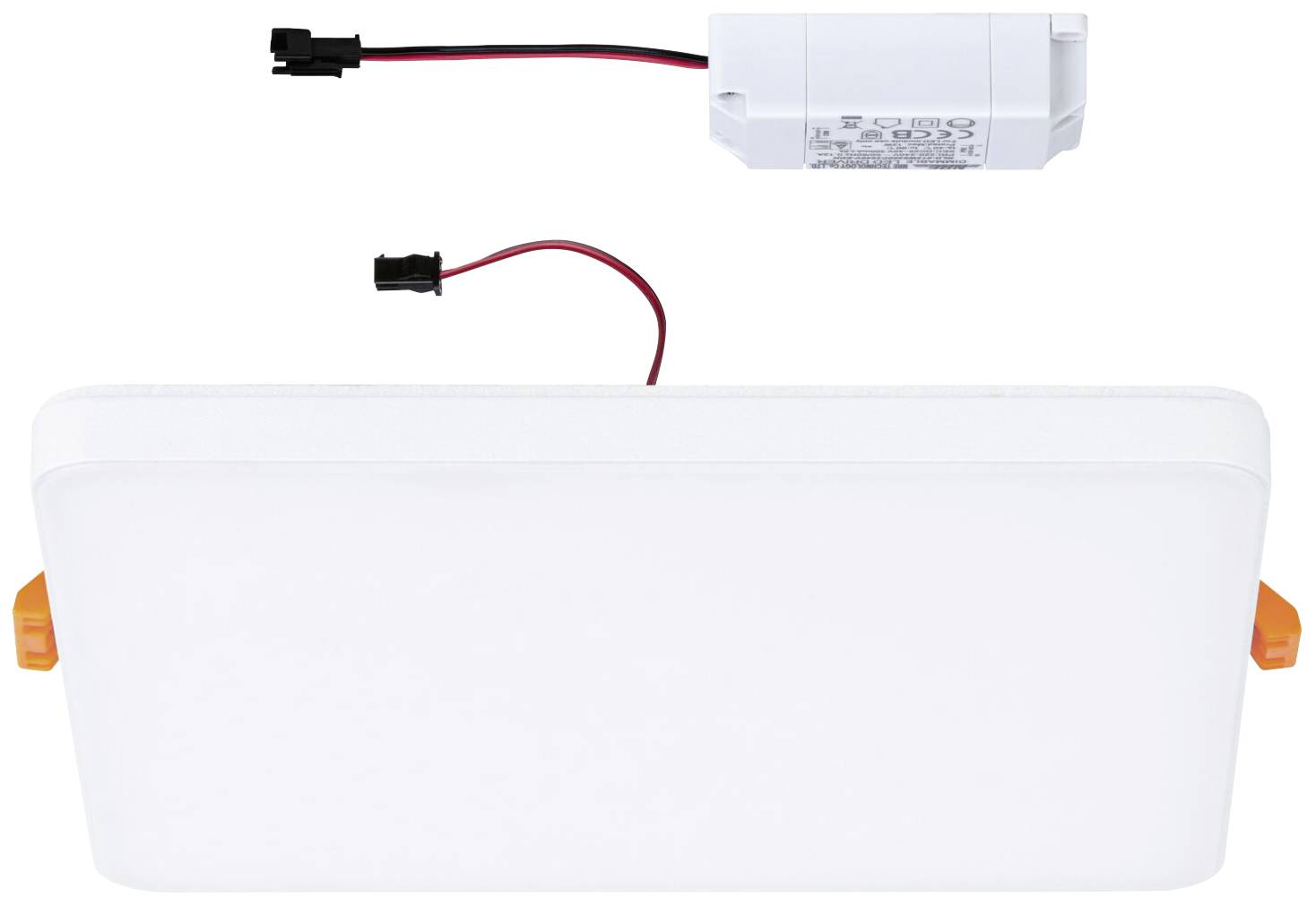

Paulmann 79948 LED recessed panel 12 W Warm white White
EAN:
Part number:
Item no:
Highlights & Details
VariFit LED mounting panel Veluna Edge
- Power= 12 W
- Total luminous flux= 1600 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- EEK class of light source included: D (A - G)
- Product type
LED recessed panel
- Type
Square
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
LED
- Rating per bulb
12 W
12 W
3000 K
- Colour
Warm white
1600 lm
- Total luminous flux
1600 lm
- Protection class
II
IP44 (ceiling-mount)
- Factory colour
White
- Width
160 mm
- Height
9 mm
- Length
160 mm
n.rel.
Yes
- Recess diameter
68 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2583012 Paulmann 79948 LED recessed panel 12 W Warm white White
Warranty Terms
Warranty Terms 2583012 Paulmann 79948 LED recessed panel 12 W Warm white White
Description

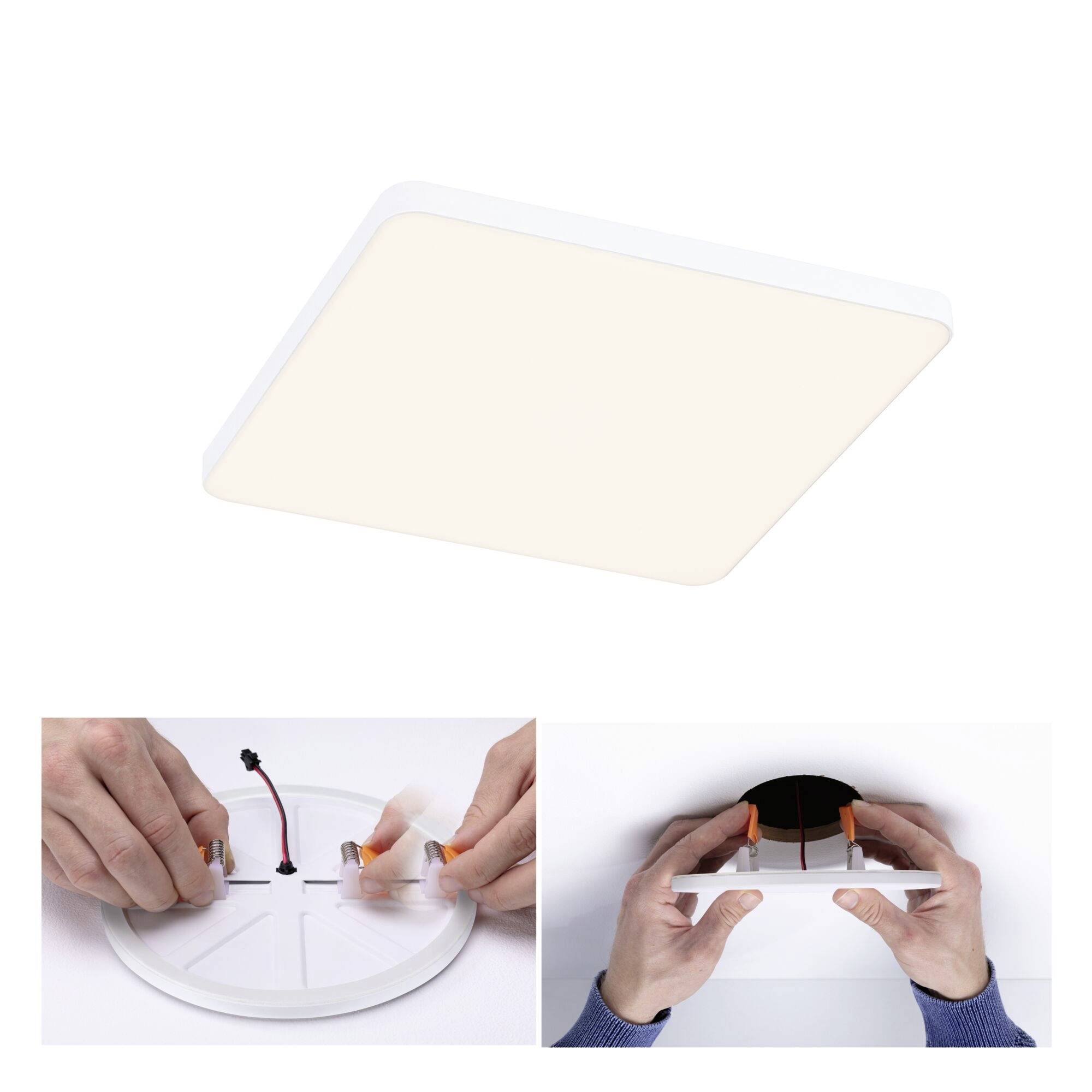

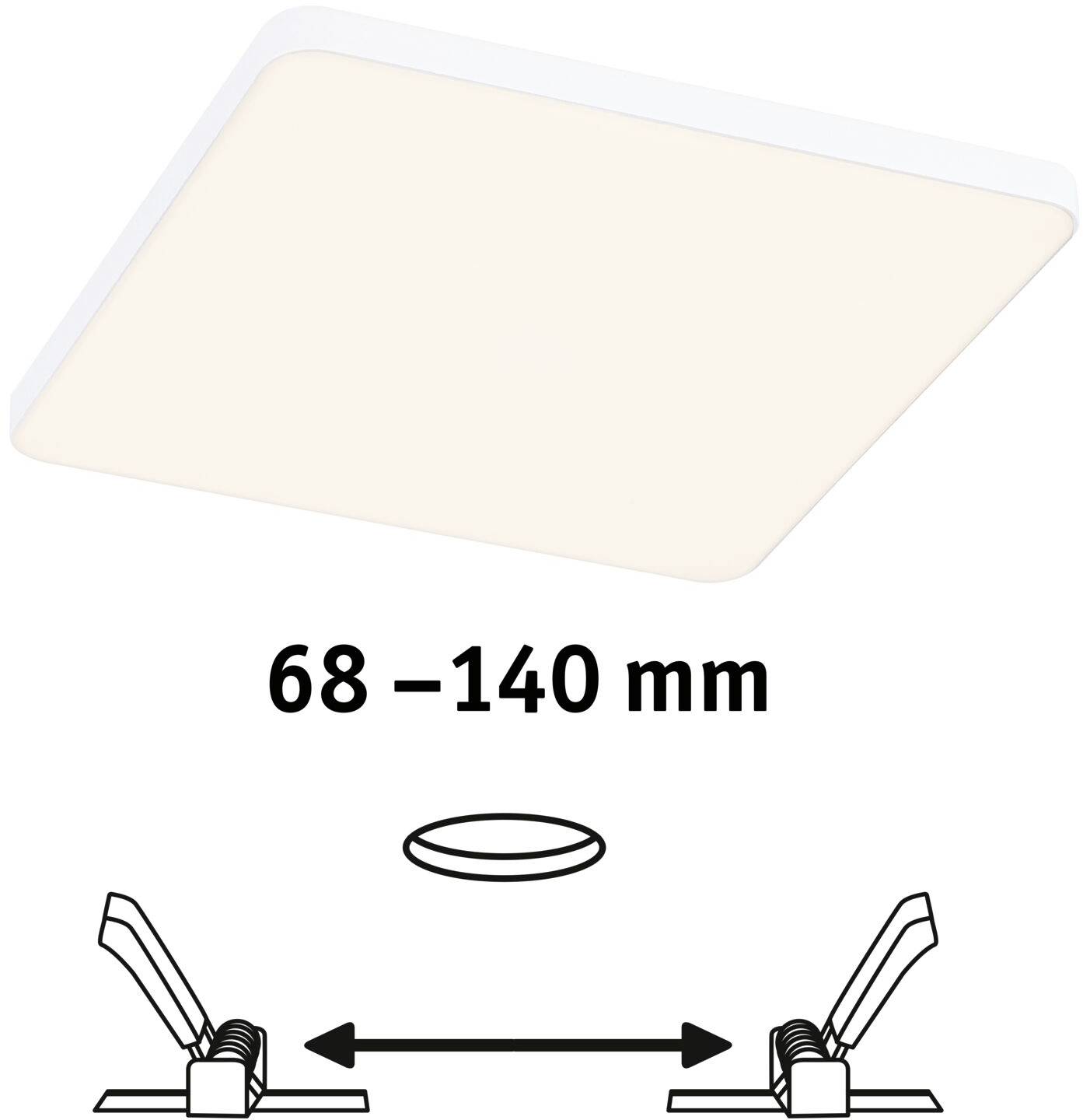

The dimmable, square mounting panel Veluna VariFit Edge impresses with a modern, frameless design in neutral white. With a size of 160x160 mm and a color temperature of 3000K, the panel ensures a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be adjusted continuously between 68 and 140 mm for installation. This allows the panel to be installed both in existing and in new drill holes. For a hole diameter of 68 mm, a cavity depth of 30 mm is required. The satin-finished plastic cover creates a fine light scattering and radiant, cozy light in warm white, which is individually adjustable thanks to the DIMM function.
This text is machine translated.
This text is machine translated.
Features
- DimmableParticularly flat designColor temperature: 3000K - warm whiteUniform room light based on the latest LED technologyHigh light yield with flat lightIP44 splash-proof for bathrooms and similar roomsSatin-finished plastic cover for fine light scatteringVariFit - flexible installation with continuously adjustable clamping springsWith integrated LED-lampService life 50,000 hours
Scope of delivery
- VariFit LED mounting panel Veluna Edge
