Name: Paulmann LumiTiles Basic Set Square 10x10cm 78402 LED panel (basic) LED (monochrome) 4.8 W Warm white White
Brand: Paulmann
SKU: 2525397

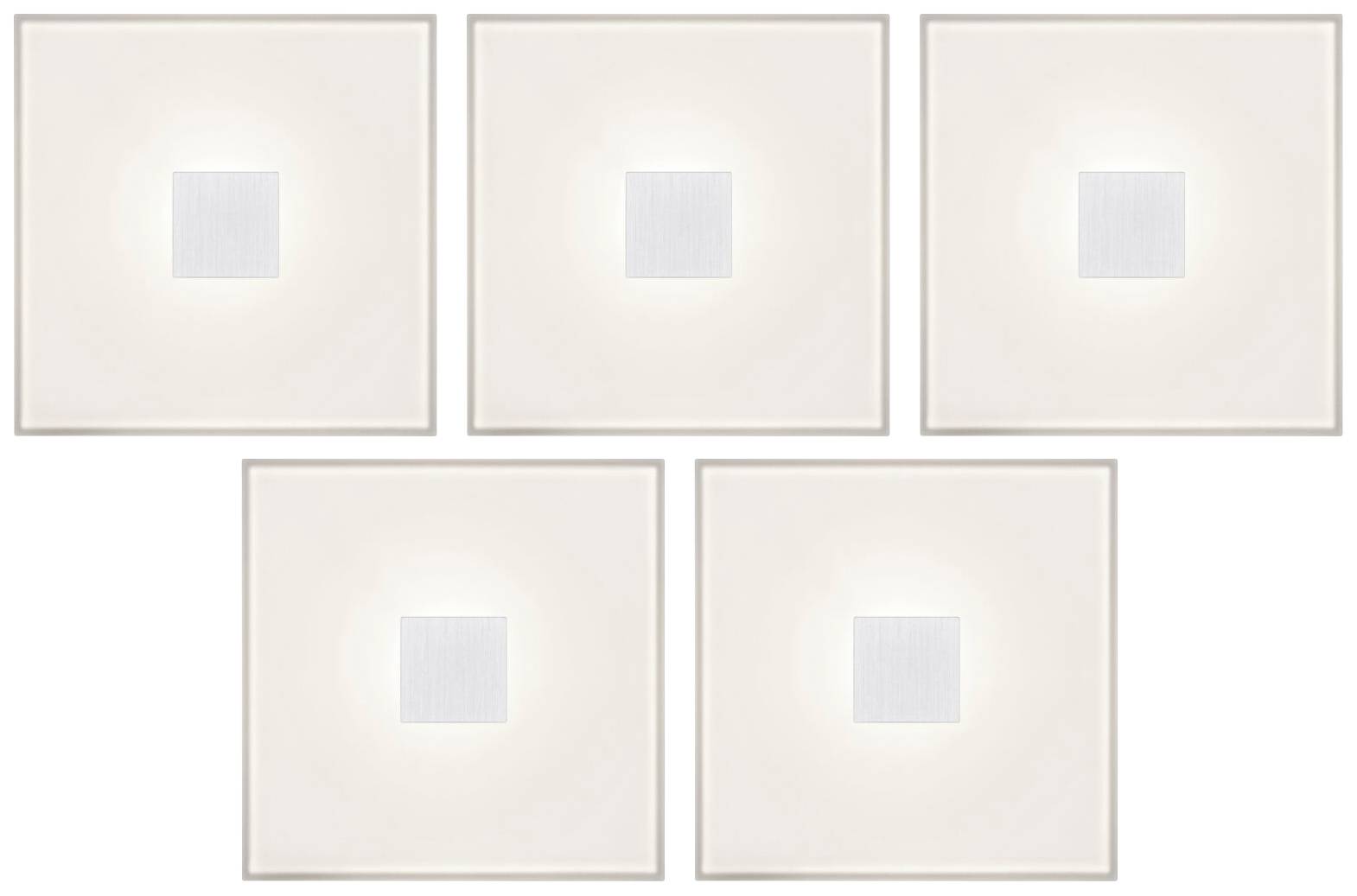

Five square, white frames, symmetrically arranged, on a light background. Each frame contains a small, central square.

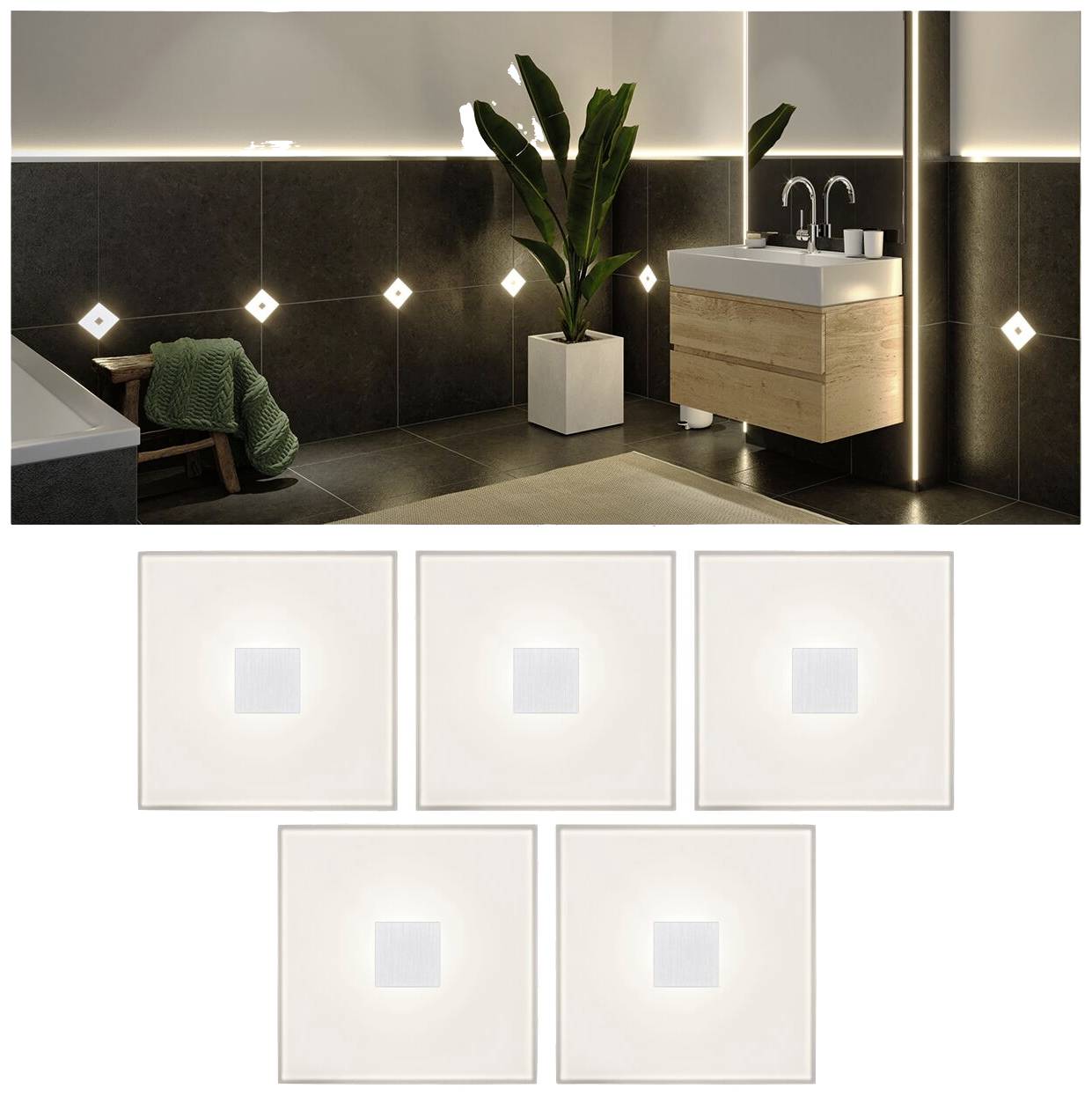

A modern bathroom fitted with dark tiles, a plant, and an illuminated washbasin. Six LED lights are integrated into the square tiles underneath.

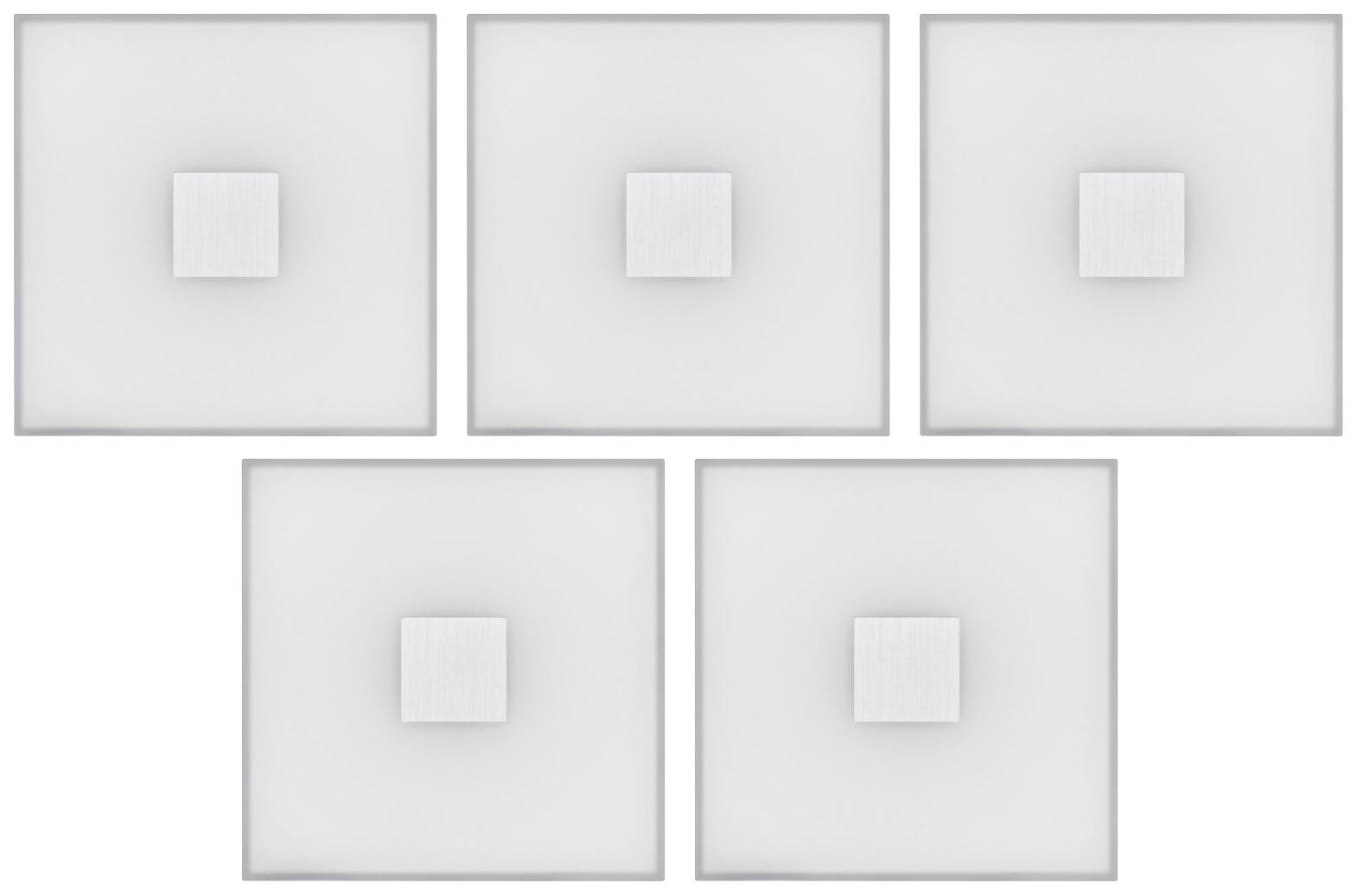

Five square objects, symmetrically arranged, each with a smaller square in the centre on a white background.

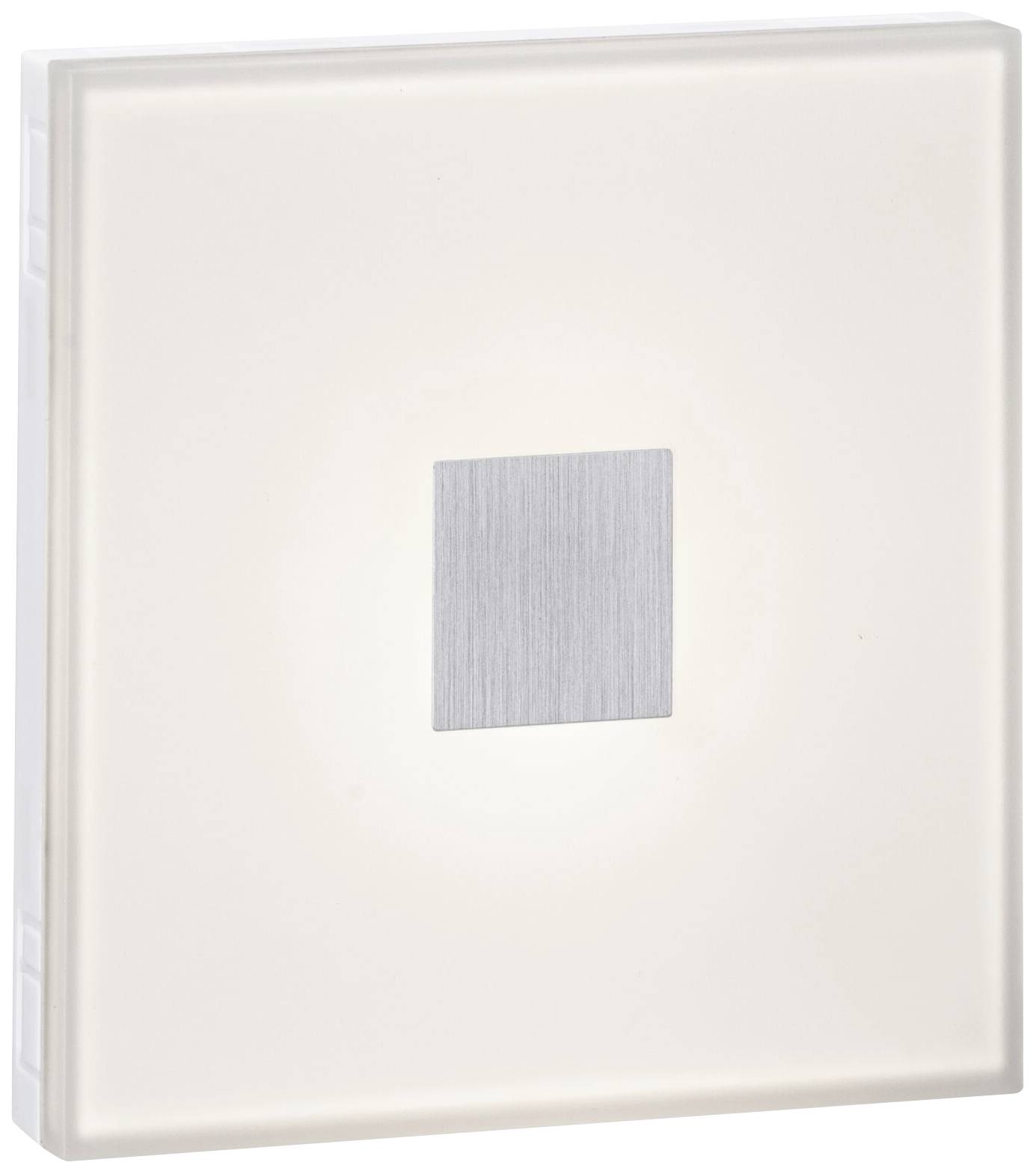

Square light switch, minimalist design, light-coloured material with a central grey area.

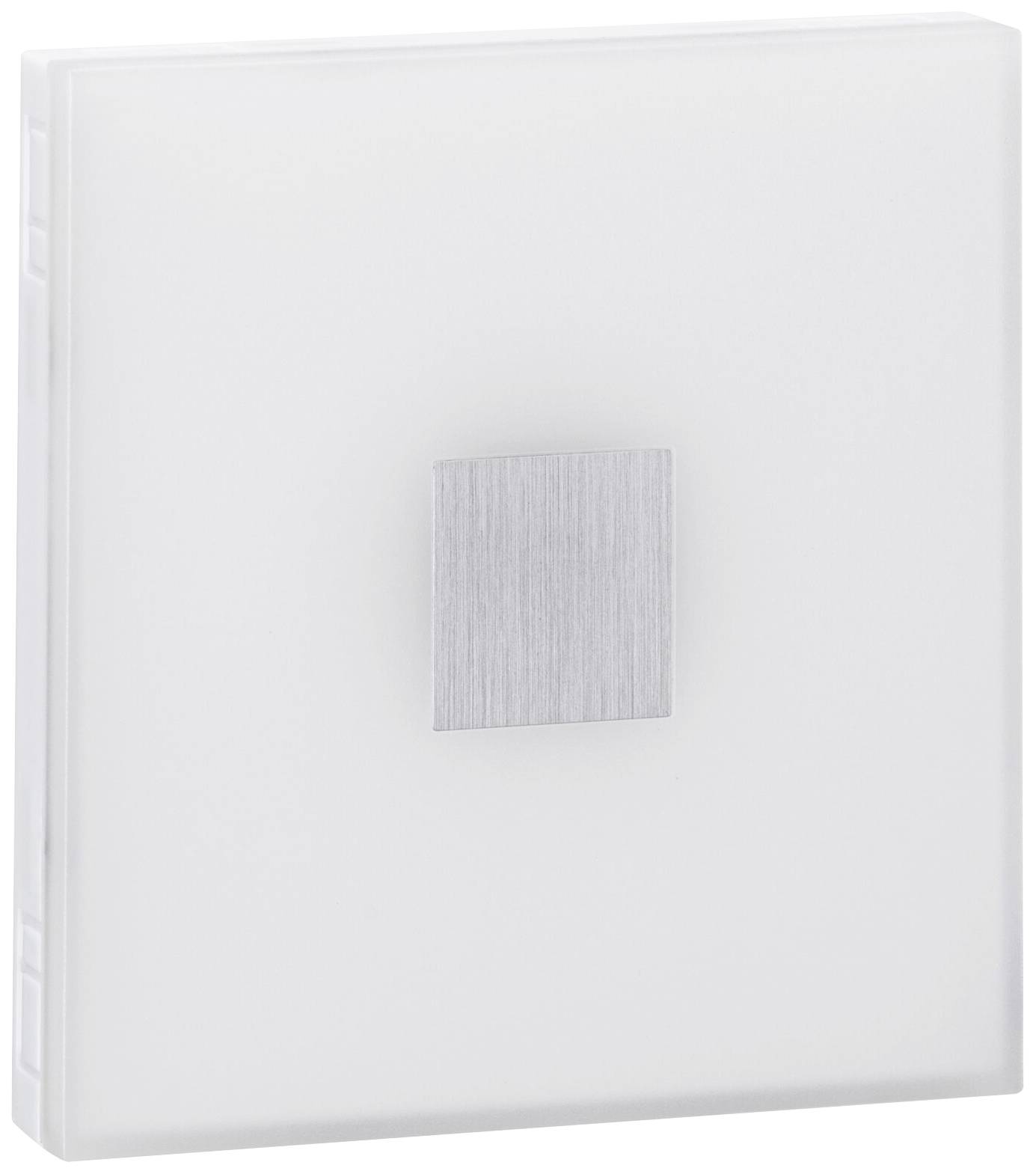

White, square light switch with a silver button in the centre. Simple, modern design for residential or office spaces.

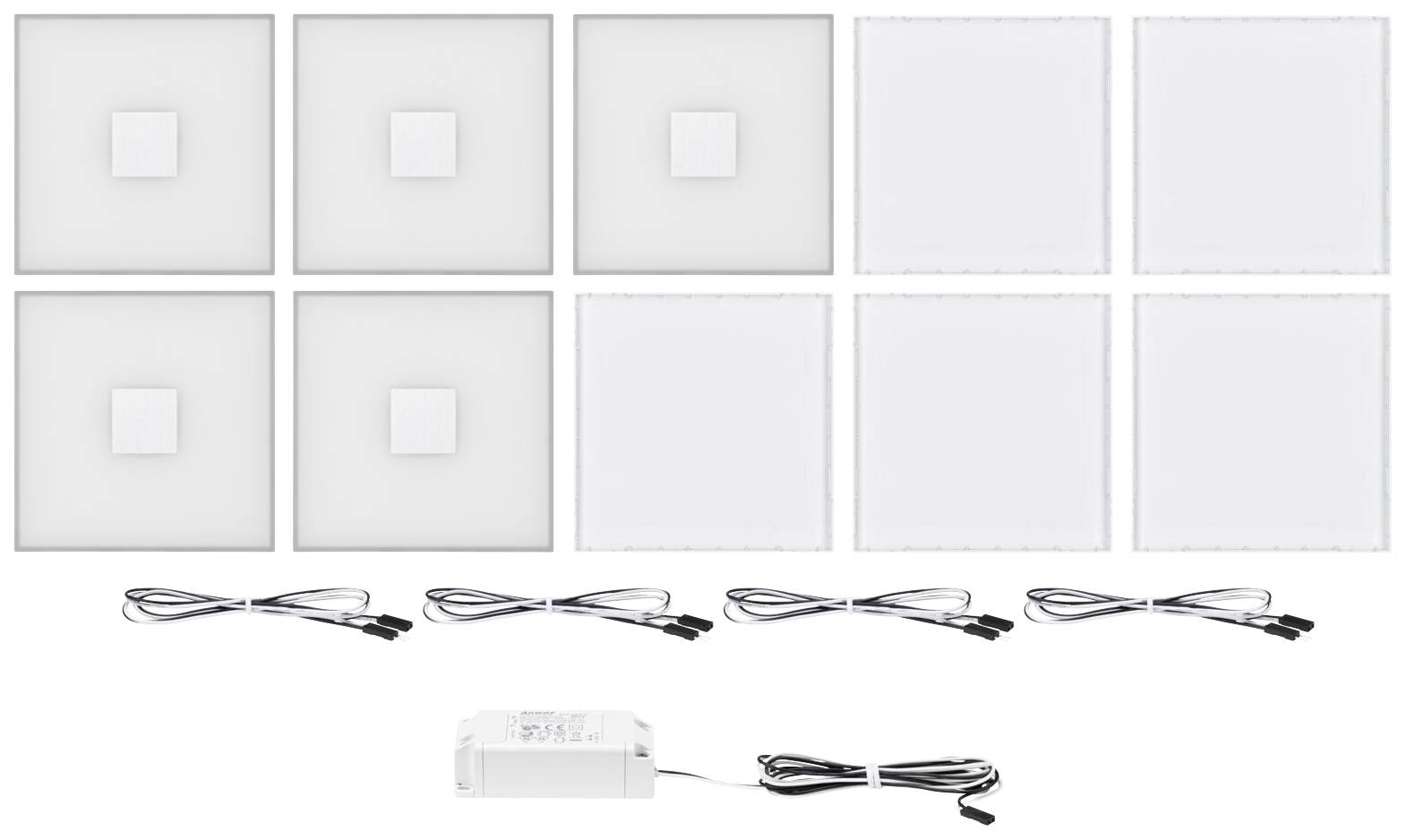

Eight square LED panels with cables and a power adapter. Panels are alternately arranged in two designs: some with and some without a central square.

A picture is mounted in a frame positioned 10 mm away from the wall.

Modern bathroom with dark tiles, illuminated mirror and suspended washbasin. Plant to the left of the washbasin.

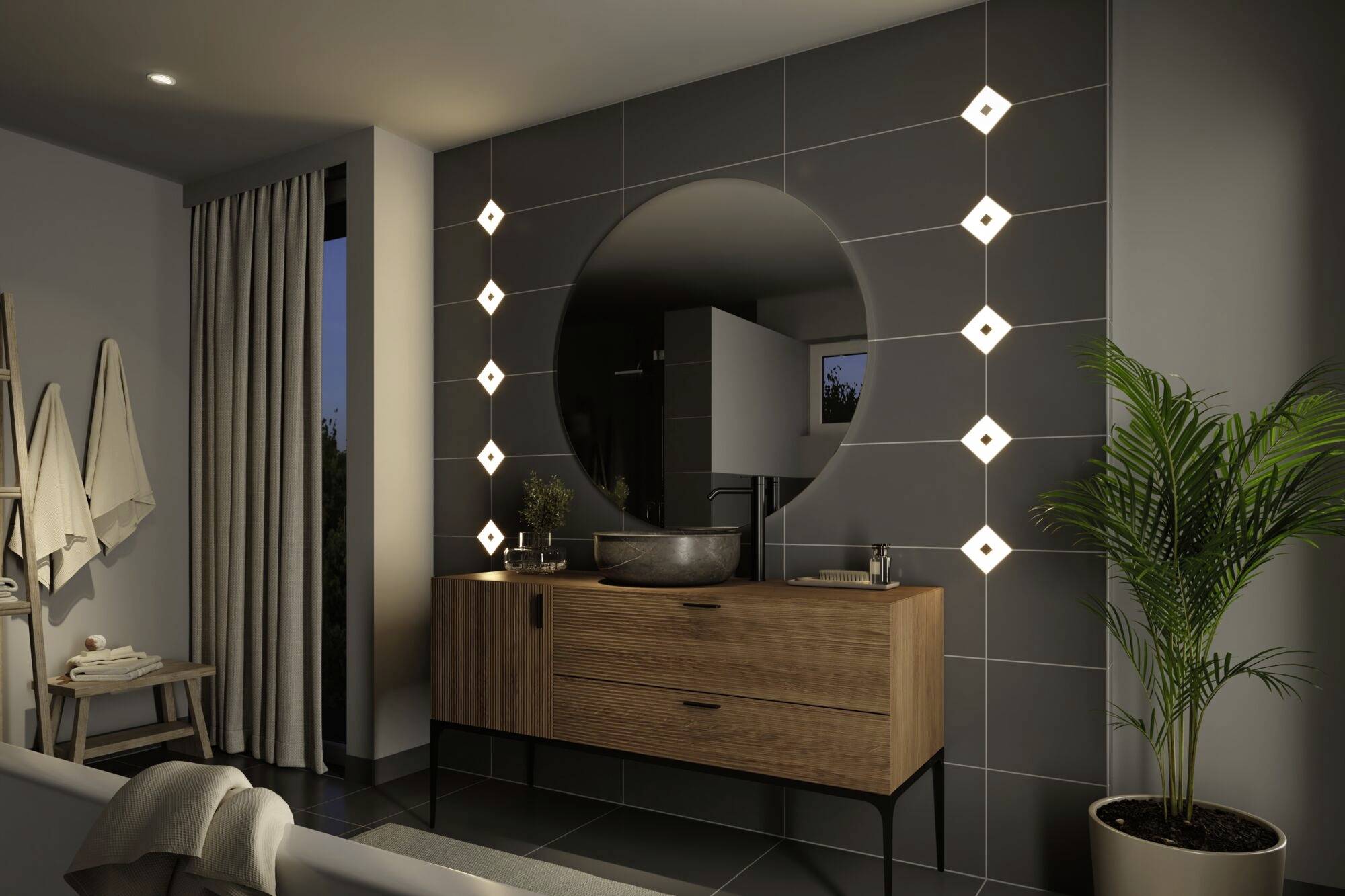

A stylish bathroom with a round mirror, a wooden chest of drawers and modern wall lights. A plant stands to the right.

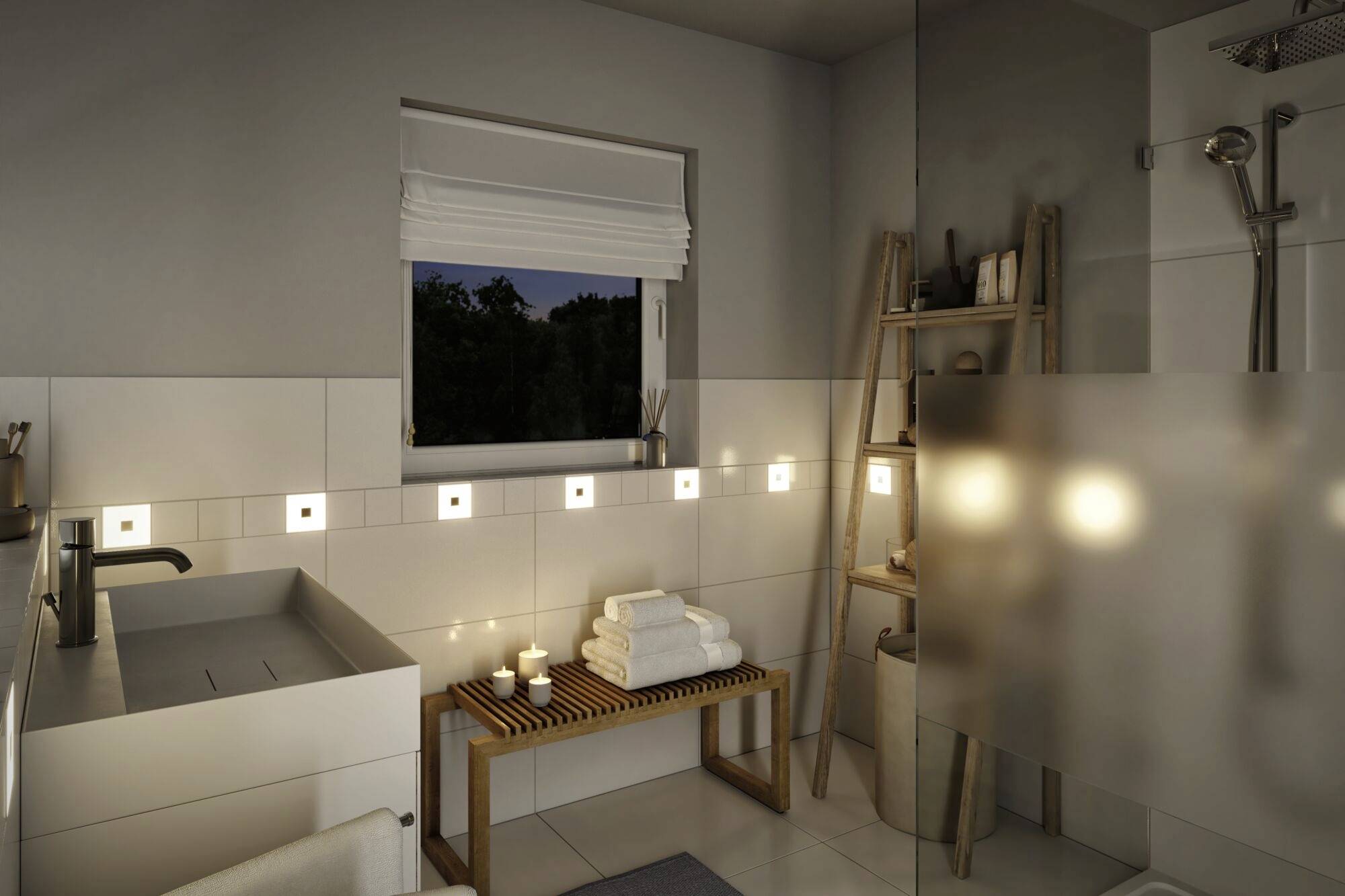

Modern bathroom at night, brightly lit with warm light. Washbasin on the left, wooden bench with towels and candles on the right.

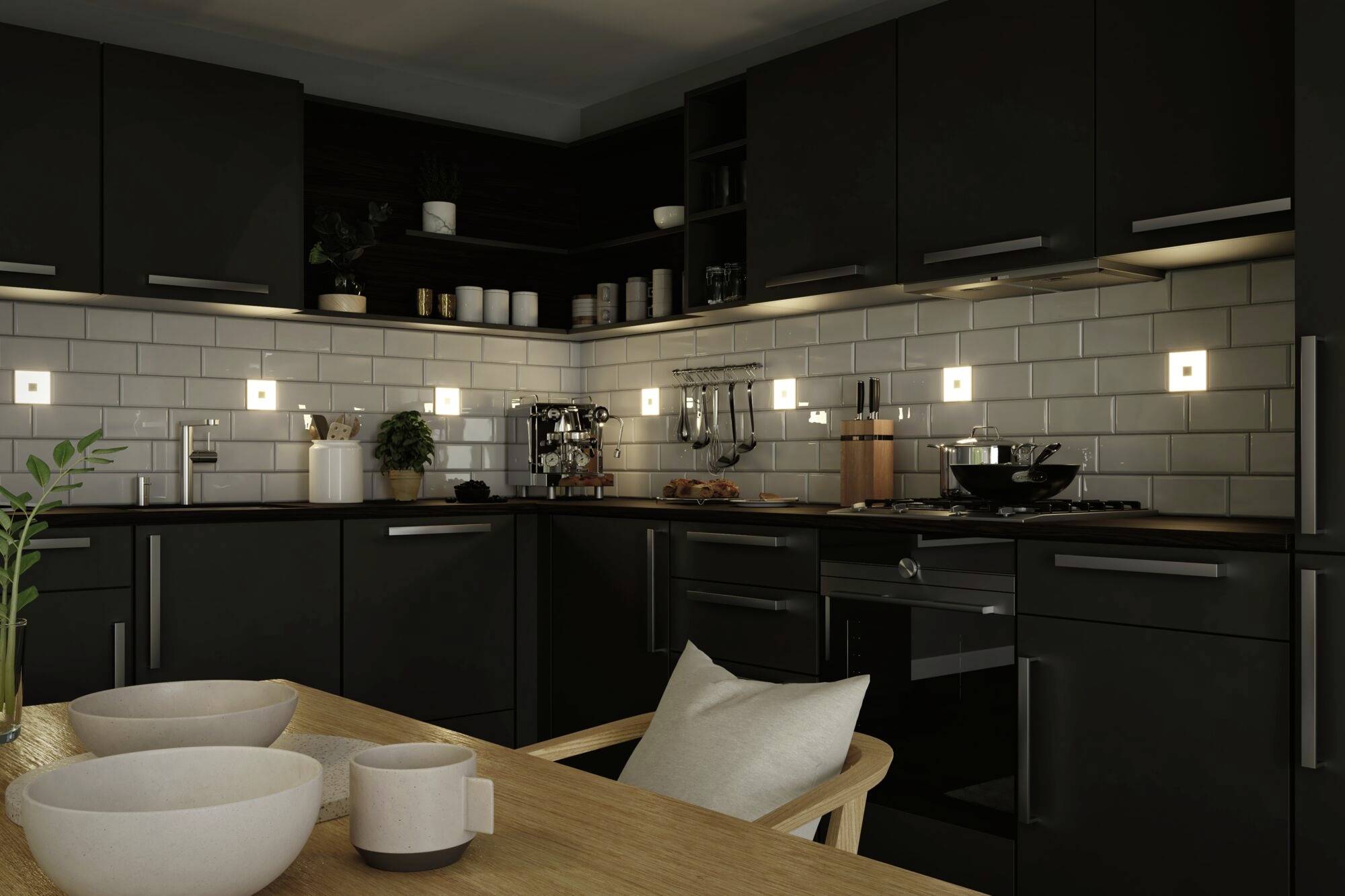

Modern kitchen with dark cabinets, white tiled splashback and wooden table in the foreground. A cosy atmosphere with lighting.

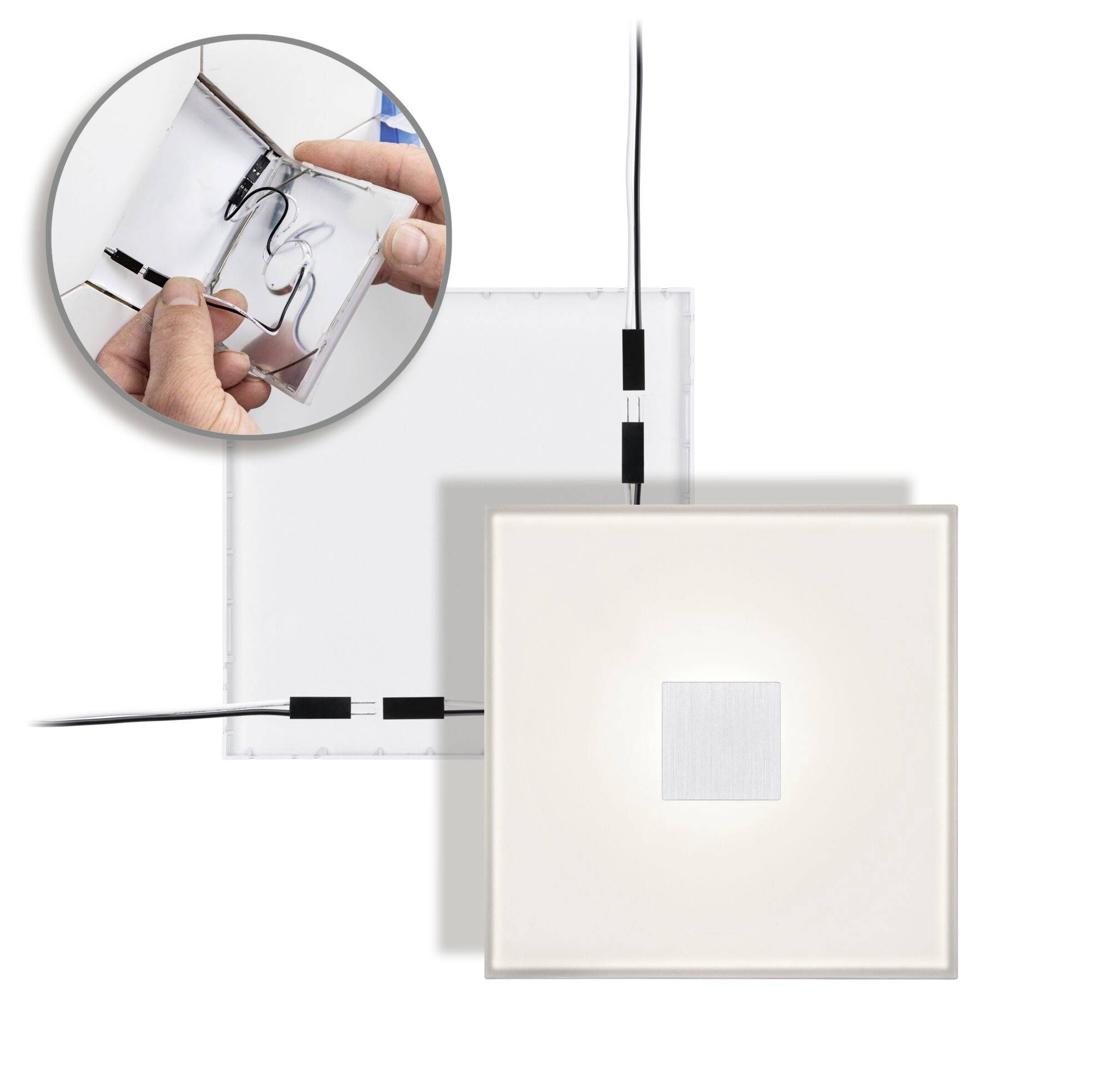

Square, illuminated panels with wiring. An enlarged detail shows a hand fixing a connection with adhesive.

Diagram of a mechanical assembly with four interconnected rectangular components. First component is 80x50x22.5mm, distances: 150cm, 65cm.

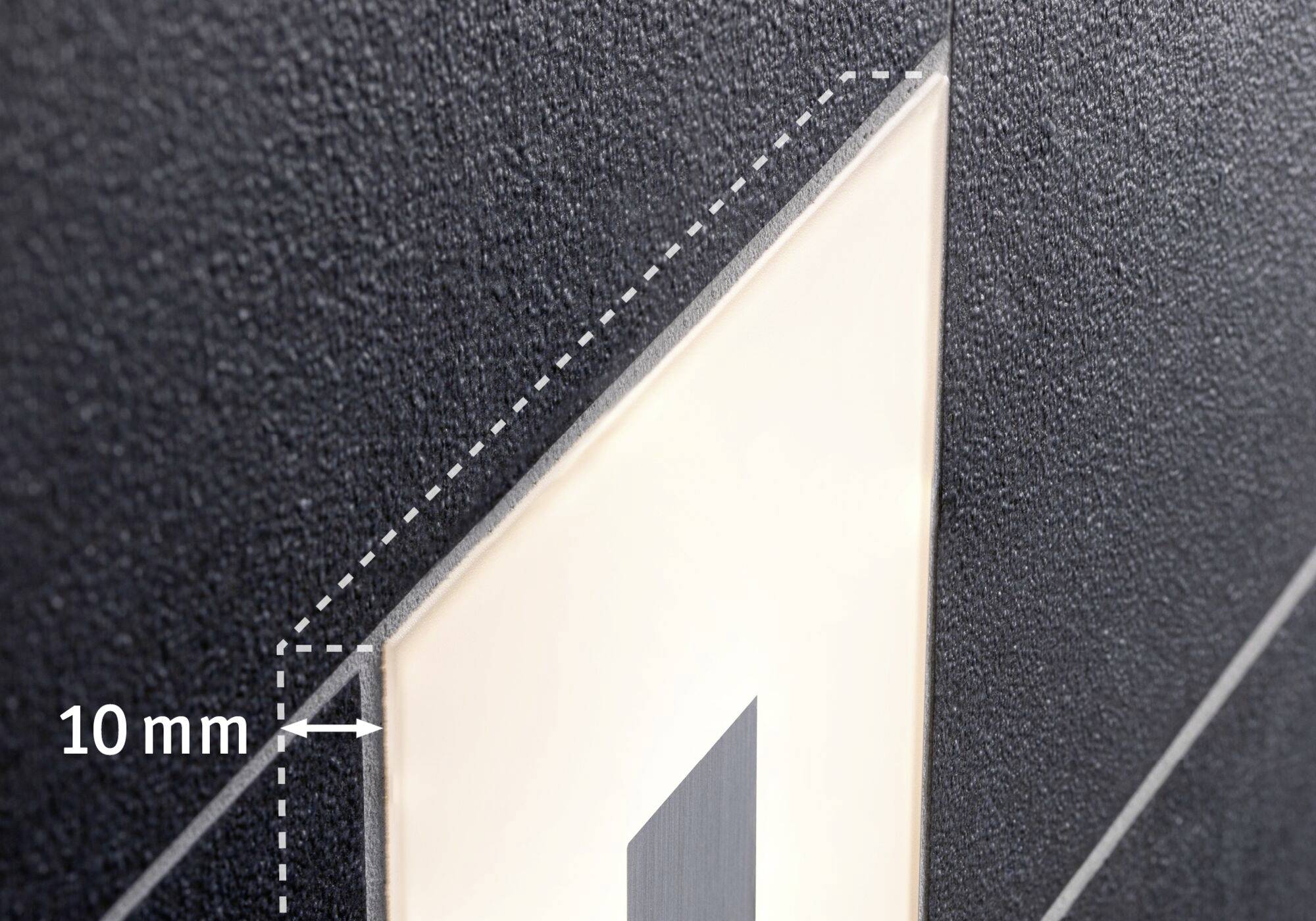

Close-up of a black, textured surface with a 10 mm protrusion pointing towards a raised plate.

1/14

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LumiTiles LED tiles square set of 5 IP44 100x10mm 5x70lm 230/12V 5x0.8W 2700K white plastic#aluminum

LumiTiles LED tiles generate an effective homogeneous light
Planar light
Colour temperature 2700K - warm white
IP44, suitable for damp rooms and outdoors

Technical specifications

Product type: LED panel (basic)

Operating voltage: 230 V

No. of bulbs: 5

Bulb type: LED (monochrome)

: LED

Rating per bulb: 0.8 W

: 4.8 W

: 2700 K

Colour: Warm white

: 70 lm

Total luminous flux: 350 lm

Protection class: II

: IP44

Factory colour: White

Dim: (L x W x H) 10 cm x 100 mm x 100 mm

Feed length: 60 cm

: n.rel.

Content: 1 Set

Light bulb included: Yes

Width: 100 mm

Height: 100 mm

Length: 10 cm

Depth: 10 mm

Output voltage: 12 V

Documents & Downloads

Datasheet

Datasheet 2525397 Paulmann LumiTiles Basic Set Square 10x10cm 78402 LED panel (basic) LED (monochrome) 4.8 W Warm white White

User & Safety Instructions

User & Safety Instructions 2525397 Paulmann LumiTiles Basic Set Square 10x10cm 78402 LED panel (basic) LED (monochrome) 4.8 W Warm white White

Description

The efficient 100x10mm LumiTiles LED Tiles Square basic set with a power of 5x0.8W consists of five tiles, four connection cables (length 60 cm) and a transformer including connection. Despite the IP44 protection, the warm-white LED tiles have a minimum installation depth of only 10 mm and thus fit between standard wall tiles. Either the modules are plugged directly into plug & play or connected optionally via cable with 25, 65, 105 or 205 cm distance. The Paulmann LumiTiles system is suitable for every project thanks to its enormous flexibility, easy installation and extra long service life. The basic set can be supplemented with further LED tiles and connection cables.
