PCE Instruments BIA1-SY-10-310 Door force gauge 0 - 310 N ISO standards
- Closing force measurement system for bus and train doors and sliding stepsClosing force meter / safety through clamping force measurementApplicable standards EN 147522005 VDV 111 2001/85/EGPrecise measurementsRobust design.Easy to useSingle button operation or remotely operated via Microsoft® DLL interface or NationalNinstruments® LabView libraryComplete delivery package including high-quality transport case and softwareExtensive professional PCSoftware PinchPilotComprehensive user support Calibration service Standard change serviceSupport the management of large fleets
Technical specifications
- Original BIA class 1Measuring range 25 310 NAccuracy +/ 3 N or 3% of the measured valueResolution 1 NStiffness 10 N/mmGap width 115 mmDiameter 100 mmMeasurement principle: DMS transducersDetection frequency/rate 250 Hz / 4 msPower supply battery 9 Vblock e.g. 6LR61Battery voltage monitoring YesOperating temperature range 10 to +40 °CStorage temperature range 40 to +50 °CHumidity not condense max. 90% relative airDimension: 260 x 130 x 115 mmWeight 21 kg.Display device SEB2Data logger unit with LCD display and LED status indicators serial control buttonInterfaceOptional PC-controlled measurement9 V battery supplyReal-time clockMemory for 100 measurementsSensor and PCInterfacePeak value display and effective force displayEvaluation display i O/n i OPC analysis software PitchPilotMULTI-LINGUAL (EN IT FR ES)Graphical representation of the force courseCalculation of the relevant standard valuesEvaluation according to different guidelines possibleCustom policy can be setProtocol printoutData export (Excel CSV PDF)Optional measuring point identificationSystem requirements software PinchPilot (see tab Software/App)
- Product type
Door force gauge
- Display
Analogue
- Force reading range (max.)
310 N
ISO standards
- Dim
(L x W x H) 260 x 130 x 115 mm
- Weight
2100 g
- Resolution (force)
20 N
- Basic accuracy
3 %
- Force reading range
0 - 310 N
- Force reading range (min.)
0 N
- Reading frequency
250 Hz
- Width
130 mm
- Height
115 mm
- Length
260 mm
- Interfaces
RS232C
USB
Serial
USB 2.0 port B
USB 2.0 connector B
USB 2.0 connector A
4-wire
USB 2.0 connector internal 4-pin
1x RS485
1x USB 2.0 (device)
Show more
Documents & Downloads
Datasheet
Datasheet 2813707 PCE Instruments BIA1-SY-10-310 Door force gauge 0 - 310 N ISO standards
User & Safety Instructions
User & Safety Instructions 2813707 PCE Instruments BIA1-SY-10-310 Door force gauge 0 - 310 N ISO standards
Description

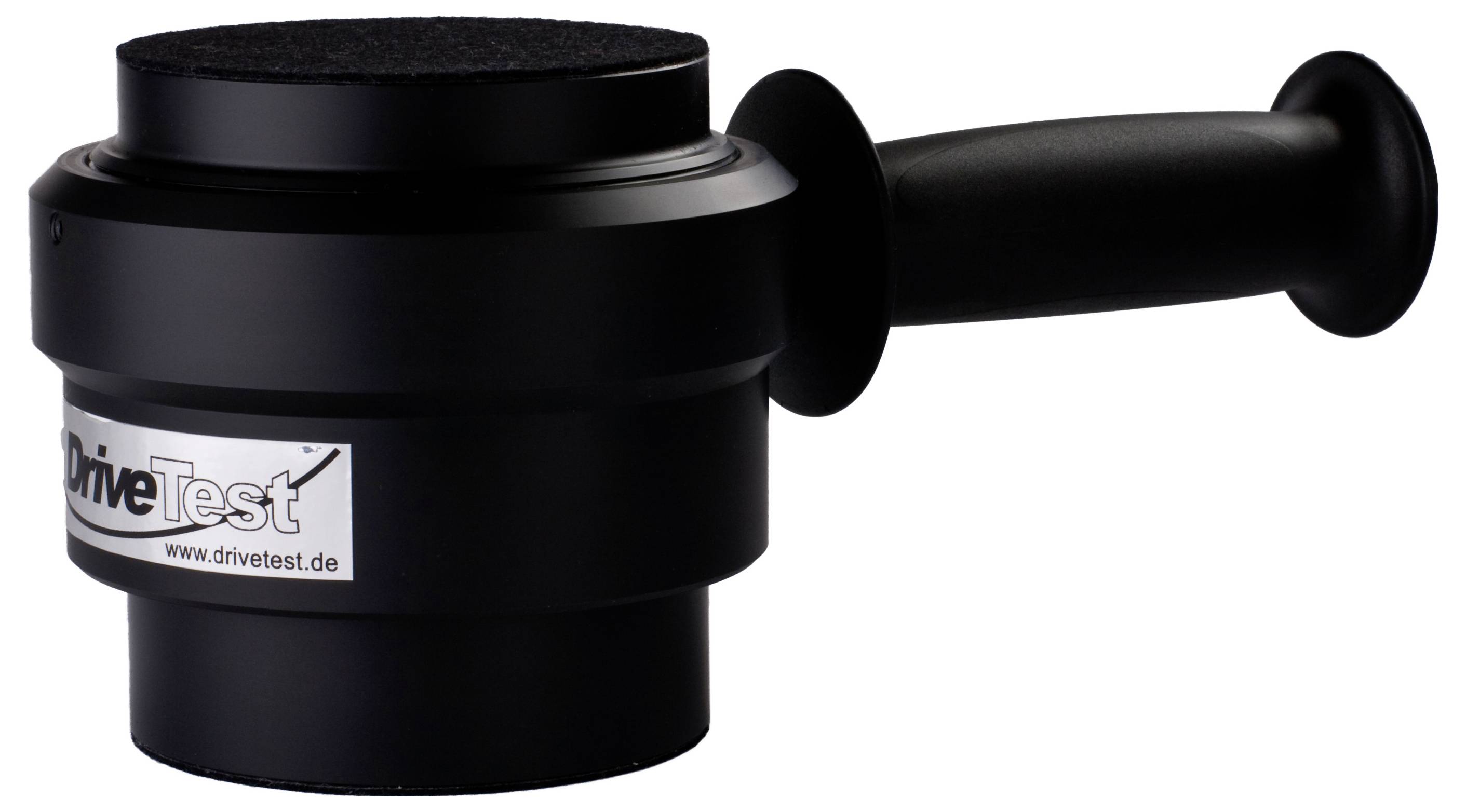

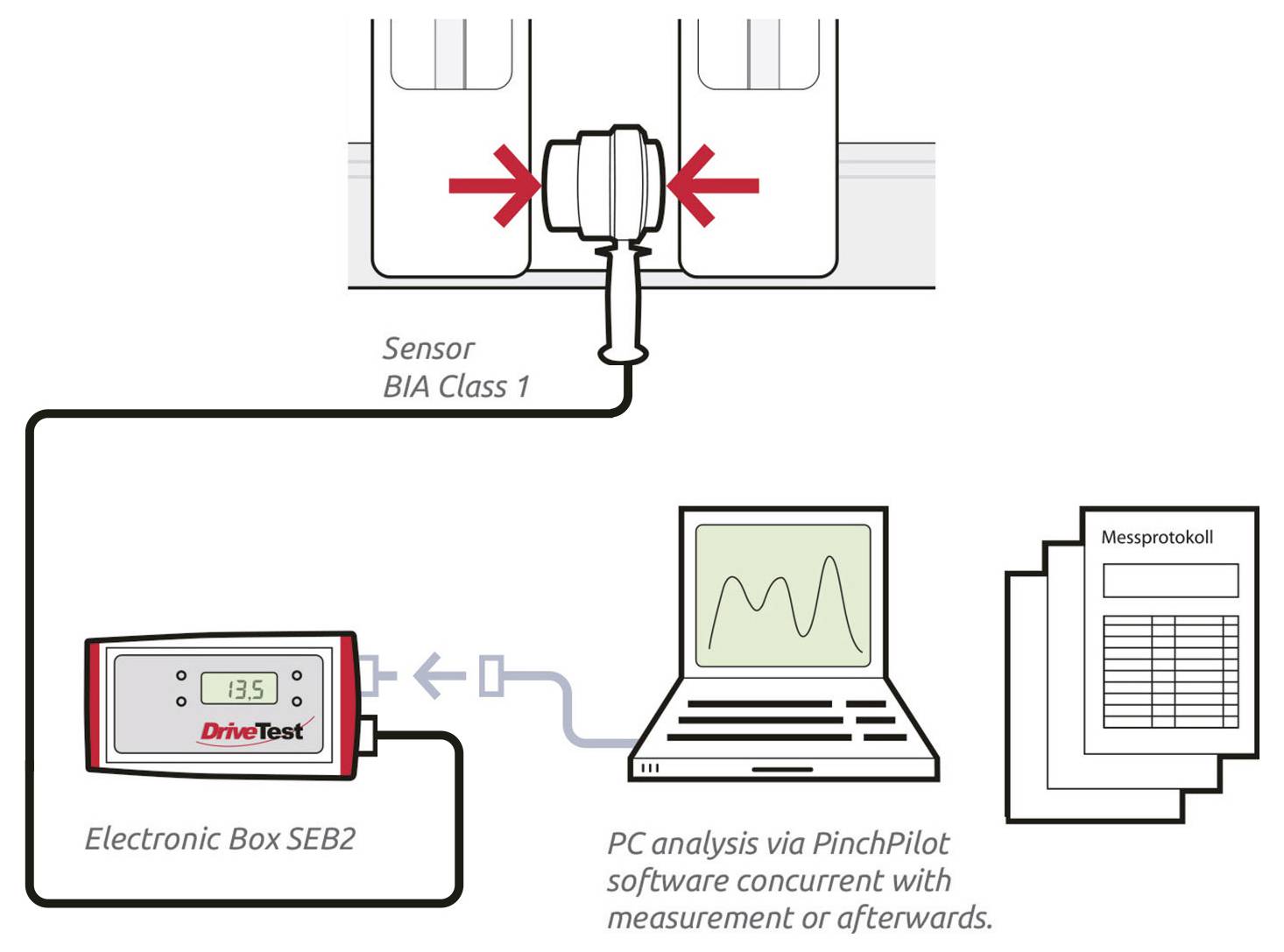

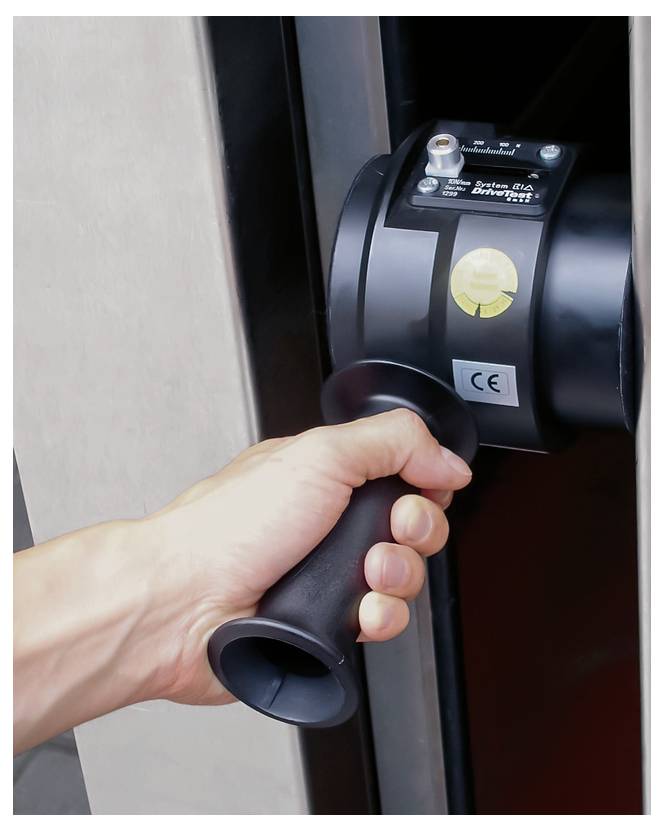

The original BIA class 1 is an electronic closing force meter for rail vehicle and bus doors. The complex design combines precision with practical robustness and ensures accurate measurements even after years of use in harsh environments.For cyclic measurements on vehicles with several doors, fast, simple implementation is of great importance. For this purpose, a software was developed that drastically reduces the process of the measurements and the expenditure for the documentation. With a few operating steps, the measurements of a complete vehicle can be taken over, printed in tabular form and stored in a database.For integration into an automated test sequence, we provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW).
This text is machine translated.
This text is machine translated.
Features
- Applicable standards EN 147522005 VDV 111 2001/85/EGPrecise measurementsRobust design.Easy to useSingle button operation or remotely operated via Microsoft® DLL interface or NationalNinstruments® LabView libraryComplete delivery package including high-quality transport case and softwareExtensive professional PCSoftware PinchPilotComprehensive user support Calibration service Standard change serviceSupport the management of large fleets
Scope of delivery

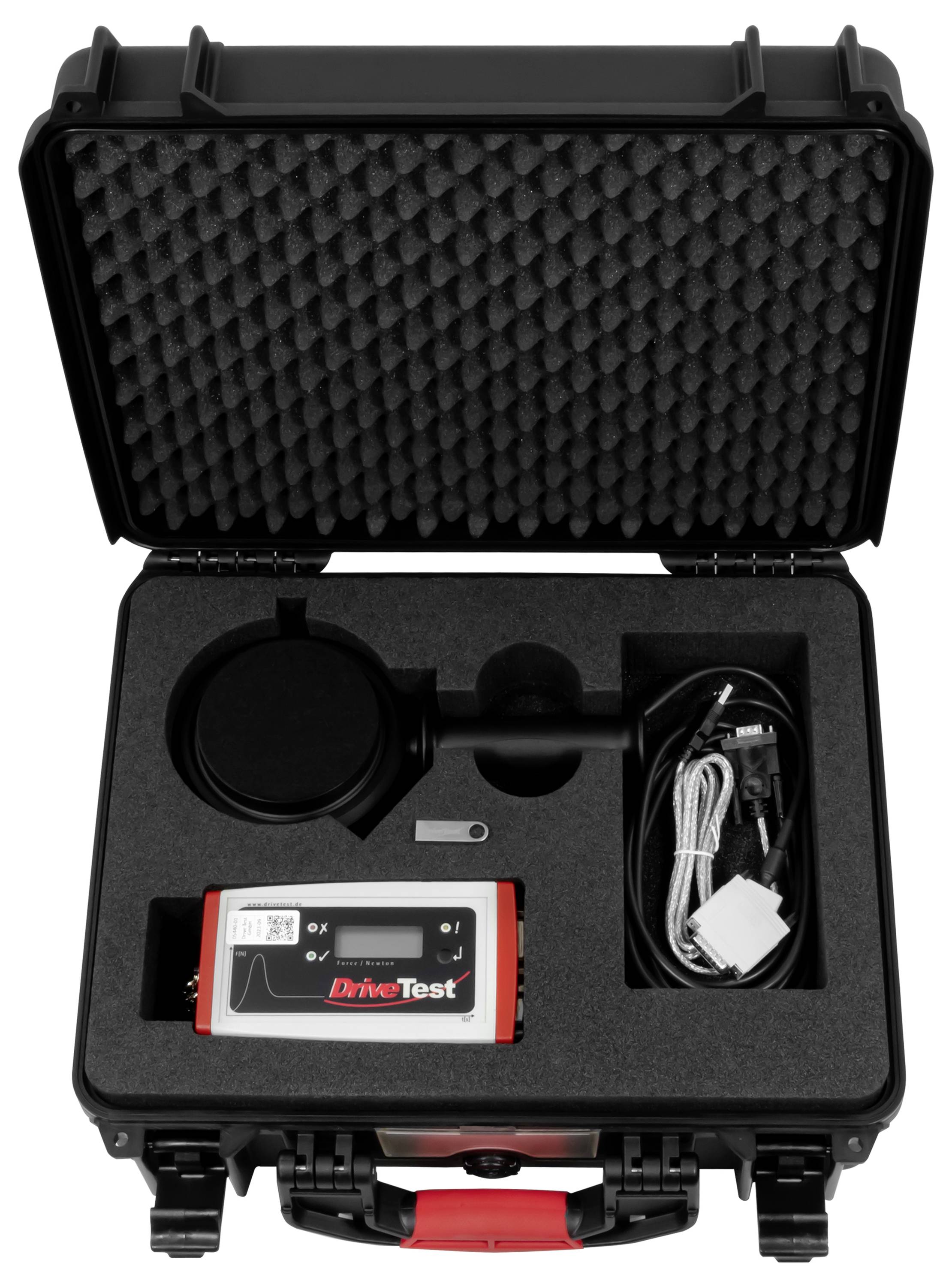

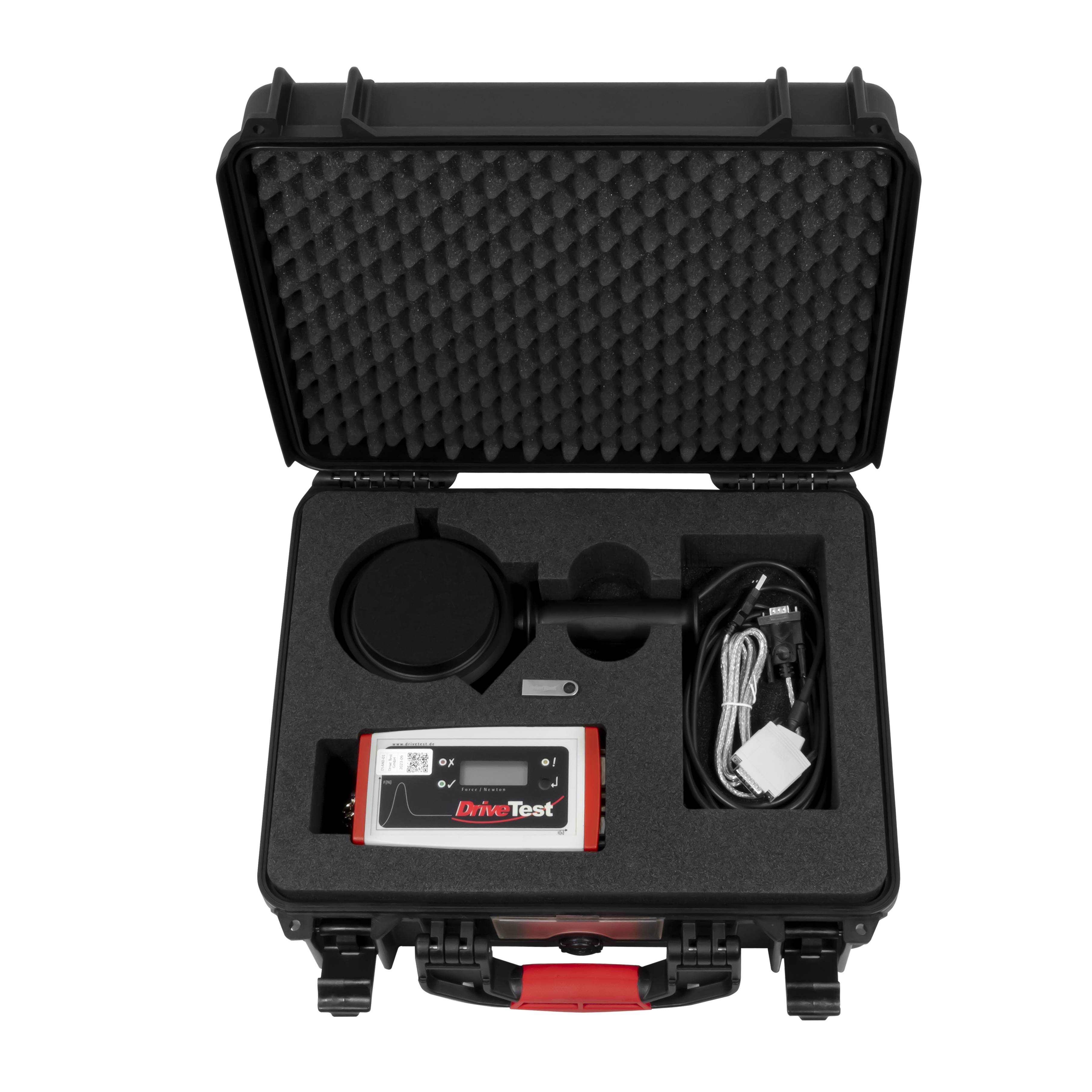

- 1 x closing force meter BIA class 1 with 2.5 m connection cable1 x display device SEB2 separate measured value recording module with LCD and LED display, membrane key and serial interface1 x 9 V battery1 x carrying case with foam insert for the complete delivery package1 x PC connection cable (USB)1 x USB data stick with PC evaluation software PinchPilot and documentation1 x manual1 x ISO calibration certificate
