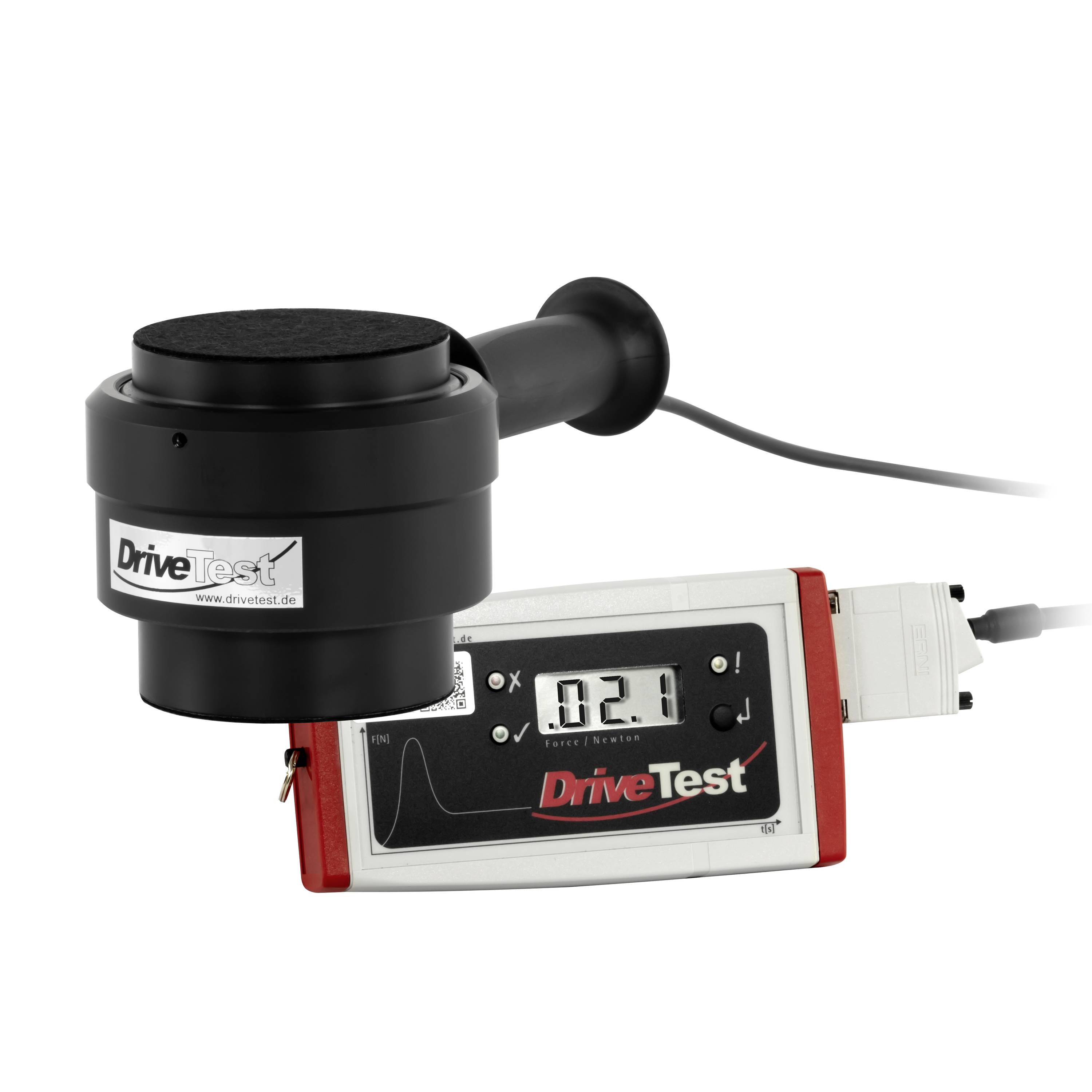

PCE Instruments BIA1BT-SY-10-310 Door force gauge 0 - 310 N ISO standards
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCE Instruments BIA1BT-SY-10-310 Door force gauge 0 - 310 N ISO standards
- Closing force transducerWireless clamping force measurement system for bus and train doors and sliding steps Wireless / APP can be downloaded / incl. Including softwareEasy handling uses experience from many years of useExtensive customer service inhouse calibration service and software updates ensure theUse of current policiesImmediate evaluation according to selected guidelines and standardsProcess safety Integrated test instructions ensure reliable measurementLarge temperature working rangeLanguage Selection Available in DE / EN / ES / FR / IT / CNSupport of relevant standardsUser interface and evaluation in accordance with EN 147522005 VDV 111 2001/85/EGPrecise measurements provided by six-way ball bearing guidanceRobust design Case made from high-strength material for long life in tough conditionsNo more cables than FireWireMeasuring point identification via QR and barcodes (integrated solution)Upgrade possibility for existing devices
Technical specifications
- BIA1 BTMeasuring range 25 310 NAccuracy +/ 3 N or 3% of the measured valueStiffness 10 N/mmResolution 1 NGap width 115 mmDiameter 100 mmMeasurement principle: DMS transducersDetection frequency/rate 250 Hz / 4 msPower supply 5 V DC voltage via USB Max 500 mALithium polymer battery 350 mAhBattery life under full load more than 10 hours(Continuous measurement)Environmental conditionsOperating temperature range 10 to +40 °CStorage temperature range: 40 to +50 °C possibleIdeal +10 to +25 °CHumidity max. 90% relative humidity, non-condensingDimension: 260 x 130 x 115 mmWeight 21 kg.PC analysis software PitchPilotMULTI-LINGUAL (EN IT FR ES)Graphical representation of the force courseCalculation of important parametersEvaluation according to different guidelines (standards)Ability to enter custom policiesProtocol printoutData export (Excel CSV PDF)Force meter APP can be downloaded from the Google play storeForce meter user-friendly APP with automatic guidelines and standardsUpdatesTime saving immediate feedback on the measurement result including simpleReport generationPaperless office reduces paper and the associated costs and protects theEnvironmentCan be used individually Integration of the signature of the customer is possibleSystem requirements software PinchPilot u APP (see tab Software/App)
- Product type
Door force gauge
- Display
Digital
- Force reading range (max.)
310 N
ISO standards
- Power supply (details)
5 V DC
- Dim
(L x W x H) 260 x 130 x 115 mm
- Weight
2100 g
- Resolution (force)
1 N
- Basic accuracy
3 %
- Force reading range
0 - 310 N
- Force reading range (min.)
0 N
- Reading frequency
250 Hz
- Width
130 mm
- Height
115 mm
- Length
260 mm
- Interfaces
RS232C
USB
Serial
USB 2.0 port B
USB 2.0 connector B
USB 2.0 connector A
4-wire
USB 2.0 connector internal 4-pin
1x RS485
1x USB 2.0 (device)
Show more
Documents & Downloads
Datasheet
Datasheet 2813708 PCE Instruments BIA1BT-SY-10-310 Door force gauge 0 - 310 N ISO standards
User & Safety Instructions
User & Safety Instructions 2813708 PCE Instruments BIA1BT-SY-10-310 Door force gauge 0 - 310 N ISO standards
Description

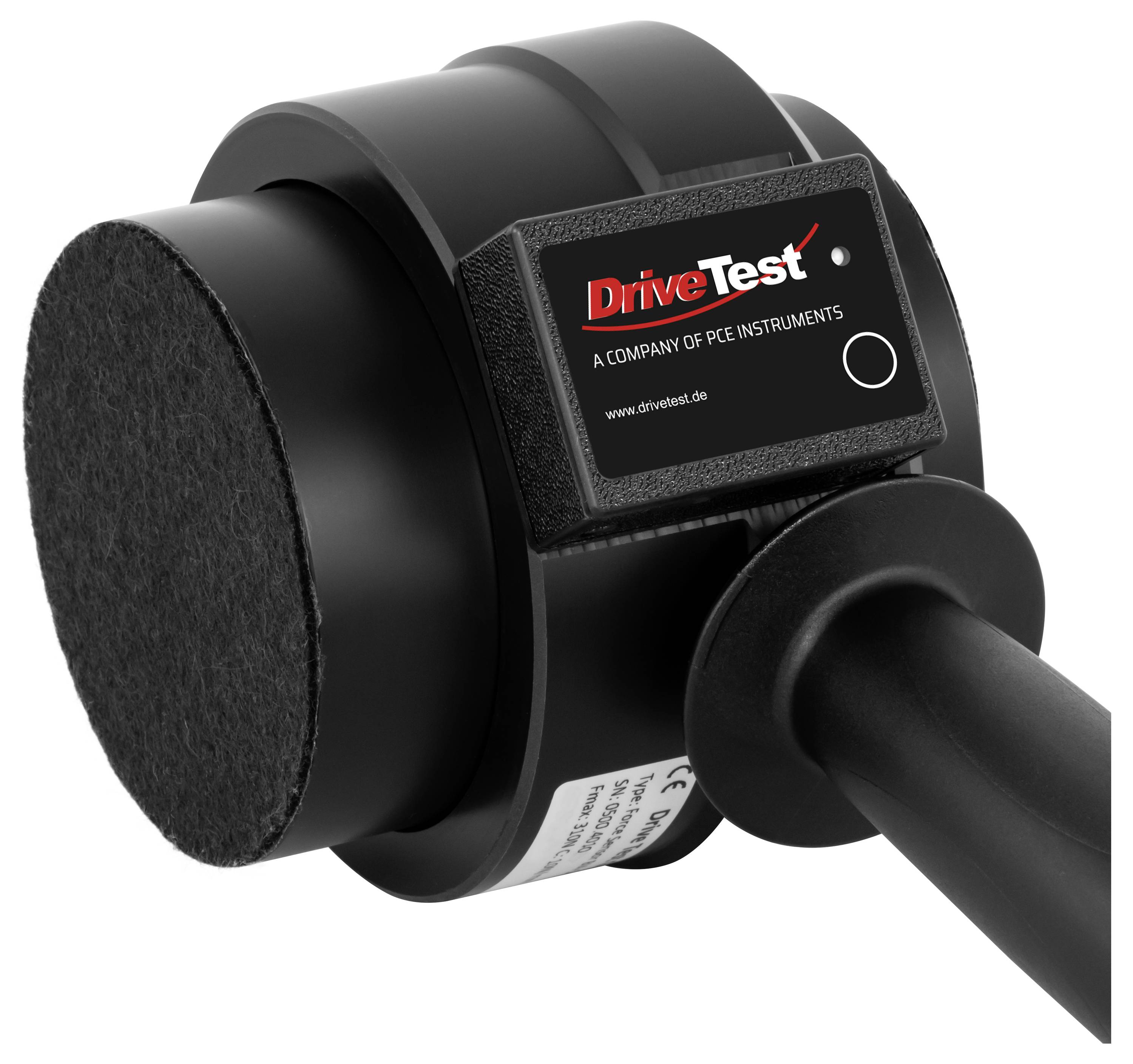

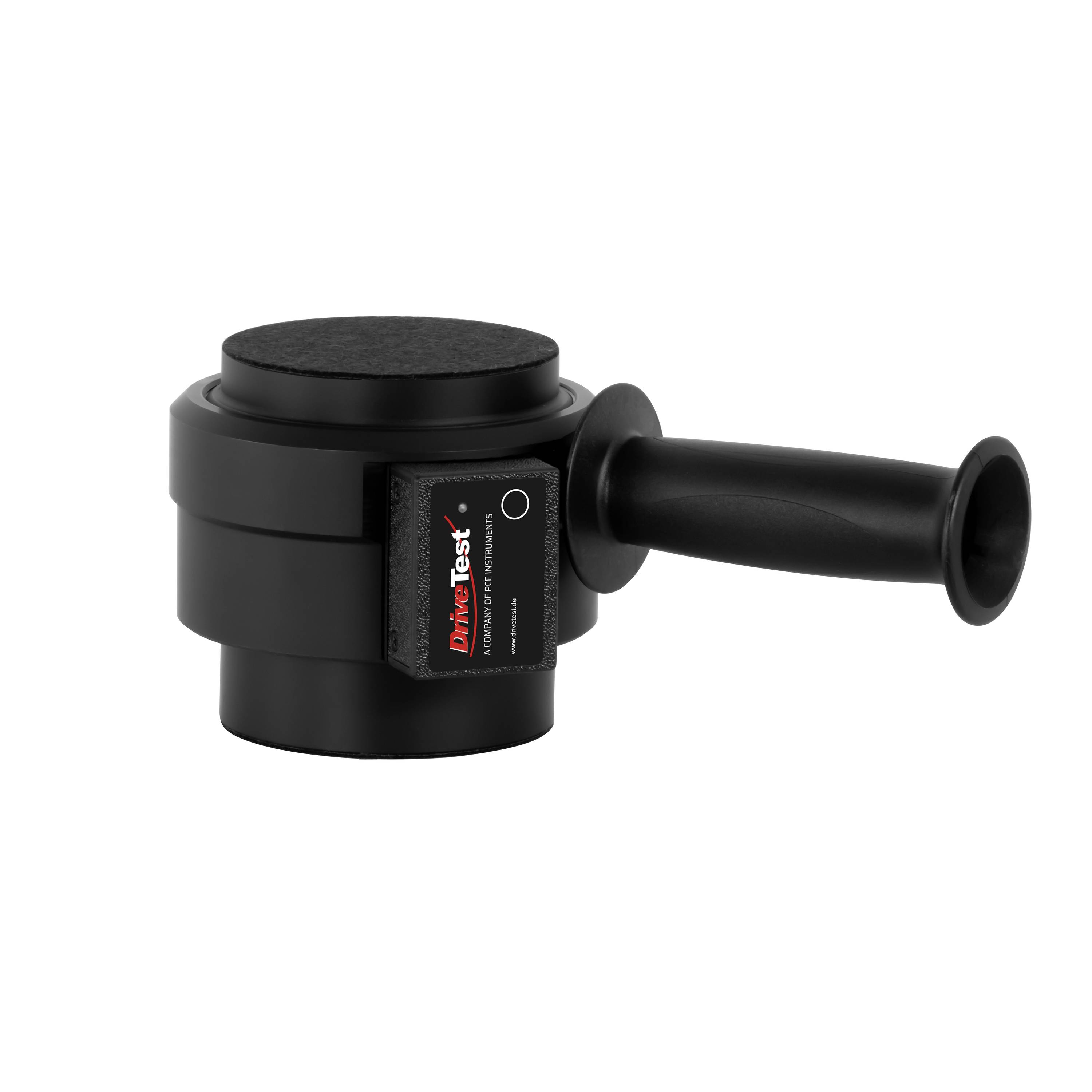

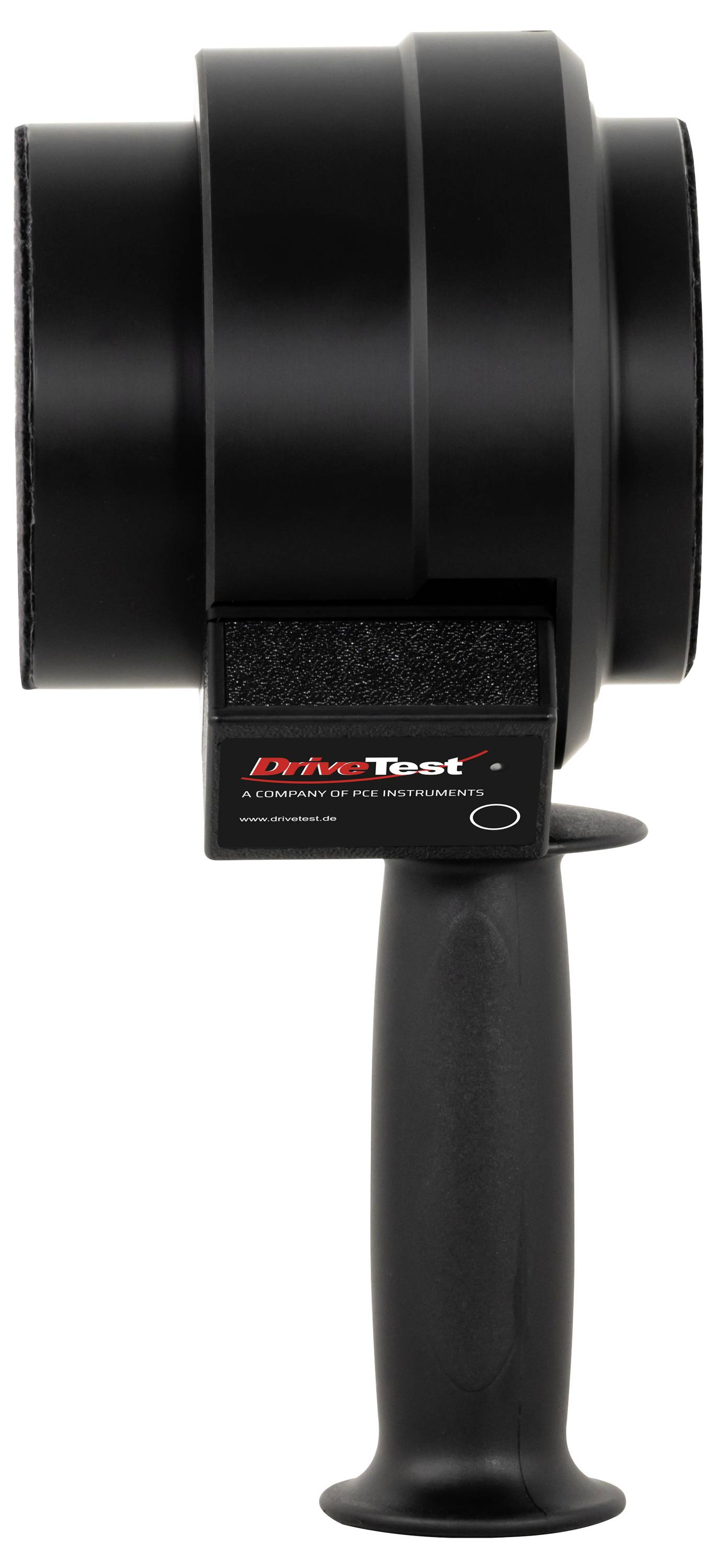

The closing force sensor is a wireless, electronic closing force meter for rail vehicle and bus doors and sliding steps. The clamping force sensor is used to provide a further development of the tried and tested Original BIA class 1 measuring device. It combines the well-known robust construction for years of use in harsh environments and long-lasting precision with the flexibility of a wireless application and a user-friendly APP.This results in many advantages for you in the daily application, such as the automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.
This text is machine translated.
This text is machine translated.
Features
- Easy handling uses experience from many years of useExtensive customer service inhouse calibration service and software updates ensure theUse of current policiesImmediate evaluation according to selected guidelines and standardsProcess safety Integrated test instructions ensure reliable measurementLarge temperature working rangeLanguage Selection Available in DE / EN / ES / FR / IT / CNSupport of relevant standardsUser interface and evaluation in accordance with EN 147522005 VDV 111 2001/85/EGPrecise measurements provided by six-way ball bearing guidanceRobust design Case made from high-strength material for long life in tough conditionsNo more cables than FireWireMeasuring point identification via QR and barcodes (integrated solution)Upgrade possibility for existing devices
Scope of delivery

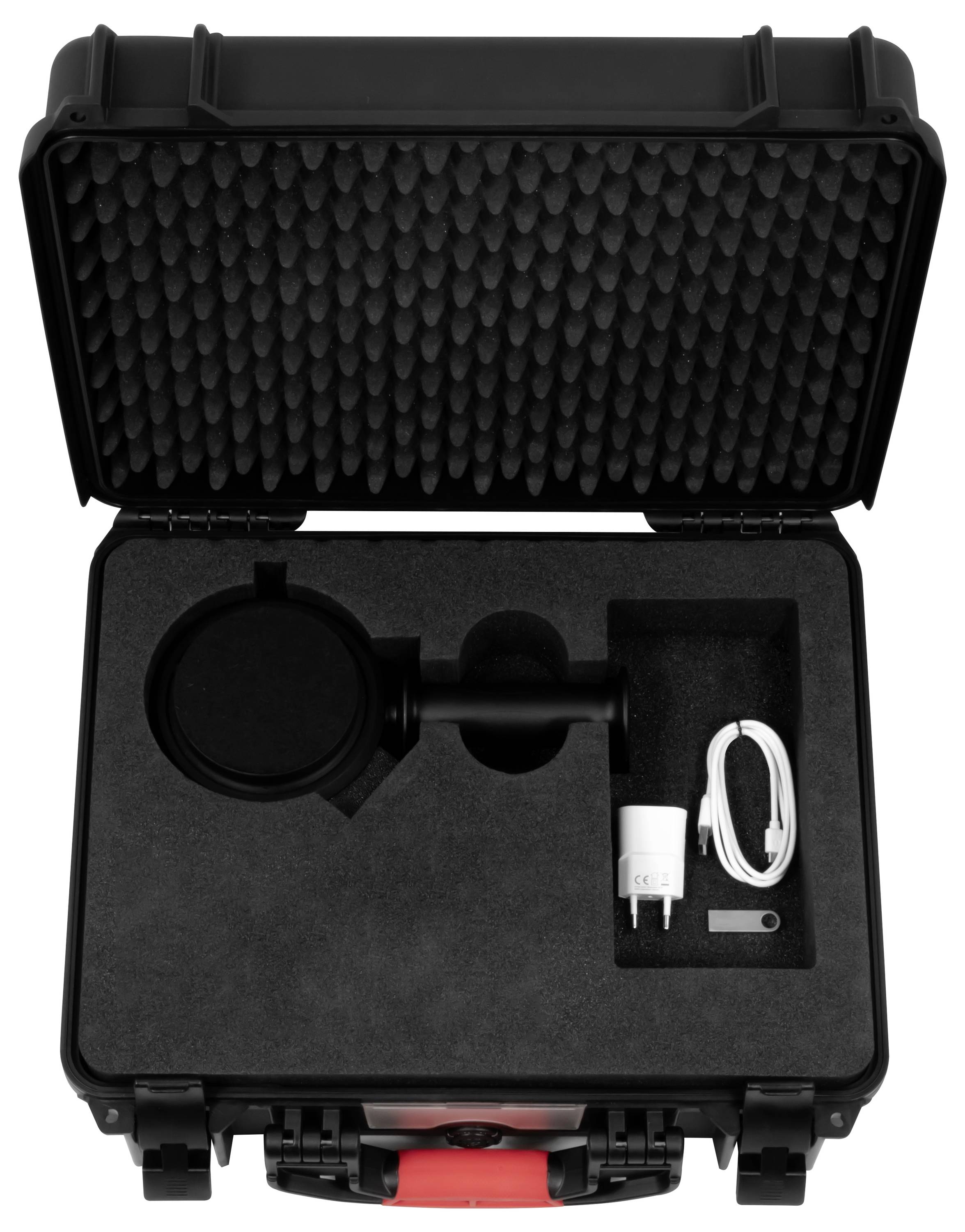

- 1 x closing force transducer BIA-1 BT1 x APP force meter available for download from the Google play store1 x Software PinchPilot (USB-stick)1x USB cable1 x manual1 x Carrying case with foam insert1 x ISO calibration certificate
