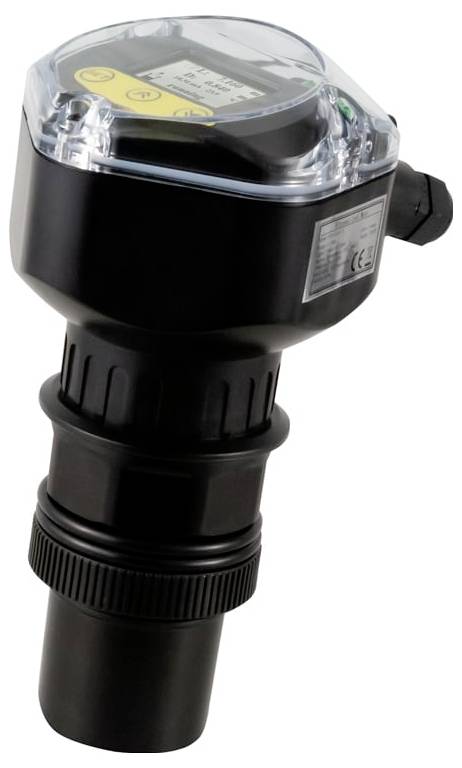

PCE Instruments Fluid level gauge PCE-ULM-10-N24S PCE-ULM-10-N24S 1 pc(s)

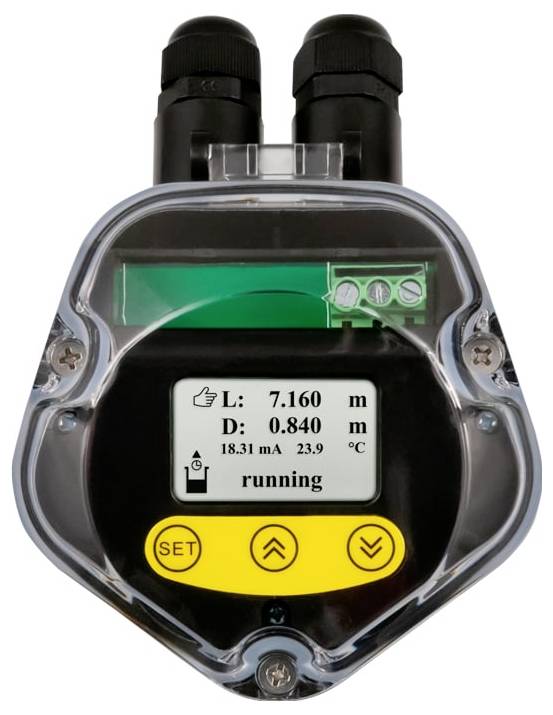

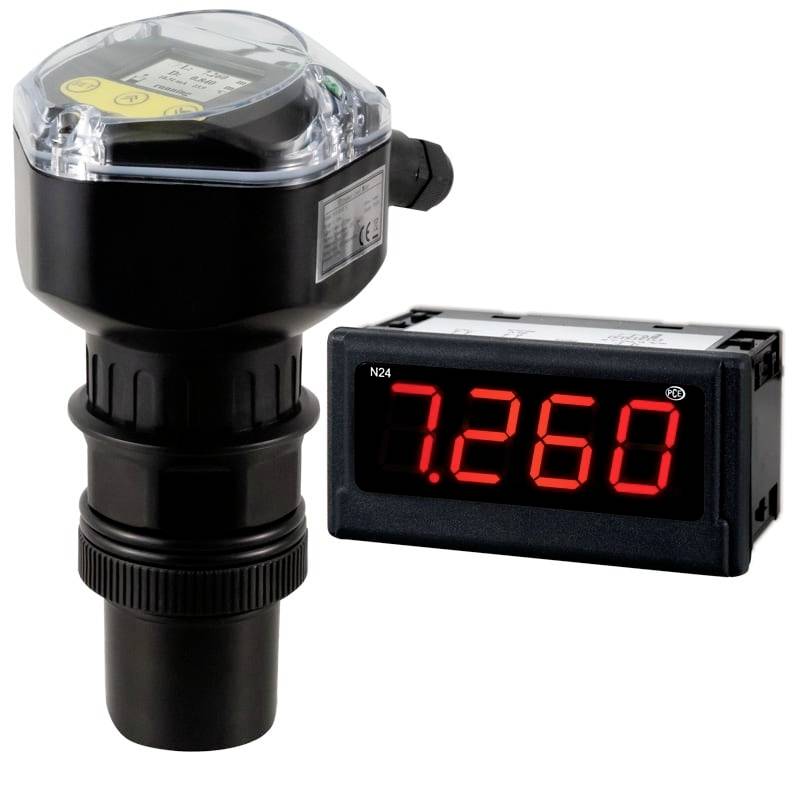

Level indicator with 4 ... 20 mA output signal and external digital display / two-wire connection technology / with ambient temperature display / with level and distance display / measuring depth 10 m The level measuring device is the ideal measuring device for determining the level of a silo. Thanks to the 4 … 20 mA output signal, the level meter can also be connected to the operational process control. This allows the measuring signal to be further processed by the level meter. Thus, the level meter can be used to check whether a silo is still sufficiently filled. The high IP protection class of the level meter guarantees protection of the electrical components in case of a possible water leak. With a measuring range of 10 meters, even larger silos can be monitored with the level meter. The level gauge can indicate the level or distance between the medium and the sensor as a measured value depending on the application. The ambient temperature can also be measured with the level meter. Thanks to its extensive functions and safety aspects, the level meter is an ideal measuring instrument for monitoring silo systems. The process display N24S can be used to evaluate the common and widely used process signal 4...20 mA. The ability to scale the input signal freely allows a very versatile use of this process display. The current measurement result is very easy to read thanks to the large 4-digit LED display. The optional 24 V sensor supply allows direct connection of 2-wire sensors or transmitters was made, which simplifies the use of this process display. The configuration is done via the freely available LPCon software. With the help of the programming adapter PD14 settings can be made or read out from the process display. The configurations created with the software can be saved and called up again.
