PCE Instruments FM100-SY-500-2000 Door force gauge 0 - 2000 N ISO standards
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCE Instruments FM100-SY-500-2000 Door force gauge 0 - 2000 N ISO standards
- Force gaugeClosing force meter for doors and gatesSupport of relevant standards EN 12445/12453 EN 603352DIN V 18650 ASR A17 ETC.Precise measurementsRobust design.Easy handling operation with a single control key or remotely controlled viaMicrosoft® DLL interface or National Instruments® LabView libraryComplete delivery package including high-quality transport case and softwareExtensive professional PCSoftware PinchPilotComprehensive user support Calibration service Standard change service guaranteedThe application of the latest standard versionSoftware support integration into existing software structures possibleExtensive systems can be measured in one pass
Technical specifications
- FM 100Measuring range 0 2000 NAccuracy +/ 3 N or 3% of the measured valueResolution 1 NStiffness 500 N/mmGap width 50 mm80 mm diameterMeasurement principle: DMS transducersMemory 80 measurementsFrequency/rate 500 Hz / 2 msPower supply SEB2 battery 9 Vblock f. 6LR61Battery voltage monitoring YesEnvironmental conditionsOperating temperature range 10 to +40 °CStorage temperature range 40 to +50 °CHumidity not condense max. 90% relative airDimension: 210 x 80 x 50 mmWeight 21 kg.Display device SEB2Data logger unit with LCD display and LED status indicators serial control buttonInterfaceOptional PC-controlled measurement9 V battery supplyReal-time clockMemory for 100 measurementsSensor and PCInterfacePeak value display and effective force displayEvaluation display i O/n i OPC analysis software PitchPilotMULTI-LINGUAL (EN IT FR ES)Graphical representation of the force courseCalculation of important parametersEvaluation according to different guidelines (standards)Ability to enter custom policiesProtocol printoutData export (Excel CSV PDF)System requirements software PinchPilot u APP (see tab Software/App)
- Product type
Door force gauge
- Display
LCD
- Force reading range (max.)
2000 N
ISO standards
- Power supply (details)
9 V DC
- Dim
(L x W x H) 210 x 80 x 50 mm
- Weight
2100 g
- Resolution (force)
1 N
- Basic accuracy
3 %
- Force reading range
0 - 2000 N
- Force reading range (min.)
0 N
- Reading frequency
250 Hz
- Width
80 mm
- Height
50 mm
- Length
210 mm
- Interfaces
RS232C
USB
Serial
USB 2.0 port B
USB 2.0 connector B
USB 2.0 connector A
4-wire
USB 2.0 connector internal 4-pin
1x RS485
1x USB 2.0 (device)
Show more
Documents & Downloads
Datasheet
Datasheet 2813712 PCE Instruments FM100-SY-500-2000 Door force gauge 0 - 2000 N ISO standards
User & Safety Instructions
User & Safety Instructions 2813712 PCE Instruments FM100-SY-500-2000 Door force gauge 0 - 2000 N ISO standards
Description
The force sensor is an electronic measuring device for externally operated doors and gates. A typical application is both final acceptance of new plants and regular inspection. Its uncompromising design combines precision with practical robustness and ensures accurate measurements even after many years of use in harsh environments.For cyclic measurements on systems with several doors and gates, fast, simple implementation is of great importance. DriveTest has developed software for this purpose that drastically reduces the process of the measurements and the effort required for the documentation.With a few operating steps, the measurements of a complete plant can be taken over, printed in tabular form and stored in a database. For integration into an automated test sequence, we provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW).
This text is machine translated.
This text is machine translated.
Features
- Support of relevant standards EN 12445/12453 EN 603352DIN V 18650 ASR A17 ETC.Precise measurementsRobust design.Easy handling operation with a single control key or remotely controlled viaMicrosoft® DLL interface or National Instruments® LabView libraryComplete delivery package including high-quality transport case and softwareExtensive professional PCSoftware PinchPilotComprehensive user support Calibration service Standard change service guaranteedThe application of the latest standard versionSoftware support integration into existing software structures possibleExtensive systems can be measured in one pass
Scope of delivery

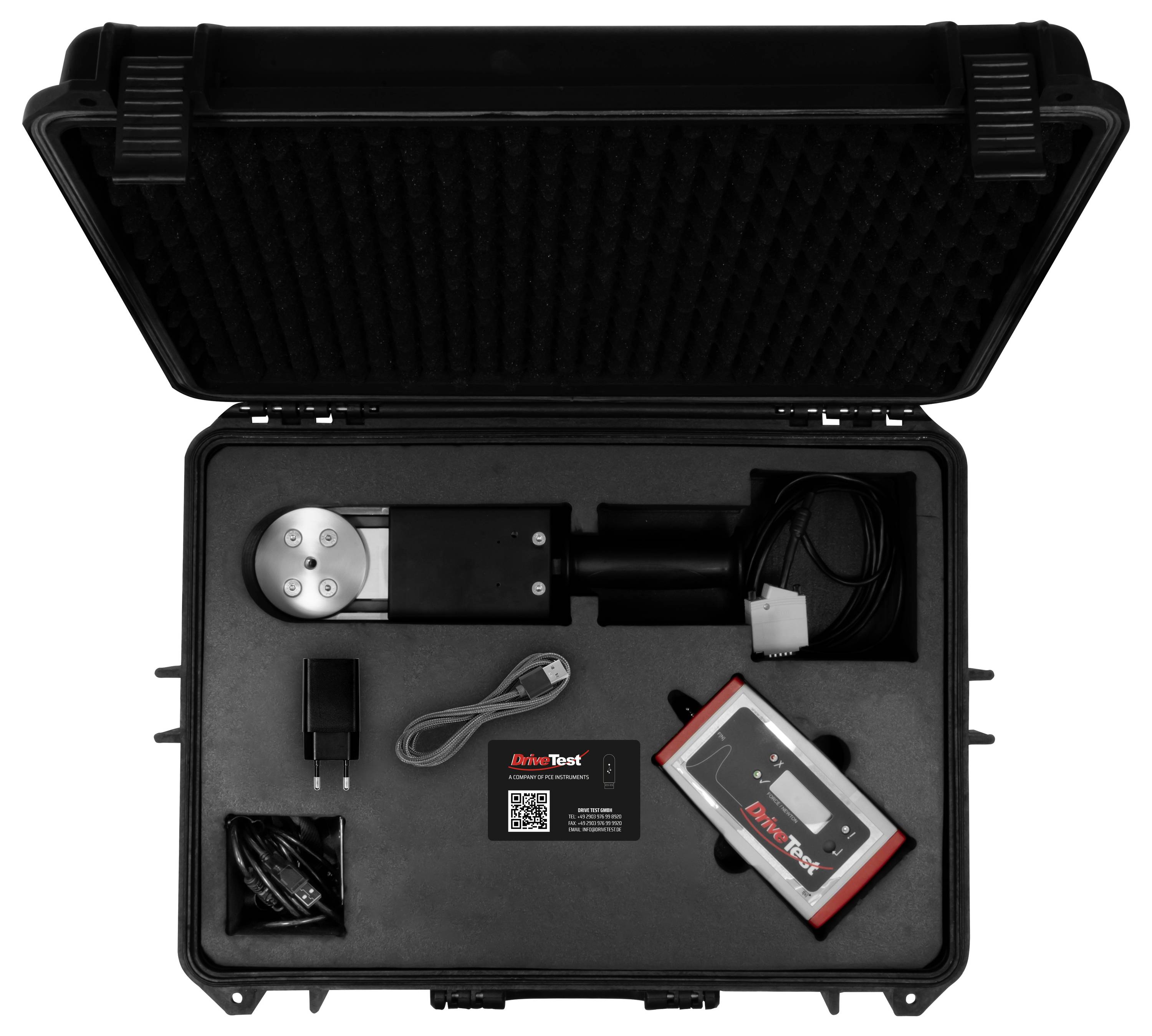

- 1 x force sensors FM100 with 2.5 m connection cable1 x separate measurement recording module (display device SEB2) with LCD display, LED display, membrane key and serial interface1 x 9 V battery1 x carrying case with foam insert for the complete delivery package1 x PC connection cable (USB)1 x USB data stick with PC evaluation software PinchPilot and documentation1 x manual1 x ISO calibration certificate
