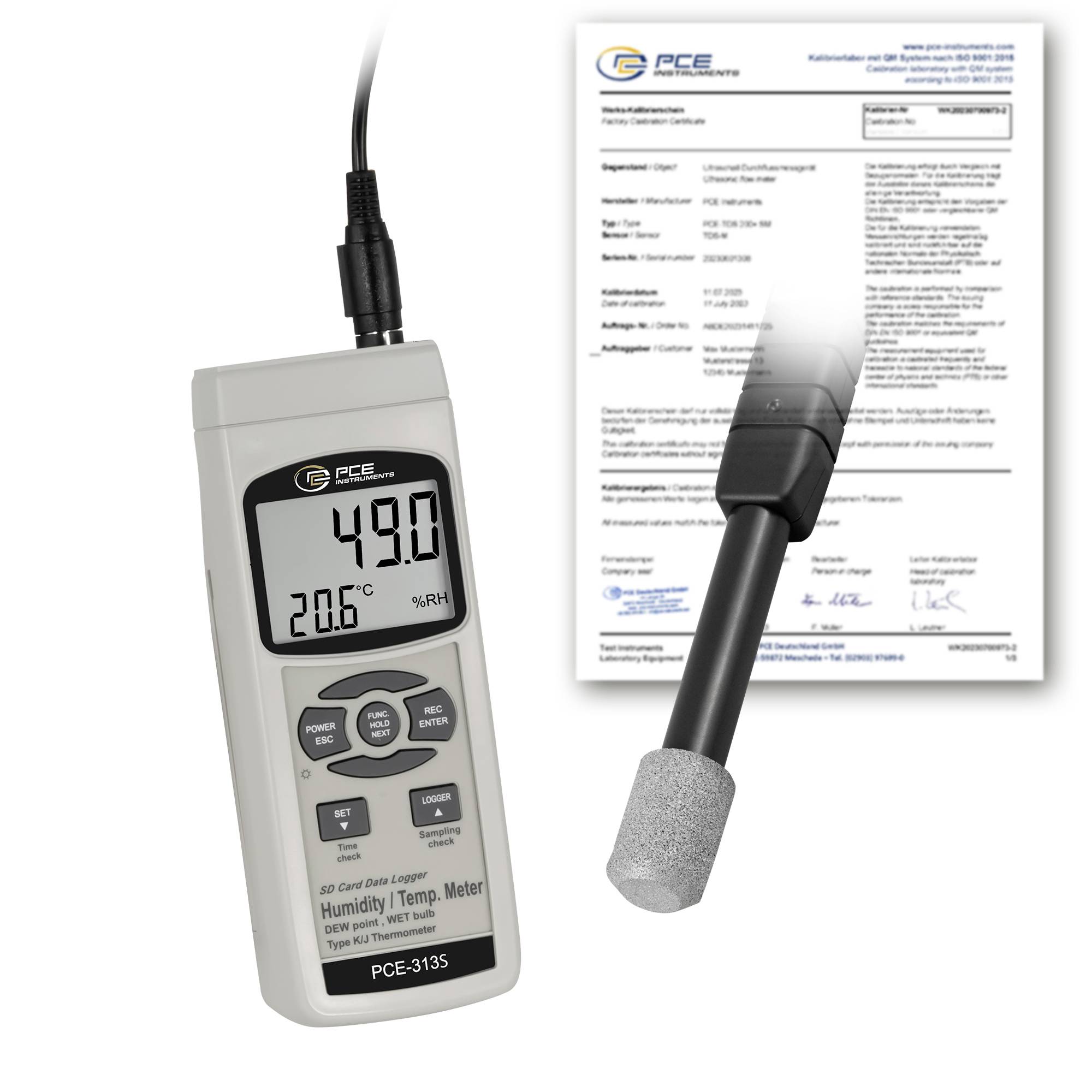

PCE Instruments PCE-313 S-ICA Thermo-hygro data logger Grey PCE-313 S-ICA

This thermo-hygrometer is designed for professional use in the climate measurement measurement technology. The thermo-hygrometer determines the room temperature as well as the relative humidity. By means of the thermocouple connection type-K you have the additional option of determining an optional surface sensor, e.g. a wall temperature.
The internal data memory on the thermo-hygrometer via SD-card (1 ... 16 GB), permits a recording of humidity and temperature measured values at freely selectable measuring rate in direct mode or also as a long-term logger in the data-logger mode. To do this, you can program or preset the thermo-hygrometer using the keyboard and then perform a long-term recording on site (without having to be present at all times). For long-term recordings, we recommend operating the thermo-hygrometer with a power pack (optional).

The values recorded in the data logger function can of course also be transferred to the PC and evaluated (.xls file on the SD card). You can also check the number columns for outliers or create a graphic in the Excel program.

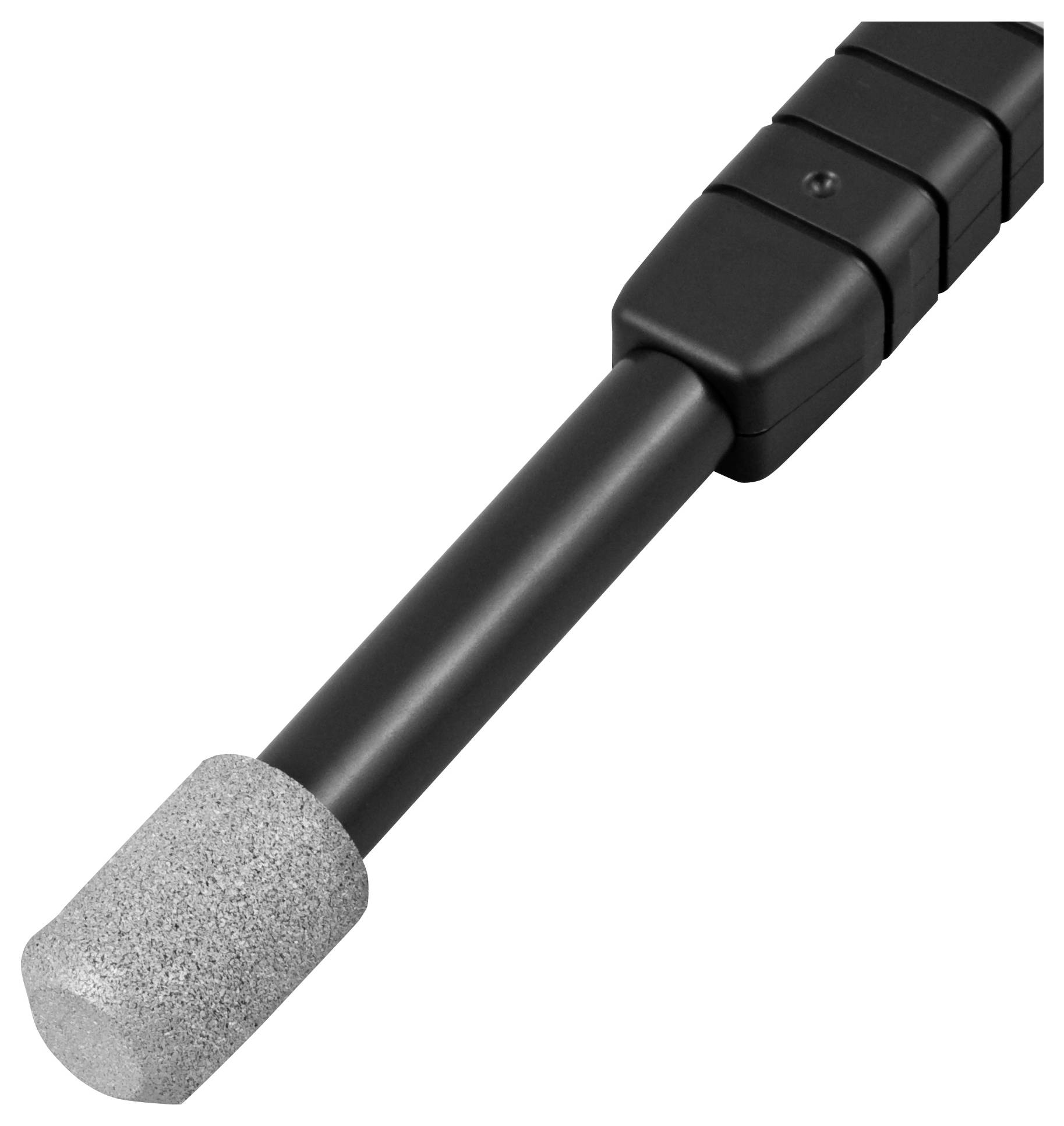

This model is equipped with sintered cap for use in extremely damp environments. This exclusive in-house production has provided the sensor with this sintered cap, which ensures trouble-free use under such extreme conditions without any significant measurement delays. The sintered cap is mounted naturally detachable for control, cleaning and calibration using our calibration set.

A calibration set is also available for the thermo-hygrometer. All humidity sensors tend to drift with the time, as also with this model. In order to counteract the physical properties and to always obtain exact measured values, the thermo-hygrometer can be tested regularly with two standards. The standard humidity values of the chambers are 33% and 75% relative humidity. The calibration procedure can also be carried out by inexperienced persons.

This text is machine translated.
