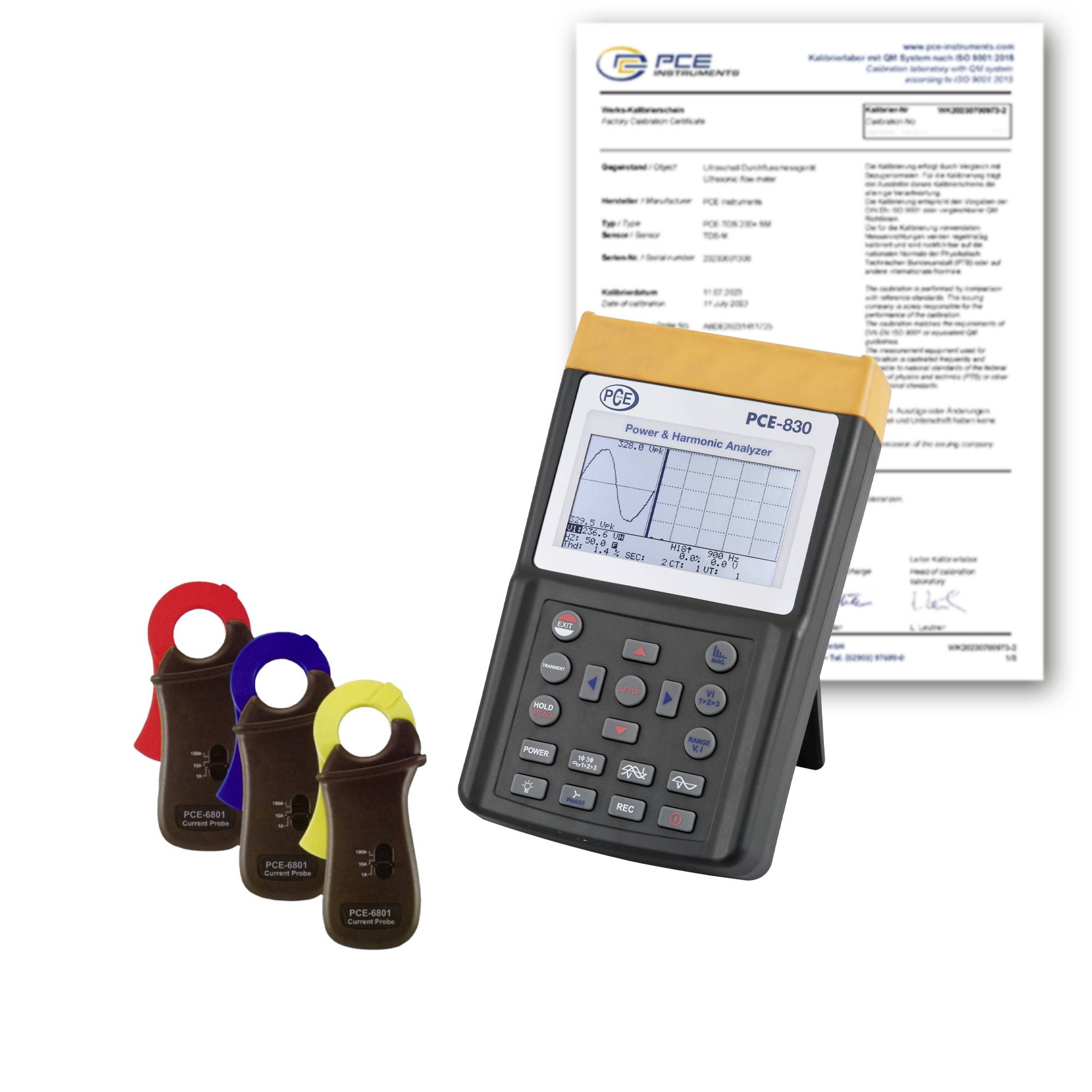

PCE Instruments PCE-830-1-ICA Network diagnostics Calibrated to (ISO standards) 3-phase Power testing, Data logger, Clam

The performance mains interference analyzer serves for a one to three-phase measurement of electrical values in the AC network. Not only the "normal" measurement variables such as voltage, current, frequency, power and energy are determined with the power mains interference analyzer, but also the values required according to EN50160, such as harmonics, intermediate harmonics and asymmetry, are displayed. Faults in the mains such as interruptions, dips, temporary or transient surges (from 16uS duration) can be determined with their corresponding values. The extremely high-contrast, backlit dot matrix LCD display represents up to 35 parameters simultaneously.

Up to 3 current clamps can be adapted simultaneously. In the data logger mode, you can save up to 17470 measured values (3 phases/4 leads) and, in the simplest case, up to 52400 measured values (1 phase/2 conductor), which can be distributed over 85 data records. As such, this power mains failure analyzer can be used optimally for long-term analysis. The measured values collected in the device can be transferred to a PC if desired and evaluated with the associated analysis software. The delivery package includes everything, WAS you need for measurement and evaluation (also software and data cable). The power mains failure analyzer is delivered factory-calibrated, but can optionally also be laboratory-calibrated and certified according to ISO (upon initial order or also upon a recalibration, e.g. annually).
