PCE Instruments PCE-910-ICA Pressure gauge Calibrated to (ISO standards)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE 910 ICA
- Manometer PCE-910-ICA Pressure meter for Liquids and Gases
- 2 models available
- With RS-232 interface and optional software
- Different units can be selected
- Display of under, over and differential pressure
- Min, Max and Data Hold functions
- RS-232 interface
- For air and all non-aggressive gases and liquids
- 15 mm LCD-Display
- Stainless steel hose adapter and hoses included
- Incl. ISO calibration certificate
Technical specifications
- PSI range ±29.00, resolution 0.01
- Mbar range ±2000, resolution 1
- InH2O range ±802.0, resolution 0.5
- MH2O range ±20.40, resolution 0.01
- InHg range ±59.00 Resolution 0.02
- MmHg Range ±1500 Resolution 1
- Torr Range Resolution -
- Pa / kPa range - resolution -
- ATM range ±1.974 Resolution 0.001 kg/cm2 range ±2.040 Resolution 0.001
- Accuracy ±2% (full range)
- Repeatability ±1 %
- Measurement sequence 0.8 s.
- Min. Max. Peak hold yes
- Interface RS-232
- Supply 1 x 9 V block battery PP3
- Housing material plastic
- Housing dimensions 180 x 72 x 32 mm
- Weight 210 g.
- Attention: Exceeding the max. Pressure range destroys the pressure gauge (the sensor)
- Power supply (details)
9 V
- Product type
Pressure gauge
- Operating voltage
9 V
ISO standards
- Print resolution
1 mbar
- Accuracy
±2 % %
- Dim
(L x W x H) 72 x 32 x 180 mm
- Weight
210 g
- Resolution
1 mbar
- Accuracy
2 %
- Width
32 mm
- Height
180 mm
- Length
72 mm
Documents & Downloads
Datasheet
Datasheet 3812991 PCE Instruments PCE-910-ICA Pressure gauge Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812991 PCE Instruments PCE-910-ICA Pressure gauge Calibrated to (ISO standards)
Description
The digital pressure measuring device is designed for use in difficult environments. These professional pressure gauges are particularly suitable for measurement at hydraulic or pneumatic systems. The high-performance instrument with microprocessor control ensures extreme accuracy and high reliability. With short response time, and dust and splash-proof casing, the Ideal pressure gauge can be used in preventive maintenance.
All models of the have a silicone insert, which protects the pressure gauge and/or its sensor system from the ingress of liquids. The meter is delivered with factory calibration, but can be laboratory calibrated and equipped with an ISO-9000 certificate. The calibration includes a test log, which is issued on the name of your company. This allows you to include the pressure measuring device in your in-house test equipment pool in accordance with ISO.
This text is machine translated.
All models of the have a silicone insert, which protects the pressure gauge and/or its sensor system from the ingress of liquids. The meter is delivered with factory calibration, but can be laboratory calibrated and equipped with an ISO-9000 certificate. The calibration includes a test log, which is issued on the name of your company. This allows you to include the pressure measuring device in your in-house test equipment pool in accordance with ISO.
This text is machine translated.
Features
- Different units can be selected
- PSI, mbar, inH2O, mH2O, inHg, mmHg, ATM, kg/cm2
- Display of under, over and differential pressure
- RS-232 interface
- For air and fluid
- ISO-certificate included

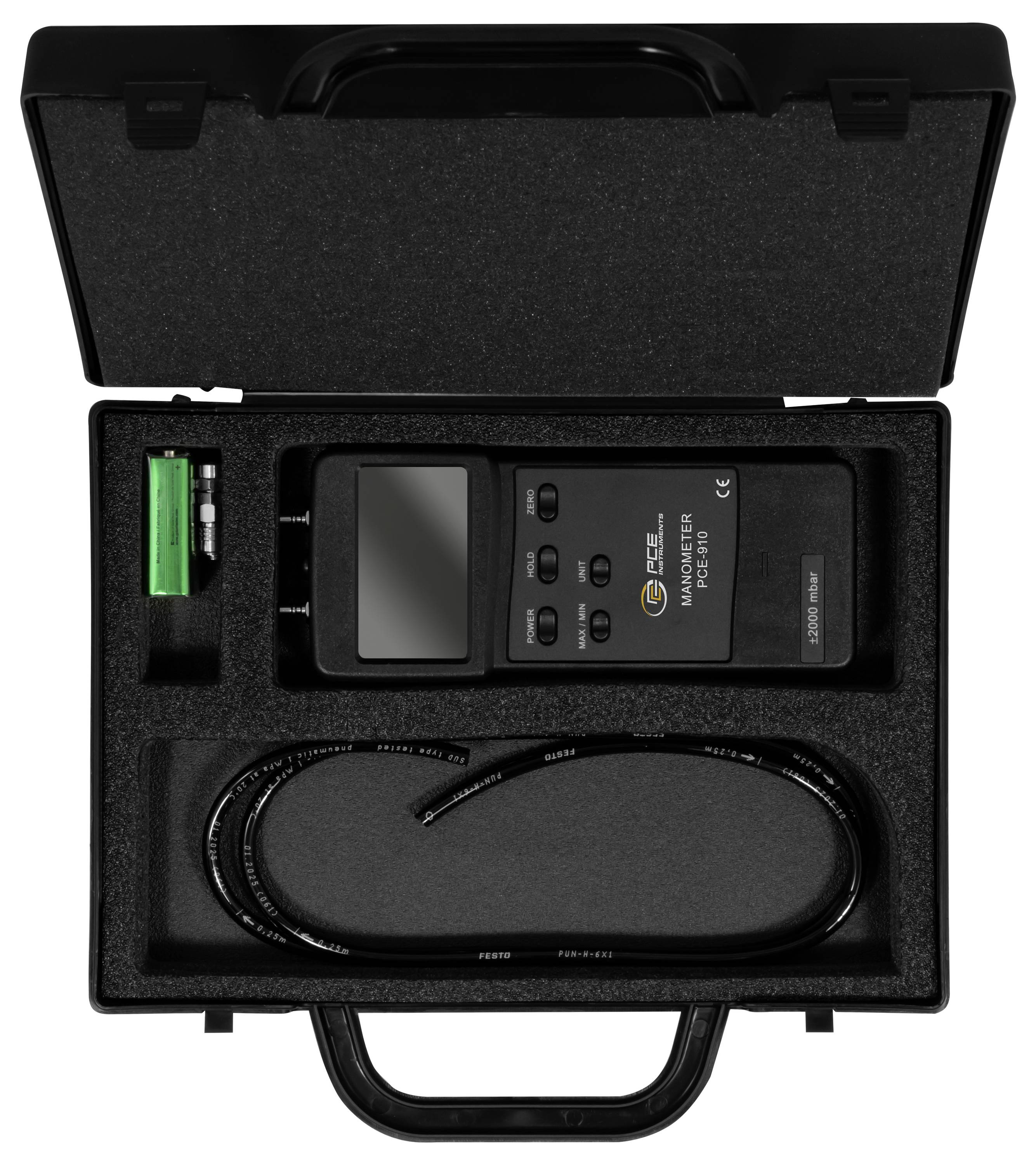

Scope of delivery
- 1 x manometer PCE-910-ICA
- 1 x battery
- 2 x special stainless steel hose adapter
- 1 x 1m silicon hose
- 1 x transport case
- 1x user manual
- Incl. ISO calibration certificate
Hints
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-910-ICA Professional pressure gauge including ISO calibration certificate designed as a digital pressure measuring instrument for use in difficult environments - is particularly suitable for measuring hydraulic/pneumatic systems | digital manometers | air/fluid pressure measuring device | HVAC measuring device | air/fluid difference manometer
