Name: PCE Instruments PCE-CSM 10-ICA Colorimeter
Brand: PCE Instruments
SKU: 3812468

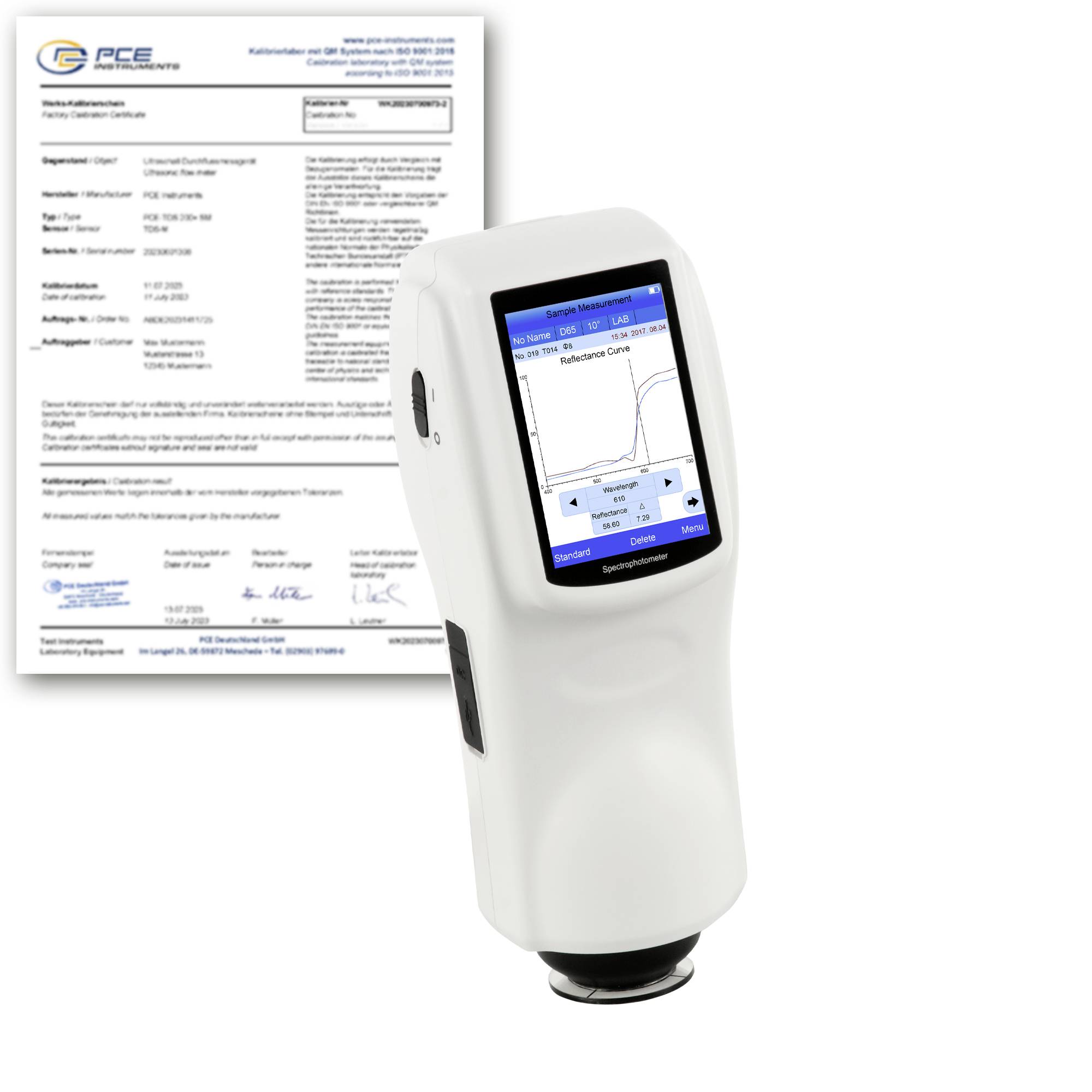

Handheld white calibration device with touchscreen showing a reference curve, in front of a PCE calibration certificate document.<br>

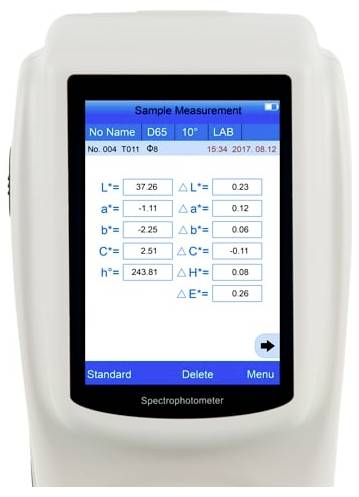

Handheld spectrophotometer displaying sample measurement results on a color screen, including LAB values and delta values.<br>

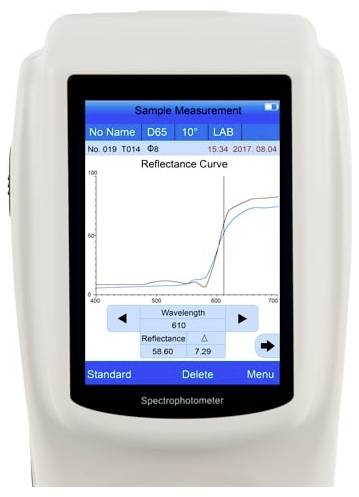

Handheld spectrophotometer screen showing a reflectance curve chart, with wavelength 610 and a measured reflectance value of 58.60.

Close-up of a white security camera with a black lens against a plain background.

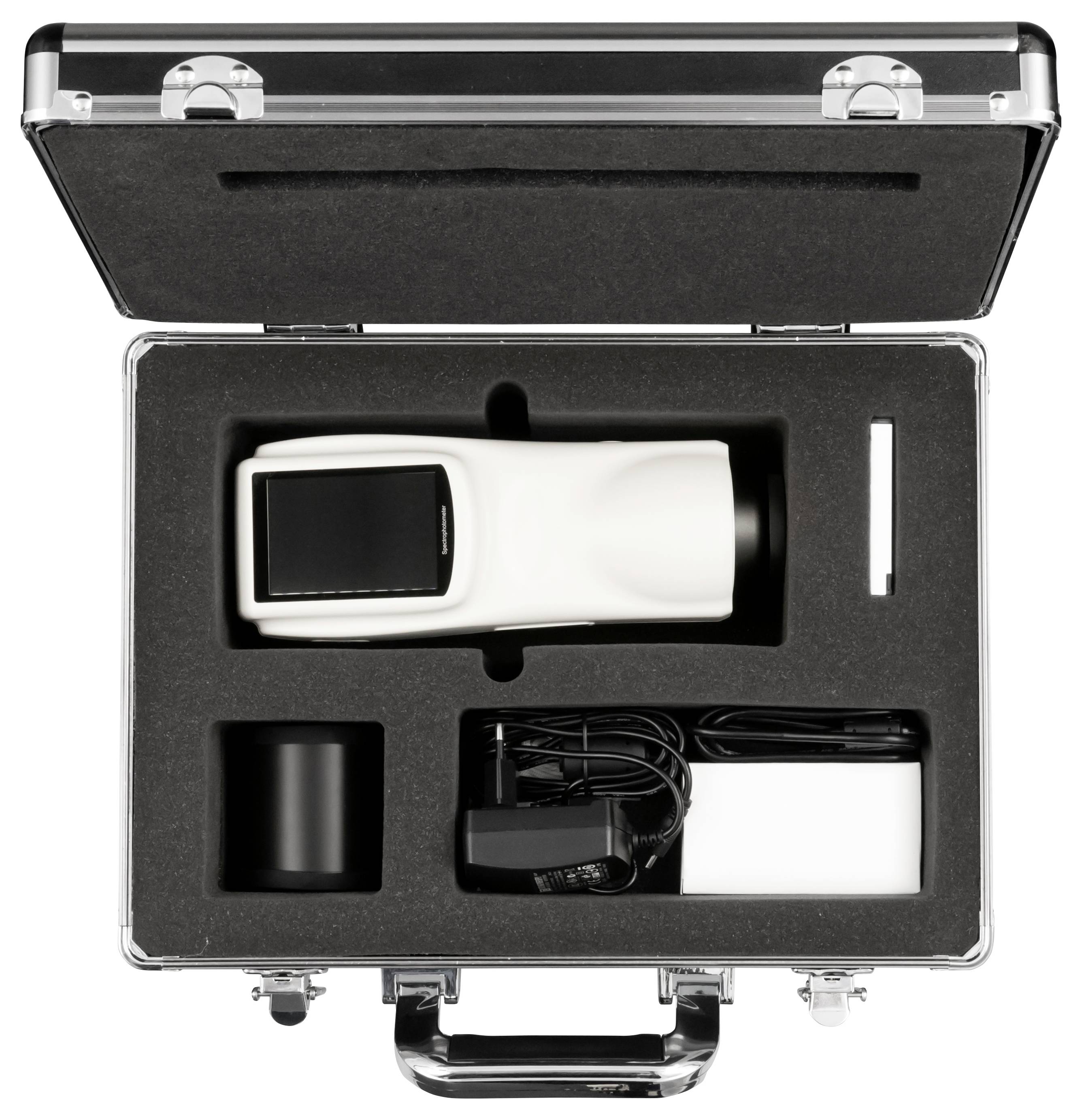

Open hard case with foam insert holding a handheld measuring device, charger, cables, and accessories neatly arranged inside.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments Spectrophotometer PCE-CSM 10-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CSM 10-ICA
CIE LAB, XYZ, Yxy, LCH, CIE LUV, LAB & WI & YI
Black and white calibration
Determination of reference values and samples
Touch-screen display
High accuracy
Can be used on many surfaces
Simple user interface
Included software
Incl. ISO calibration certificate

Technical specifications

General Technical Data
Display type TFT touch-screen
Display size 3.5 inches
Storage medium Internal memory
Memory capacity: 25000 values
Storage capacity (additional information) 1000 standard values, 25000 samples
Interface Mini-USB, RS232
Sensor silicon photodiode
Light source combined LED sources,Type of light: D65, A, C, D50, D55, D75, F1, F2 (FWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10(TPL5), F11(TL84) F12(TL83/U30)
Measurement time 1.2 s.
Color spaces XYZ, Yxy, LCH, CIE LUV, HunterLAB, WI (whiteness), YI (yellowish grade)
Color difference ΔE*AB,ΔE*UV,ΔE*94,ΔE*CMC (2:1),ΔE*CMC (1:1),ΔE*CMC (l:c),CIE2000 ΔE*00,ΔE (h)

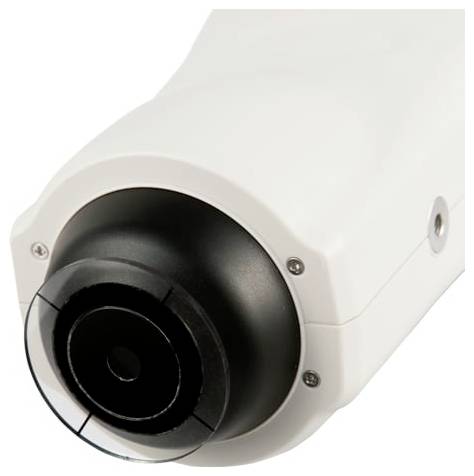

Measurement hole Ø 8 mm
Measuring geometry 8°/d
Wavelength range 400 ... 700 nm
Observer 2°, 10°
Calibration Selectable between white and black calibration
Menu language Chinese, English (US), English (GB)
Protection class (device) IP20
Voltage supply: 5 V DC / 2 A
Connector type for device Euro plug
Battery/battery 1 x 3.7 V internal , lithium-ion battery
Capacity 3200 mAh
Dimensions ( L x W x H ) 230 x 90 x 77 mm
Weight 600 g

Product type: Colorimeter

Factory colour: White

Width: 77 mm

Height: 230 mm

Weight: 600 g

Dim: (L x W x H) 90 x 77 x 230 mm

Connector: RS232

Features: Software download

Length: 90 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812468 PCE Instruments PCE-CSM 10-ICA Colorimeter

User & Safety Instructions

User & Safety Instructions 3812468 PCE Instruments PCE-CSM 10-ICA Colorimeter

Description

The spectrophotometer is specifically designed for quality assurance and has a high level of accuracy.

The spectrophotometer allows products to be tested for their color properties at any time. The spectrophotometer allows you to select different color spaces for the measurements (CIE LAB, XYZ, Yxy, LCH, CIE LUV, LAB & WI & YI) After a measurement, the result can serve as a reference value and further sample values can be determined with the spectrophotometer. These show the deviation from the reference value in addition to the actual measurement result.

The measured values are automatically saved by the spectrophotometer. Up to 1000 reference values and up to 25000 sample values can be stored. It is also possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the scope of delivery.
