Name: PCE Instruments PCE-CSM 20-ICA Colorimeter
Brand: PCE Instruments
SKU: 3812470

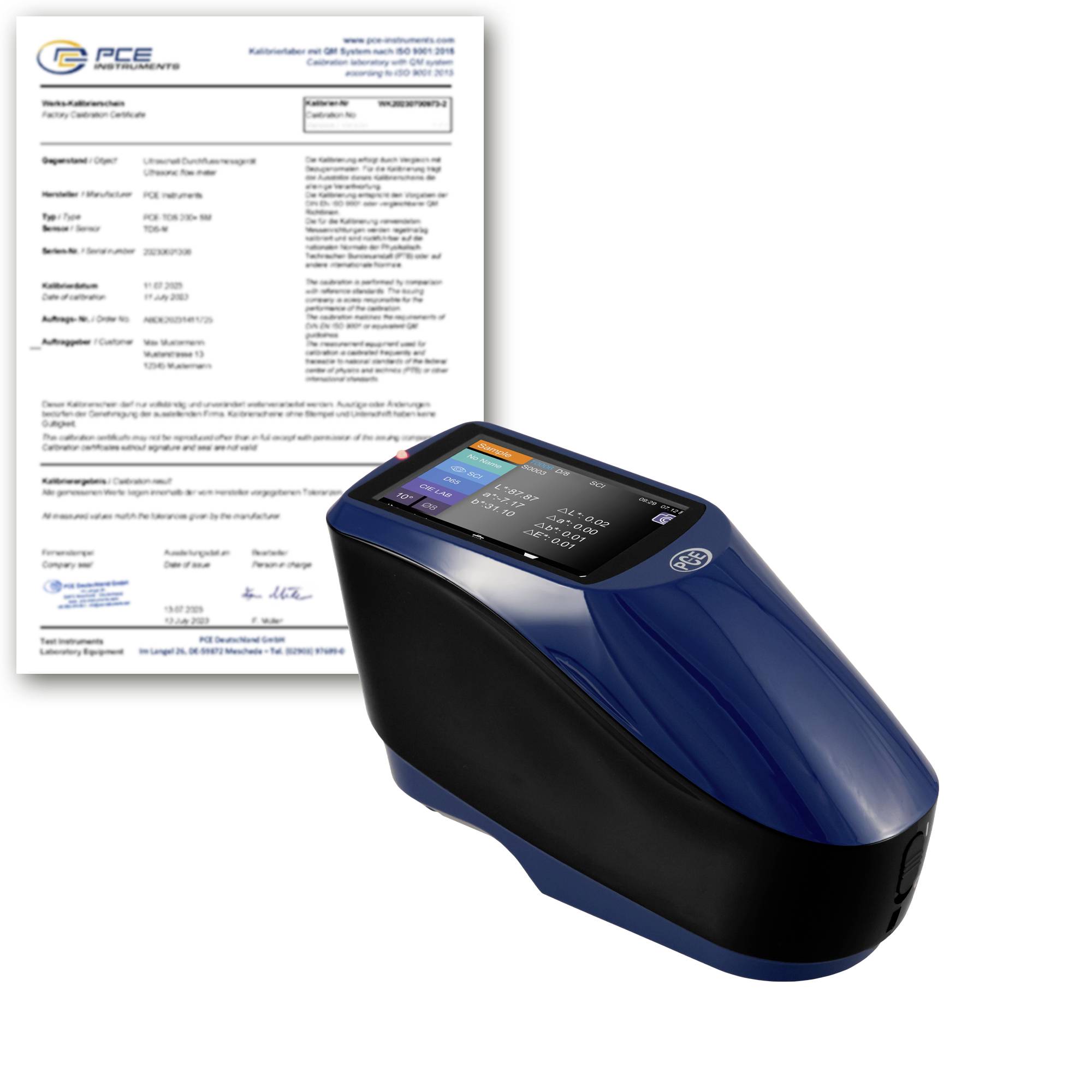

Handheld blue-and-black testing device shown in front of a printed calibration certificate, suggesting certified measurement equipment.<br>

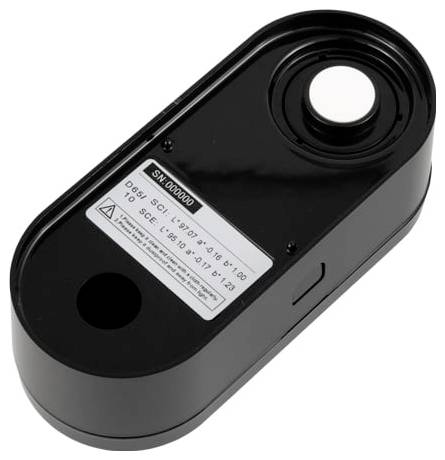

Black handheld device with two circular openings and a label on top, shown on a white background.

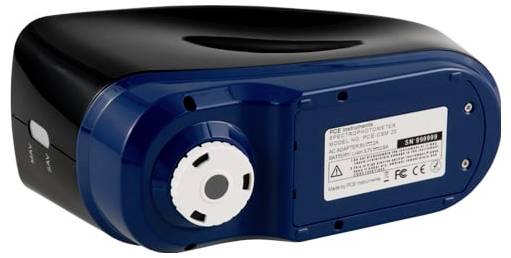

Blue and black electronic device with a circular white connector port and product label on the side, shown on a white background.

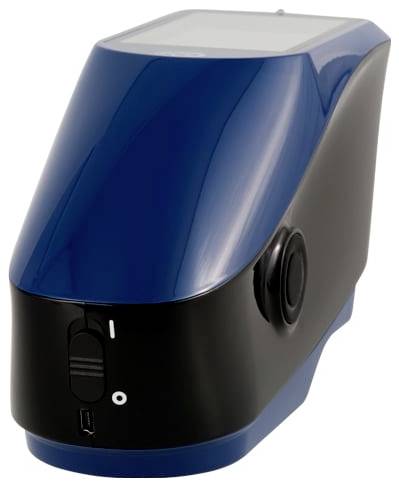

Blue and black desktop electronic device with a sloped front, side knob, and front port, shown on a white background.

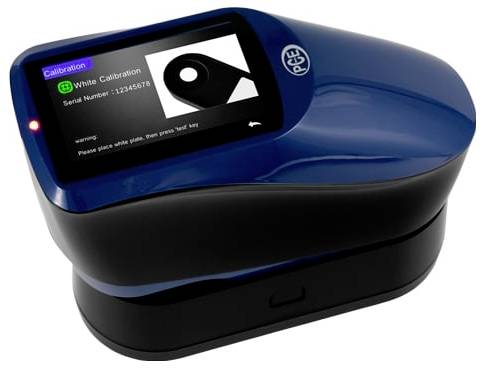

A handheld color calibration device showing a 'White Calibration' screen with serial number and instructions to place the white plate.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments grid spectrometer PCE-CSM 20-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CSM 20-ICA
Long battery life
USB cable for data transfer
Handy device
Device software included in delivery
High-quality finish
High accuracy and stability
Individual and average measurement
Incl. ISO calibration certificate

Technical specifications

General Technical Data
Display type TFT color display
Display size 3.5 inches
Storage medium Internal memory
Memory capacity: 20000 values
Storage capacity (additional information) 2000 standard values, 25000 samples
Interface Mini-USB
Sensor CMOS
Light source LED – lighting system, UV – light, type of light D65, A, C, D50
Measurement time 2.6 s.
Colour rooms XYZ, Yxy, LCH, CIE LUX
Color difference ΔE*AB,ΔE*UV,ΔE*94,ΔE*CMC(2:1),ΔE*CMC(1:1),ΔE*00v,ΔE(Hunter)
Measurement hole Ø 8 mm
Measuring geometry 8°/d
Specular Component Included (SCI), Specular Component Excluded (SCE)
Wavelength range 400 ... 700 nm
Observer 2°, 10°
Calibration Selectable between white and black calibration
Menu language English (US), Chinese, English (GB)
Protection class (device) IP20
Voltage supply: 5 V DC / 2 A
Connector type for device Euro plug
Battery/battery 1 x 3.7 V internal , lithium-ion battery
Capacity 3200 mAh
Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 184 x 77 x 105 mm
Weight 600 g

Product type: Colorimeter

Factory colour: Blue-black

Width: 77 mm

Height: 105 mm

Weight: 600 g

Dim: (L x W x H) 184 x 77 x 105 mm

Connector: USB

Features: Software included

Length: 184 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812470 PCE Instruments PCE-CSM 20-ICA Colorimeter

User & Safety Instructions

User & Safety Instructions 3812470 PCE Instruments PCE-CSM 20-ICA Colorimeter

Description

The mesh spectrometer, like any other spectrometer, is responsible for color measurement. The grid spectrometer serves as a mobile handheld device for fast measurement directly at the test piece. Long battery life, long bulb life and handy design make it easy to use. The powerful rechargeable battery enables up to 5000 measurements.

The bulb used on the grid spectrometer is even designed to perform three million measurements. The high-quality processing of the grid spectrometer is particularly noticeable at first glance. When working with the grid spectrometer, the high measurement accuracy of the instrument is then important. A mesh spectrometer is often used in production and quality assurance. It is important that a constant quality is always produced and individual parts not only look similar but also the same. High measurement quality is of paramount importance.

Depending on the model, wireless data transmission to a computer is possible (PCE-CSM 21 and PCE-CSM 22). All models also support USB data transfer. A suitable software and a USB cable are included in the delivery.
